Piezo button with red / green LEDs and sounder

£110.85 Ex Vat
In stock
Product code
S1718SP

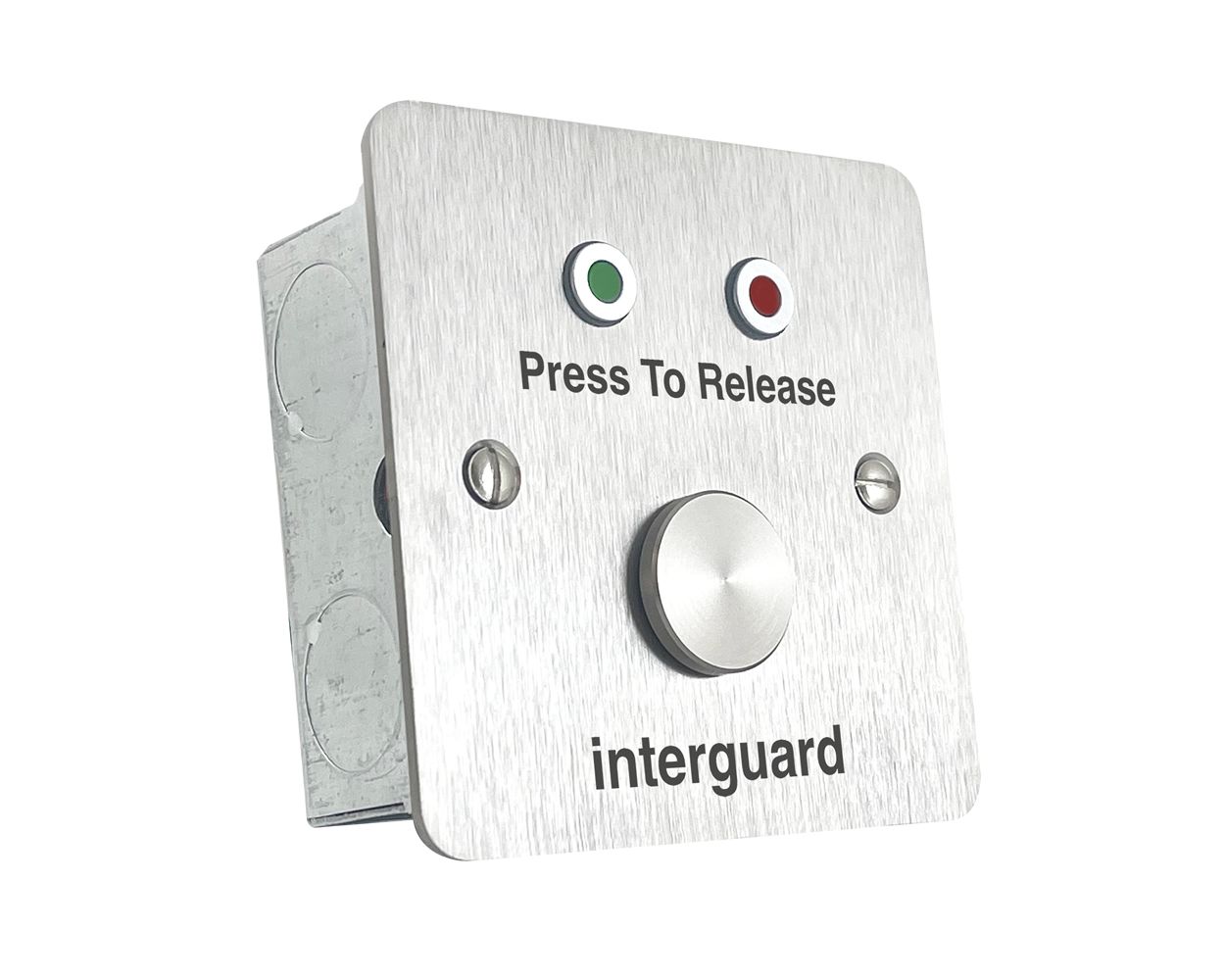

Stainless Steel door status indicator with sounder, request to release vandal resistant piezo push button, Red and Green LEDs.

Door Status indicator with sounder, vandal resistant piezo push button together with one red and one green LED on a single gang stainless steel plate lasered 'Press To Release'.
Specifically designed for use with our range of Interguard door interlock controllers. When used with an Interguard, the LEDs indicate the status of the relevant door.
The piezo push button has no moving parts and is therefore not susceptible to damage from cleaning fluids.

Specification
  • Led Current - 20mA per LED@ 12vdc
  • Switch Contacts - Momentary N.O. 200mA @24vdc
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x red LED 1 x green LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
  • Material - 316 Grade Stainless Steel
  • Ideal for hygienic environments
  • Text - Permanently laser marked
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mount using S0610-38
  • Weight - 0.26kg
  • IP Rating - IP65 front side contact area
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1718SP
Associated Product Codes S1718SP
Warranty 3 Years
- Installation Instructions for S1718SP
- Product Information Sheet for S1718SP
