Door status indicator, Red/ Green LEDs and sounder

£54.19 Ex Vat
In stock
Product code
S1717S

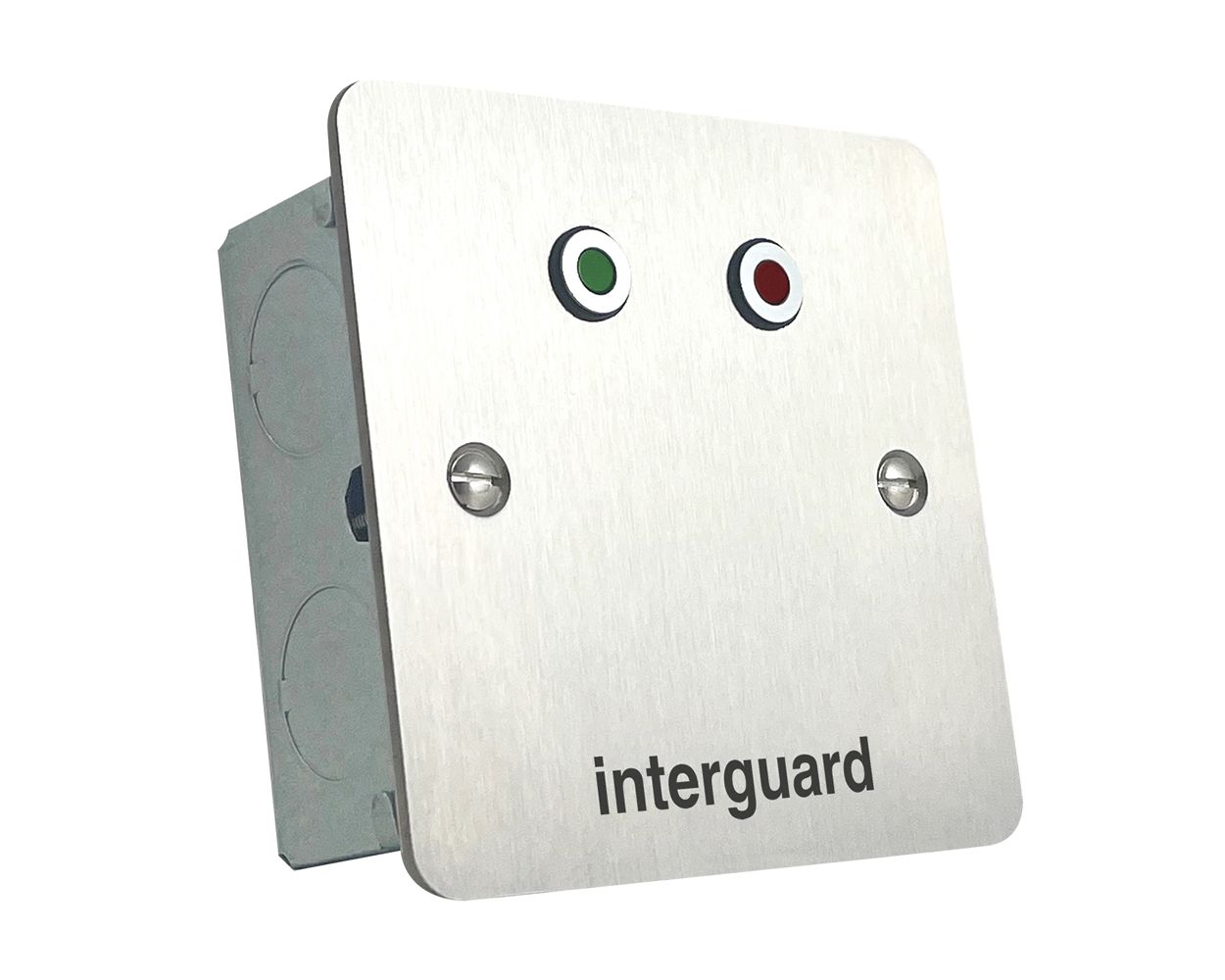

Stainless Steel door status indicator and sounder with Red and Green LEDs

Door Status indicator with sounder, one red and one green LED on a single gang stainless steel plate. Designed specifically for use with our Interguard range of door interlock controllers. When used with an Interguard, the LEDs indicate the status of the relevant door.

Specification
  • LED Current - 20mA per LED@ 12vdc
  • Switch Contacts - N/A
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x red LED 1 x green LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
  • Material - 316 Grade Stainless Steel
  • Text - Permanently laser marked
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Weight - 0.26kg
  • IP Rating - IP65 front side contact area
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1717S
Associated Product Codes S1717S
Warranty 3 Years
- Installation Instructions for S1717S
- Product Information Sheet for S1717S
