8 way LED Indicator unit with sounder
£78.93
Ex Vat
In stock
Product code
S1782P

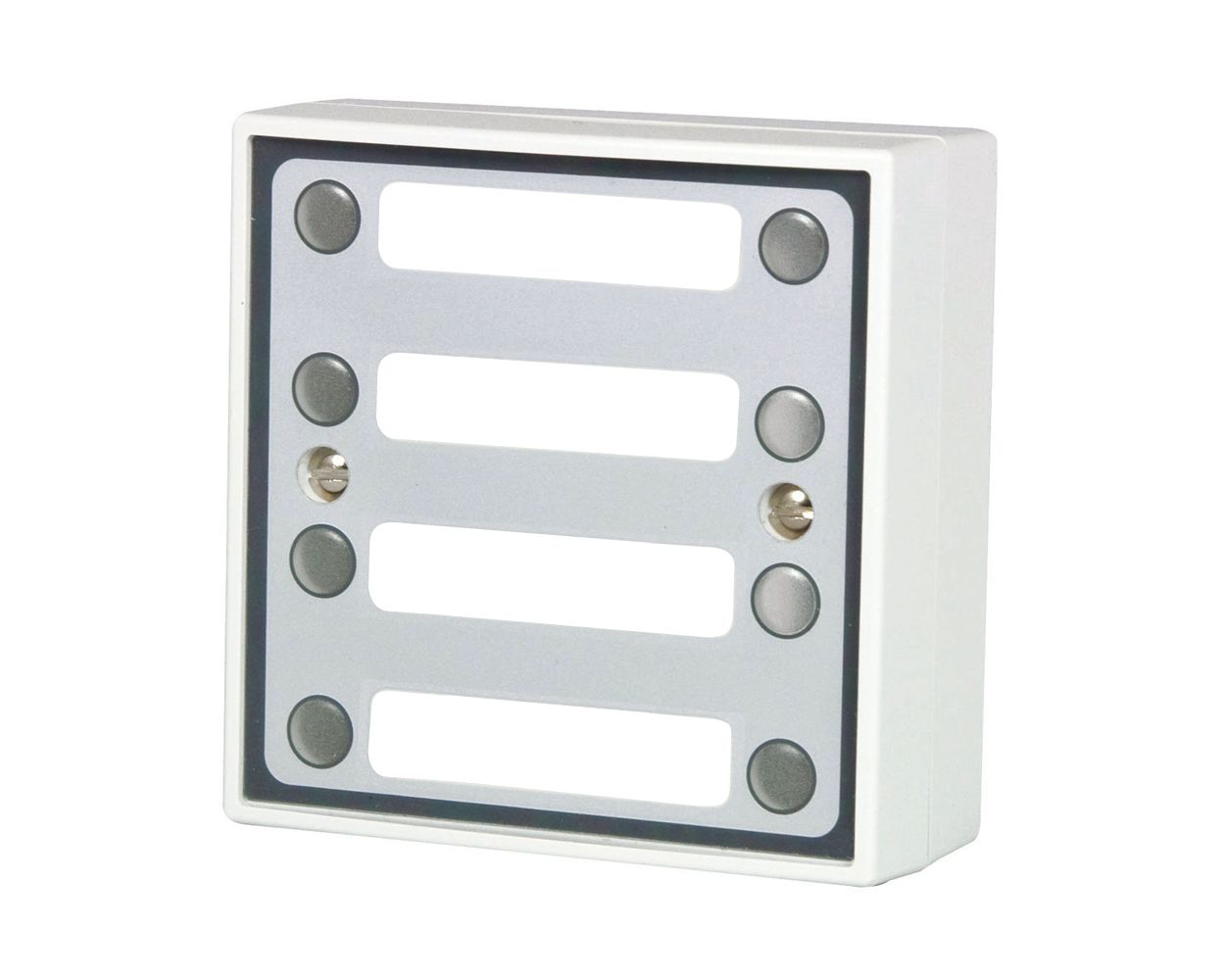

8 way LED Indicator unit with sounder. The LEDs are available in RED, GREEN or YELLOW.
A wall mounted 8 way Indicator unit with sounder in white ABS complete with a single gang low profile mounting box and a scratch resistant decal. There are separate drive inputs for both the individual lights and the sounder. The LEDs are available in RED, GREEN or YELLOW. The LED and sounder limit resistor is provided for operation at 12vdc. We will label the facia with words of your choice or supply it blank. Please see More Information for "Text Requirements" download sheet.
Specification- Led Current - 17.5mA per LED@12vdc
- Sounder Current - 25mA 12vdc
- Switch Contacts - N/A
- Visual Indication - 8 x high brightness LEDs
- Integral Sounder Level - 70db @10cm
- Tamper - N/A
- Material - White ABS
- Weight - 0.12kg
- Dimensions 87 x 87 x 36mm
- Supplied with back box for surface mount
- Can be semi flushed onto standard flush back box (Not supplied)
- Approvals - CE and RoHs compliant
- Mark resistant decal
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1782P |
Associated Product Codes | S1782PR, S1782PG, S1782PY |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
- | ![]() |
