Two LEDs with Custom text Stainless steel

£81.40 Ex Vat
Despatched within 2-3 days
Product code
S1714STC

Maximum 45 characters

Two LEDs with Custom text Stainless steel

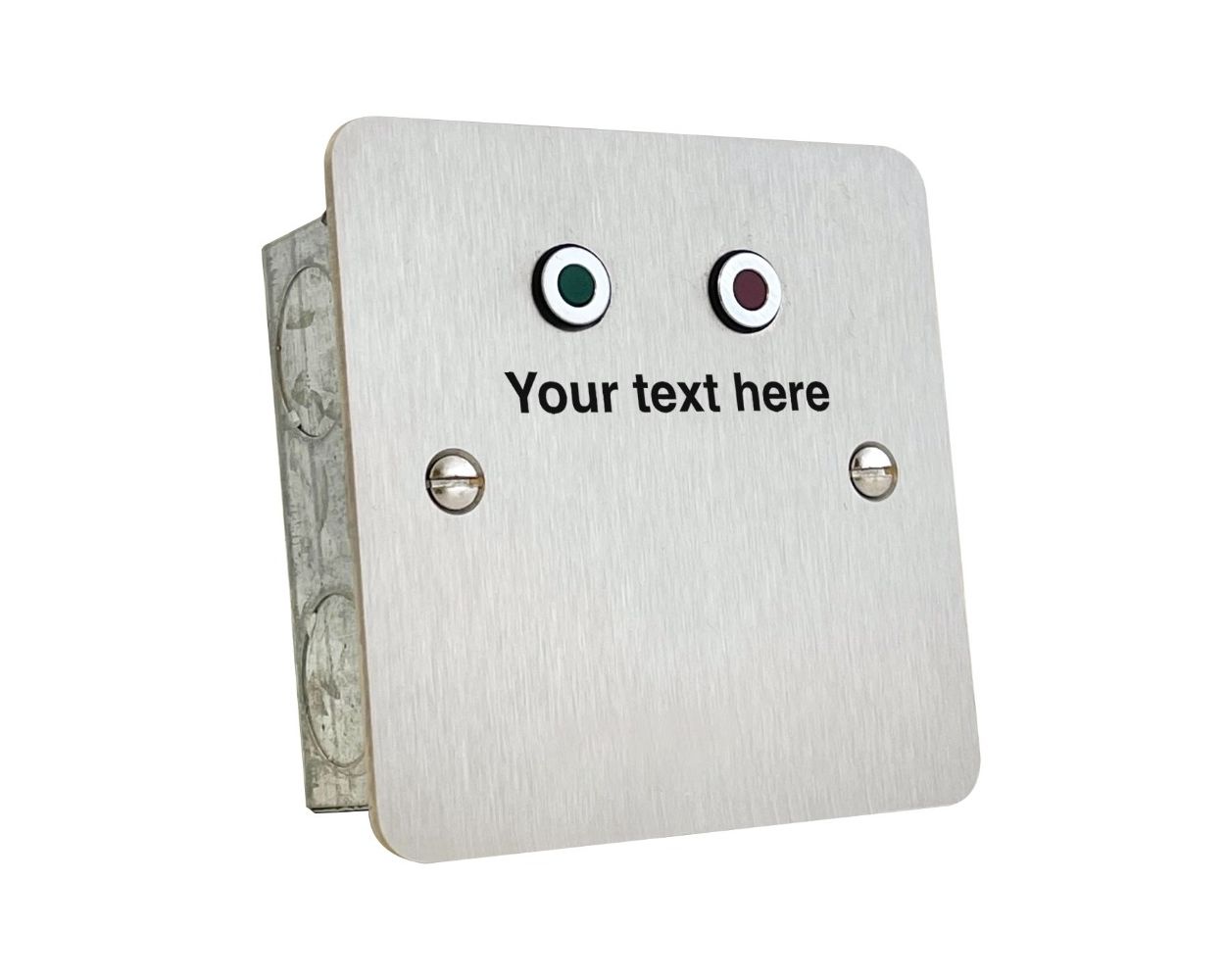

Flush fitting stainless steel plate with one red and one green flat LED in chrome bezels. Separate terminals are provided for the LED's. The LED current limit resistor is provided for 12 vdc operation.
Permanently laser marked with text of your choice. Specify text required when ordering - 45 characters maximum.

Specification
  • Led Current - 20mA per LED@12vdc
  • Switch Contacts - N/A
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x red LED 1 x green LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
  • Material - 316 Grade Stainless Steel
  • Permanently laser marked
  • Ideal for hygienic environments
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Weight - 0.26kg
  • IP Rating - IP65 front side contact area
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1714STC
Associated Product Codes S1714STC
Warranty 3 Years
- Installation Instructions for S1714STC
- Product Information Sheet for S1714STC
