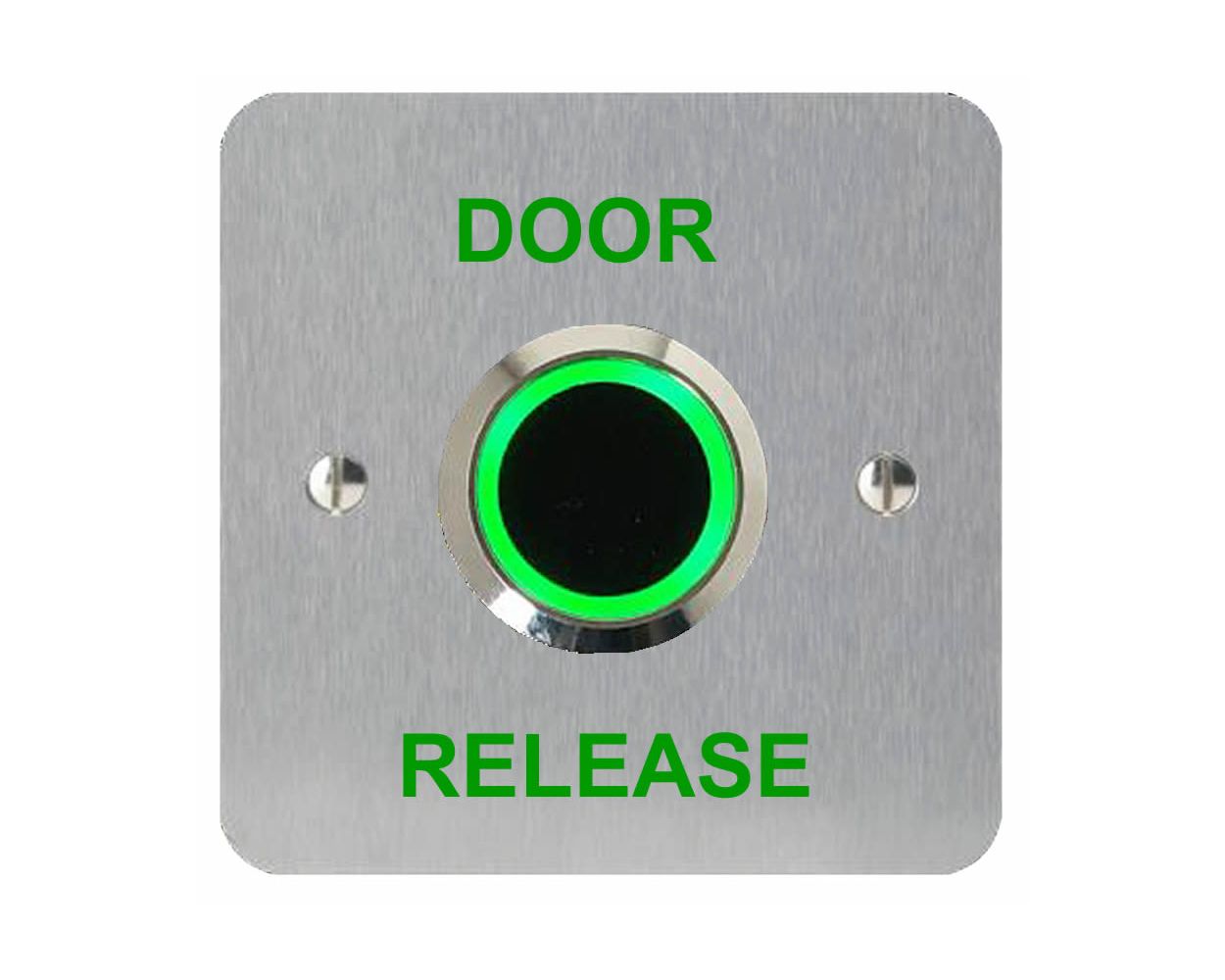

Touchless Door Release 12/24v Single Gang Stainless Plate

A single gang, touchless infrared switch designed for hygienic access control in hospitals, care homes, offices, and public buildings. touchless activation helps reduce the spread of viruses and contaminants.
Operating on 12–24V DC, it features dual-colour red/green halo illumination for clear user feedback, with selectable sequence via PCB jumper. An integral microcontroller allows adjustable sensing range and door open time, and the switch can be set for momentary or maintained operation.

Note: Mock pattress is not included. Supplied flush-mounted on a 2mm stainless steel single gang plate with silk-screened legend, complete with a 35mm galvanised steel backbox and fixings.

Specification:

• Voltage input V 12/24Vdc (plus / minus10%)
• Current draw A 30mA @ 24Vdc
• Contact load A 1A @ 24Vdc
• Read range 4-15cm (plus / minus 25%)
• Illumination Dual halo (red/green) selectable
• Infra-red switch requiring NO touch
• IP65 (frontal presentation)
• Adjustable read range
• RoHS Compliant
• Momentary OR Maintained contact
• Adjustable lock open time
• Weight 0.3kg
• Grade 304 stainless steel
• Dual colour (red/green) halo illumination
• 12/24Vdc operation
• Approvals - UKCA and CE marked, ROHS compliant

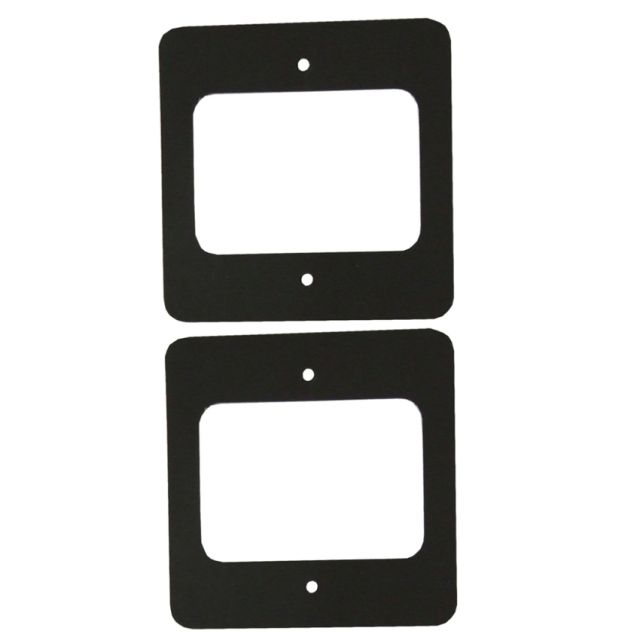

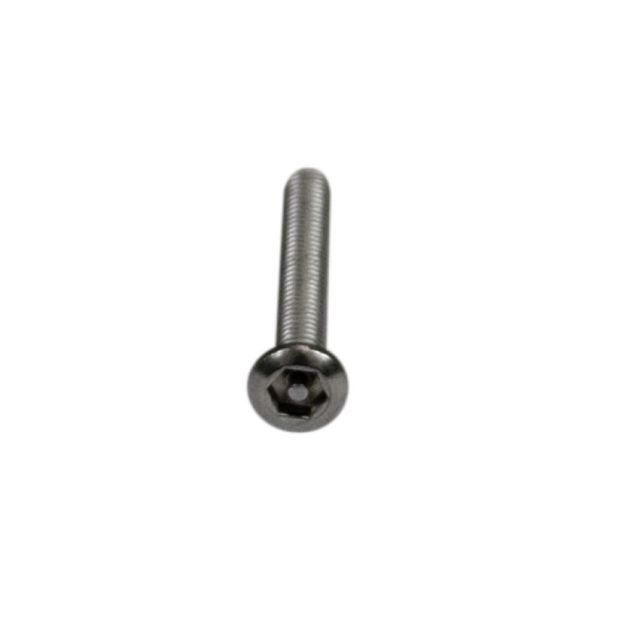

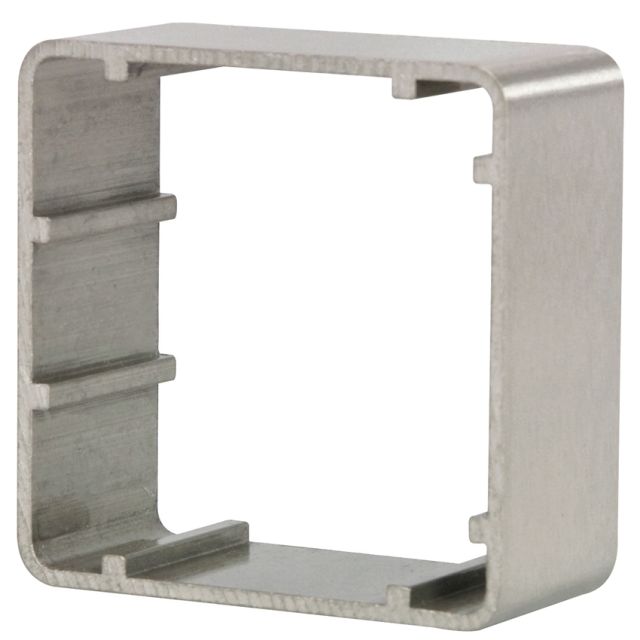

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
