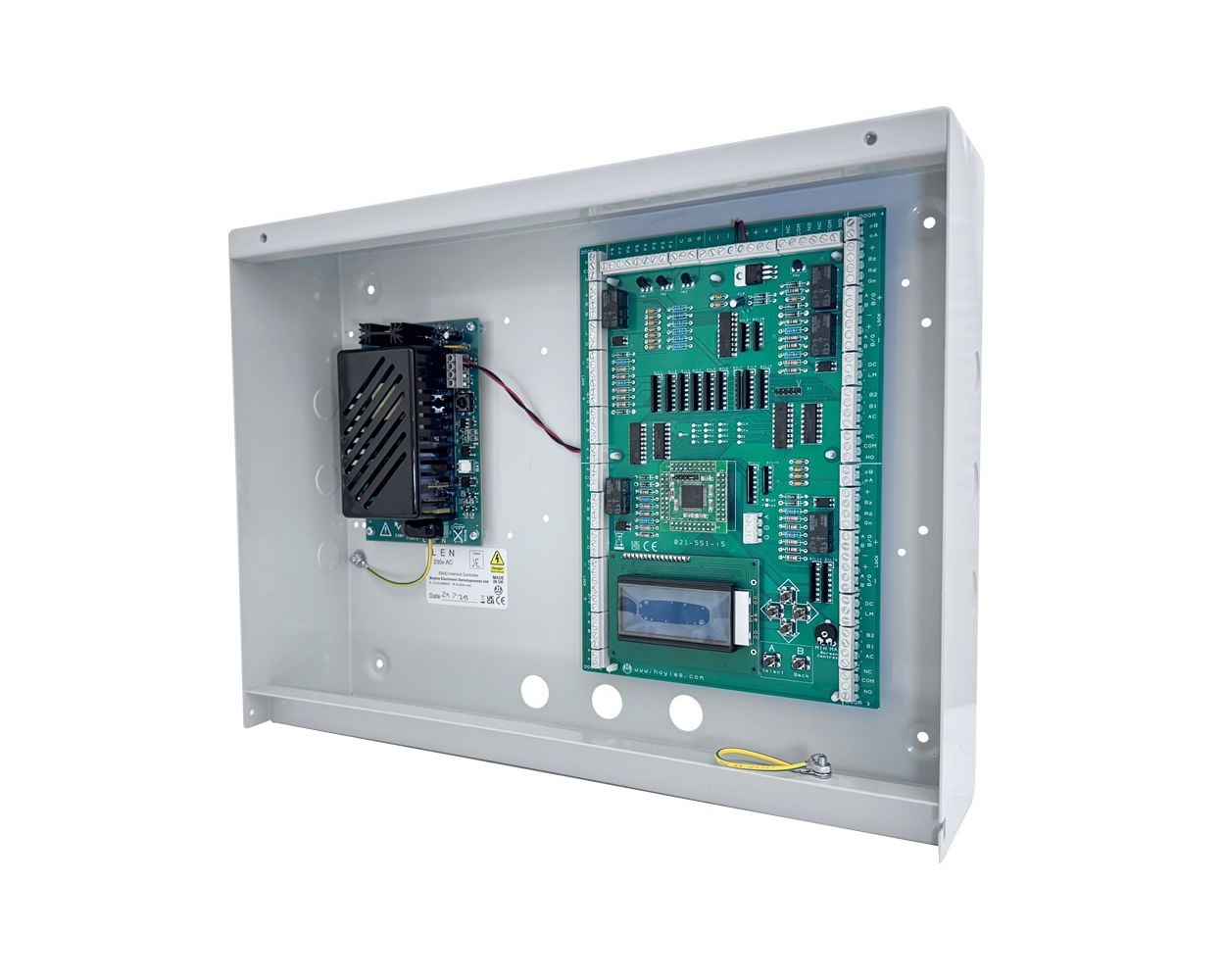

Standalone 4 door universal interlock controller with screw terminals

The INTERGUARD IGUIC4T-12 and IGUIC4T-24 are standalone programmable interlocks controller for systems of up to four doors.

Unlike the standard IGUIC controller range, the IGUIC4T-12 and IGUIC4T-24 have integrated screw terminals. Door locks, request-to-exit buttons, door contacts, lock monitors, indicators, access-control equipment and other door-side devices connect directly to the main control panel.

Separate Door Interface Junction Boxes and RJ45 door-interface cables are therefore not required.

The integral LCD display provides access to the interlock logic, timers and individual door parameters, including normally locked and normally unlocked operation.

Programmable fire-alarm inputs can override normal interlock operation. Depending on the selected configuration, the system can release the doors or suspend the normal interlock restrictions while retaining controlled door operation.

An integral 12 or 24 VDC power supply (depending on model) provides power for the controller, indication and suitable 12 or 24 VDC locking devices.

Specification

• Standalone programmable interlock controller
• Controls up to four doors
• Door devices connect directly to the panel
• Integrated screw terminals
• No separate Door Interface Junction Boxes required
• No RJ45 door-interface cables required
• Integral LCD display for programming and setup
• Integral 12 or 24 VDC power supply - depending on model
• Normally locked or normally unlocked door operation
• Secure and non-secure interlocking
• Red and green door-status indication
• Programmable fire-alarm operation
• Door breach indication
• Programmable global relay output
• Programmable door-open-too-long, dwell, lockdown, lockdown-after-use and privacy timers
• Enclosure dimensions: 400×300×90mm
• UKCA and CE marked
• RoHS compliant
• Manufactured in the UK
