Request to Release button with sounder for IGUIC, Red & Green status LEDs

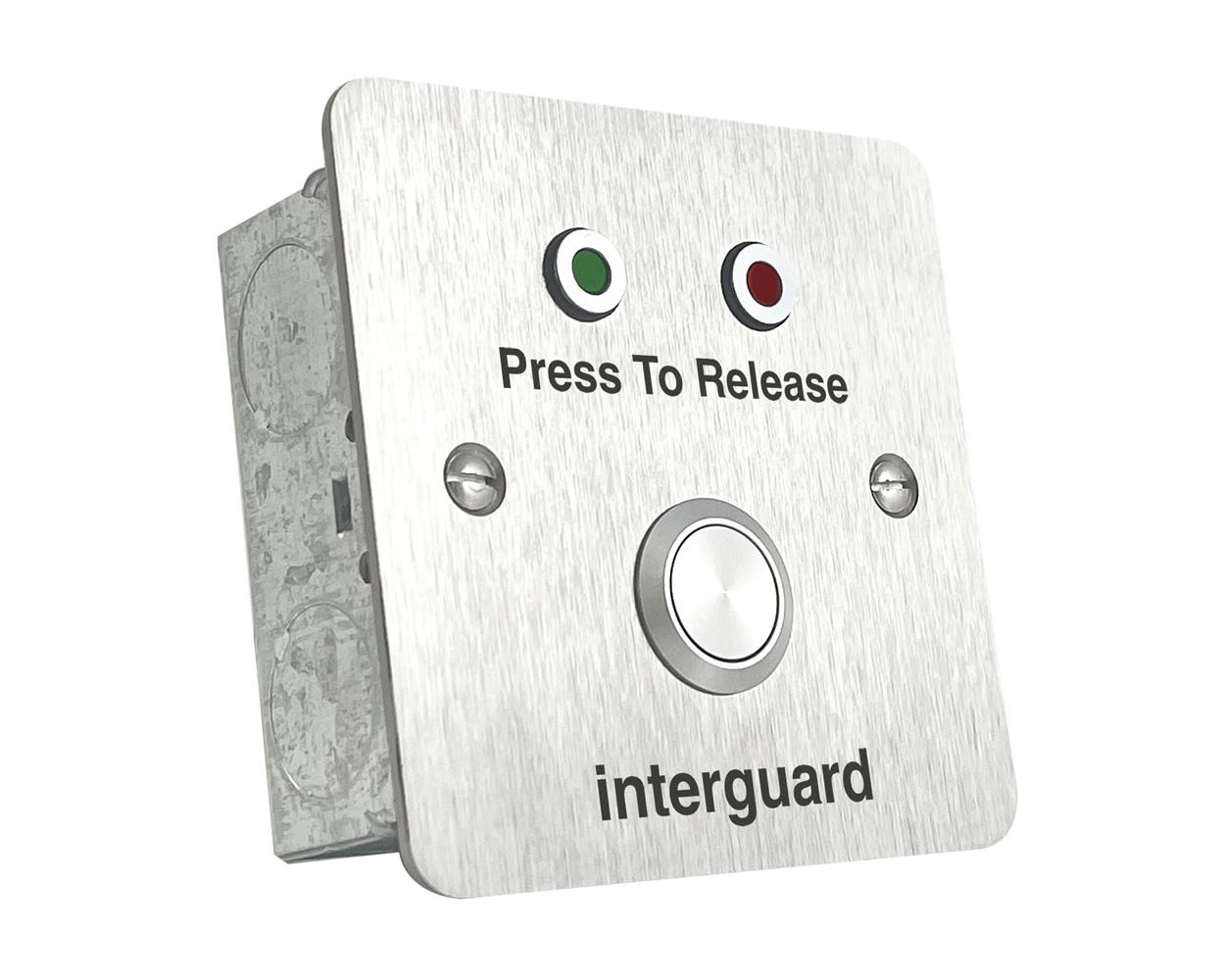

Flush Fitting Door Status indicator with sounder, stainless steel vandal resistant push button together with one red and one green LED on a single gang stainless steel plate lasered 'Press To Release'. Specifically designed for use with our range of IGUIC door interlock controllers. The LEDs on the S1718BS indicate the status of the relevant door.

Please Note: This button is only compatible with the IGUIC.

Specification

Led Current - 20mA per LED@ 12vdc
Switch Contacts - Single pole normally open 2A@ 30vdc
Sounder Current - 40mA @ 12vdc
Visual Indication - 1 x red LED 1 x green LED
Integral Sounder Level - 90dB@10cm
Tamper - N/A
Material - 316 Grade Stainless Steel
Ideal for hygienic environments
Permanently laser marked
Dimensions - 86 x 86 x 2mm - Facia
38mm galvanised back box supplied
Weight - 0.26kg
IP Rating - IP65 front side contact area
Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.

More Information
Country of Origin	UK
Condition	New
SKU	S1718BS
Associated Product Codes	S1718BS
Warranty	3 Years
-	Product Information Sheet for S1718BS
