Press to Release mushroom button with LEDs and sounder

Be the first to review this product

£95.29 Ex Vat

In stock

Product code

S1712SGPTR-CF-Wrongone

Qty

Press to Release mushroom button with LEDs and sounder is available to buy in increments of 1

Stainless Steel Press to Release mushroom headed button available as 12 or 24vdc

Details

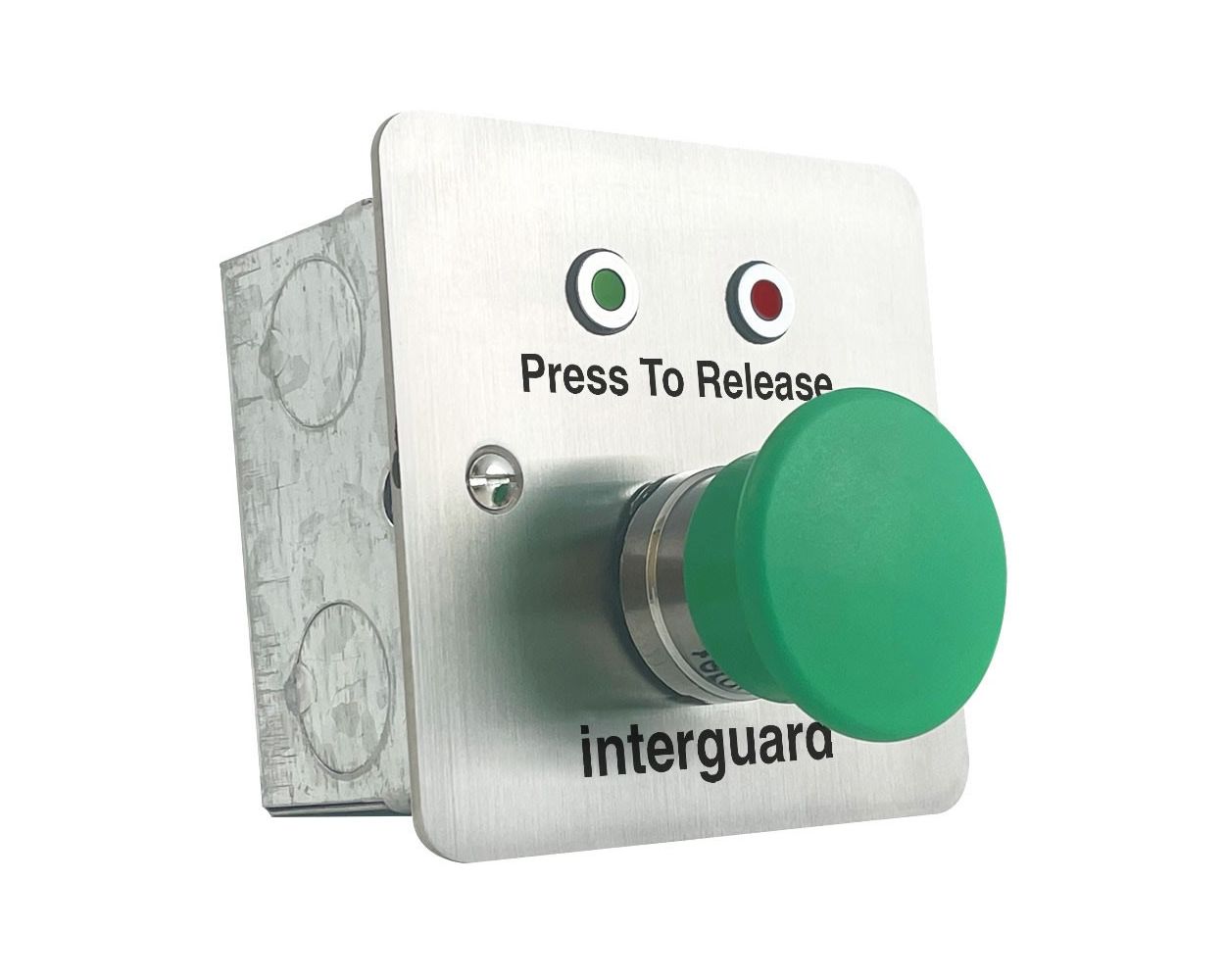

A large momentary action mushroom headed push button together with one red and one green LED and sounder on a single gang stainless steel plate. Designed for use with our range of Interguard door interlock controllers but usable in many other applications. The push button has double pole change over contacts.

Specification

Led Current - 20mA per LED @ 12 or 24vdc
Switch Contacts - 1 x N/O 1 x N/C both 1A @30vdc
Sounder Current - 40mA @ 12 or 24vdc
Visual Indication - 1 x green LED 1 x red LED
Integral Sounder Level - 90db @10cm
Tamper - N/A
Material - 316 Grade Stainless Steel
Text - Permanently laser marked
Dimensions - 86 x 86 x 2mm - Facia
47mm galvanised back box supplied
Weight - 0.44kg
IP Rating - IP65 front side contact area
Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.

More Information

More Information
Country of Origin	UK
Condition	New
SKU	S1712SGPTR-CF-Wrongone
Associated Product Codes	S1712SGPTR S1712SGPTR24
Warranty	3 Years
-	Installation Instructions for S1712SGPTR-CF
-	Product Information Sheet for S1712SGPTR-CF
