Press to Call button with LED and sounder
£79.33
In stock
Product code
S1705SL

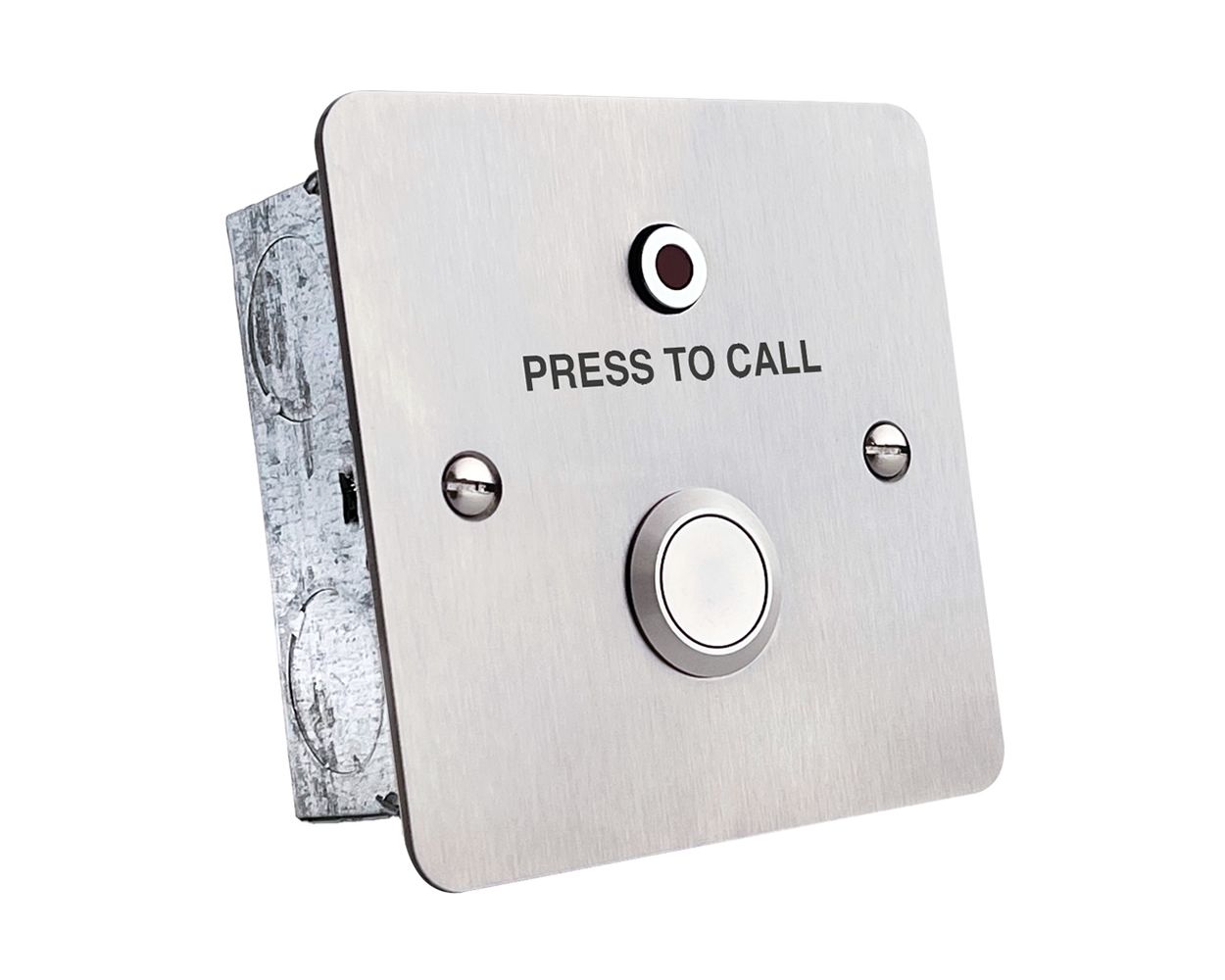

Stainless steel Press to Call button with LED and sounder
Flush fitting stainless steel Press To Call unit with vandal resistant button and re-assurance red LED and sounder. This is a non-latching momentary button with single pole normally open contacts. Separate terminals are provided for the LED, sounder and button. The LED and sounder are 12 vdc operation. Customised versions available on request.
Specification- Led Current - 20mA@12vdc
- Sounder Current - 40mA@12vdc
- Switch Contacts - Single pole normally open 2A@ 30vdc
- Visual Indication - 1 x Red LED
- Integral Sounder Level - 70db@10cm
- Tamper - N/A
- Material - 316 Grade Stainless Steel
- Ideal for hygienic environments
- Text - Permanently laser marked
- Dimensions - 86 x 86 x 2mm - Facia
- 38mm galvanised back box supplied
- To surface mount use S0610-38
- Weight - 0.28kg
- IP Rating - IP65 front side contact area
- Approvals - UKCA and CE marked, ROHS compliant
Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1705SL |
| Associated Product Codes | S1705SL |
| Warranty | 3 Years |
| - |  Installation Instructions for S1705S |
| - |  Product Information Sheet for S1705S |
