Polished Brass Press to Reset button with LED and sounder
£86.31
Ex Vat
In stock
Product code
S1708BR
Please Note: Contact us for stock availability, lead time can be up to 2-3 weeks.

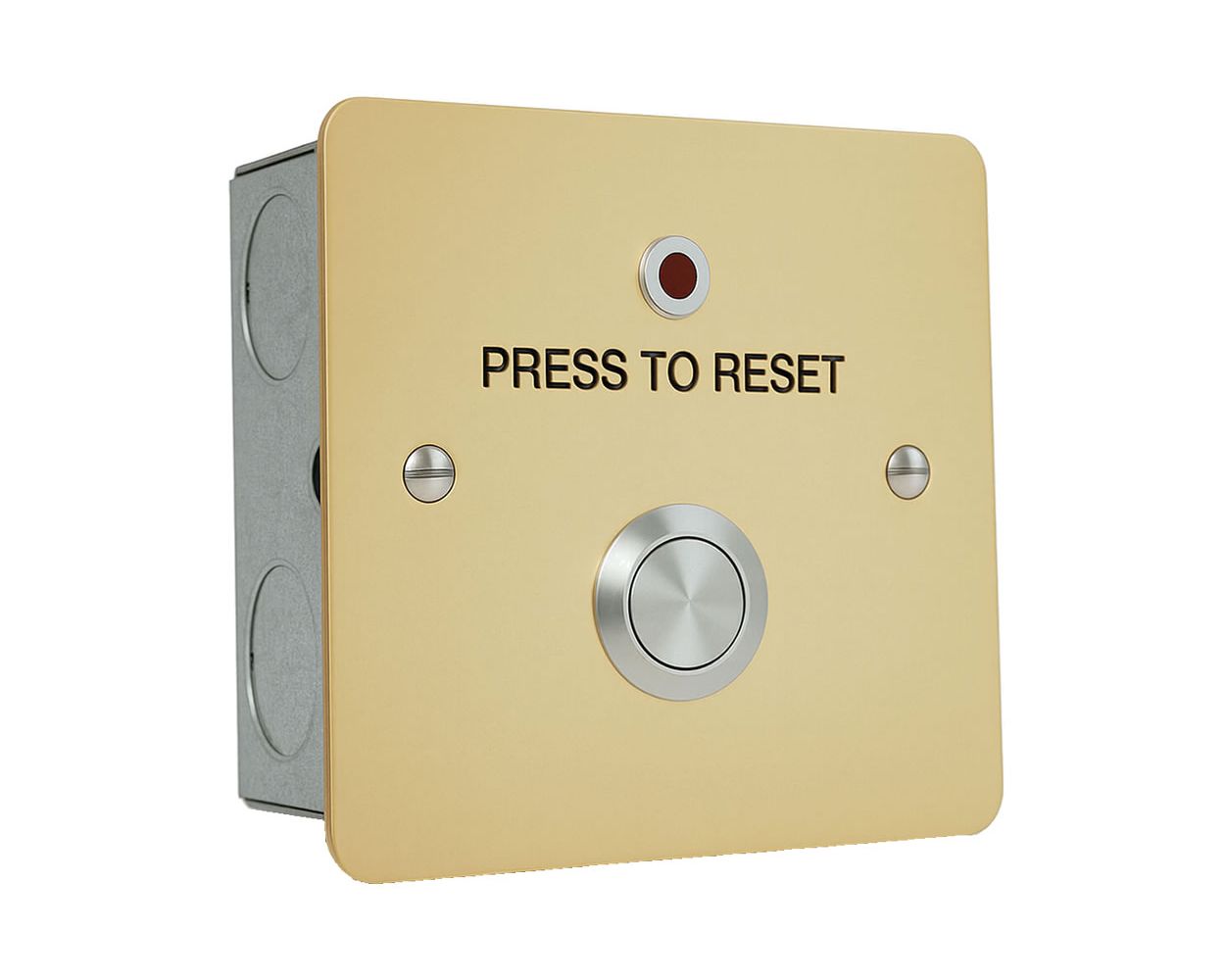

Flush fitting polished brass Press To Reset unit with vandal resistant button, re-assurance red LED and sounder. This is a non latching (momentory) with single pole normally open contacts. Separate terminals are provided for the LED, sounder and button, the LED current limit resistor is provided for 12 vdc operation. Customised versions available on request.
Specification- Led Current - 20mA@12vdc
- Switch Contacts - Single pole normally open 2A@ 30vdc
- Sounder Current - 40mA@12vdc
- Visual Indication - 1 x Red LED
- Integral Sounder Level - 70db@10cm
- Tamper - N/A
- Material - Polished Brass
- Dimensions - 86 x 86 x 2mm - Facia
- 38mm galvanised back box supplied
- Weight - 0.27kg
- IP Rating - IP44 front side contact area
- Approvals - UKCA and CE marked, ROHS compliant

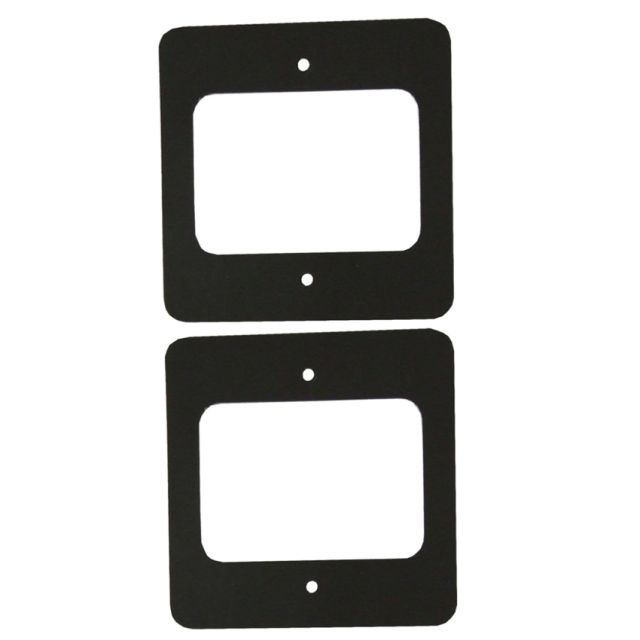

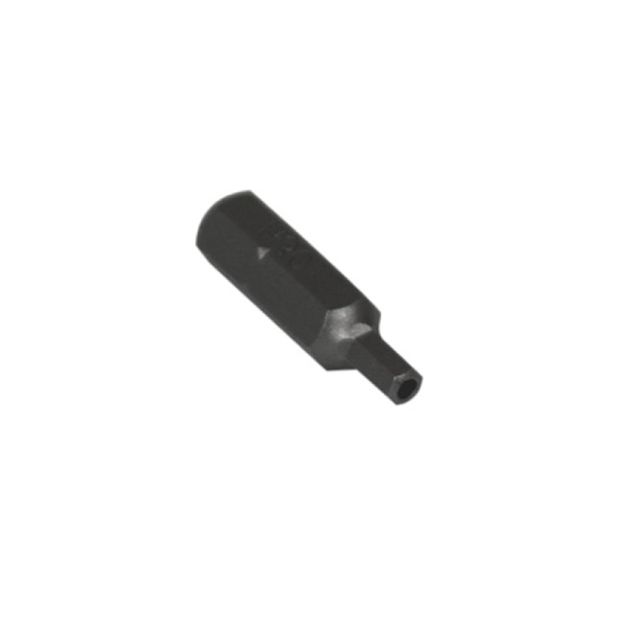

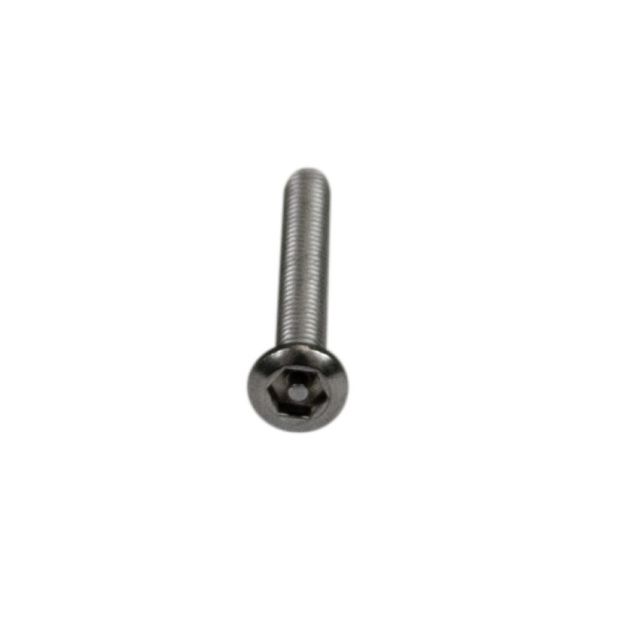

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1708BR |
| Associated Product Codes | S1708BR |
| Warranty | 3 Years |
| - |  Installation Instructions for S1708BR |
| - |  Product Information Sheet for S1708BR |
