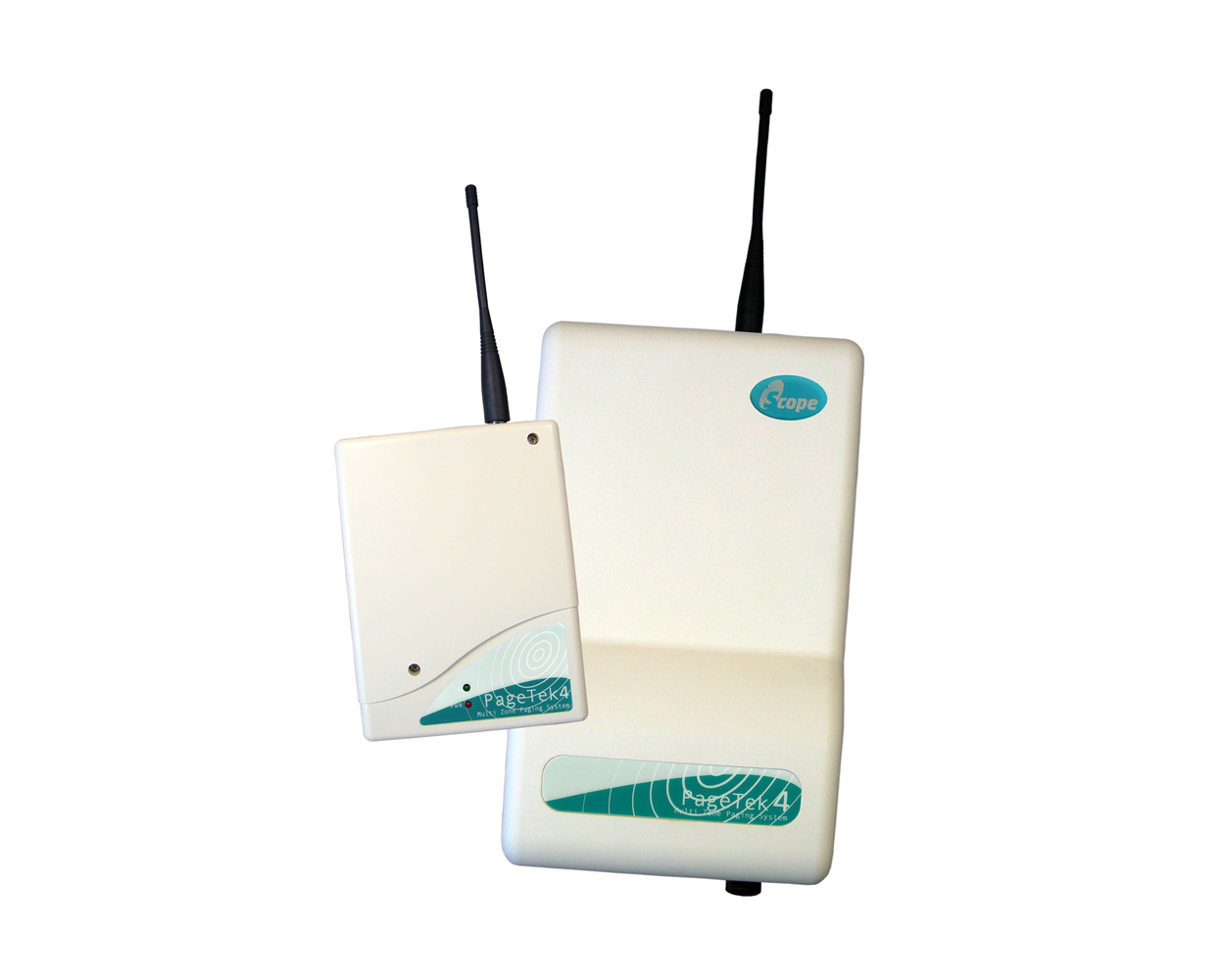

PageTek 4 flexible programmable UHF transmitter

The PageTek 4 is a programmable UHF transmitter available in 5-zone or 10-zone models. It automatically sends messages to pagers or fixed receivers when a switched input is activated. Each zone can send and repeat active/inactive messages at set intervals. The system supports automatic “In Service” checks, alerting users to faults or loss of service. The 10-zone model includes a Burglar Alarm mode with configurable entry/exit delays and zone types. A Programming Kit (Windows software + USB cable) enables full user configuration stored in secure memory. Available in 12VDC, 24VDC, or mains-powered versions, with optional battery backup.

• Individual Zone States (normally open, normally closed or change of state)
• Voltage Input Triggers (5-18V)
• Input trigger time
• Transmission Delay
• Transmission repeat functions
• Local output (open collector)
• Identity code (capcode) for each zone and each state
• Preformed text messages, either numeric or alphanumeric
• Low Battery Signal
• ’In Service’ call period
• ’Burglar Alarm’ mode (10 zone version only)
• Tamper zone
• Dimensions 12vdc or 24vdc versions 185 x 140 x 42mm (H)335mm with 1/4 wave antenna
• Dimensions 240vac versions 328 x 190 x 75mm (H)496mm with 1/4 wave antenna
