Keyswitch with two LEDs one red one green

£76.92 Ex Vat
In stock
Product code
S1729S
Two position keyswitch, key free in both positions, with one red and one green LED.

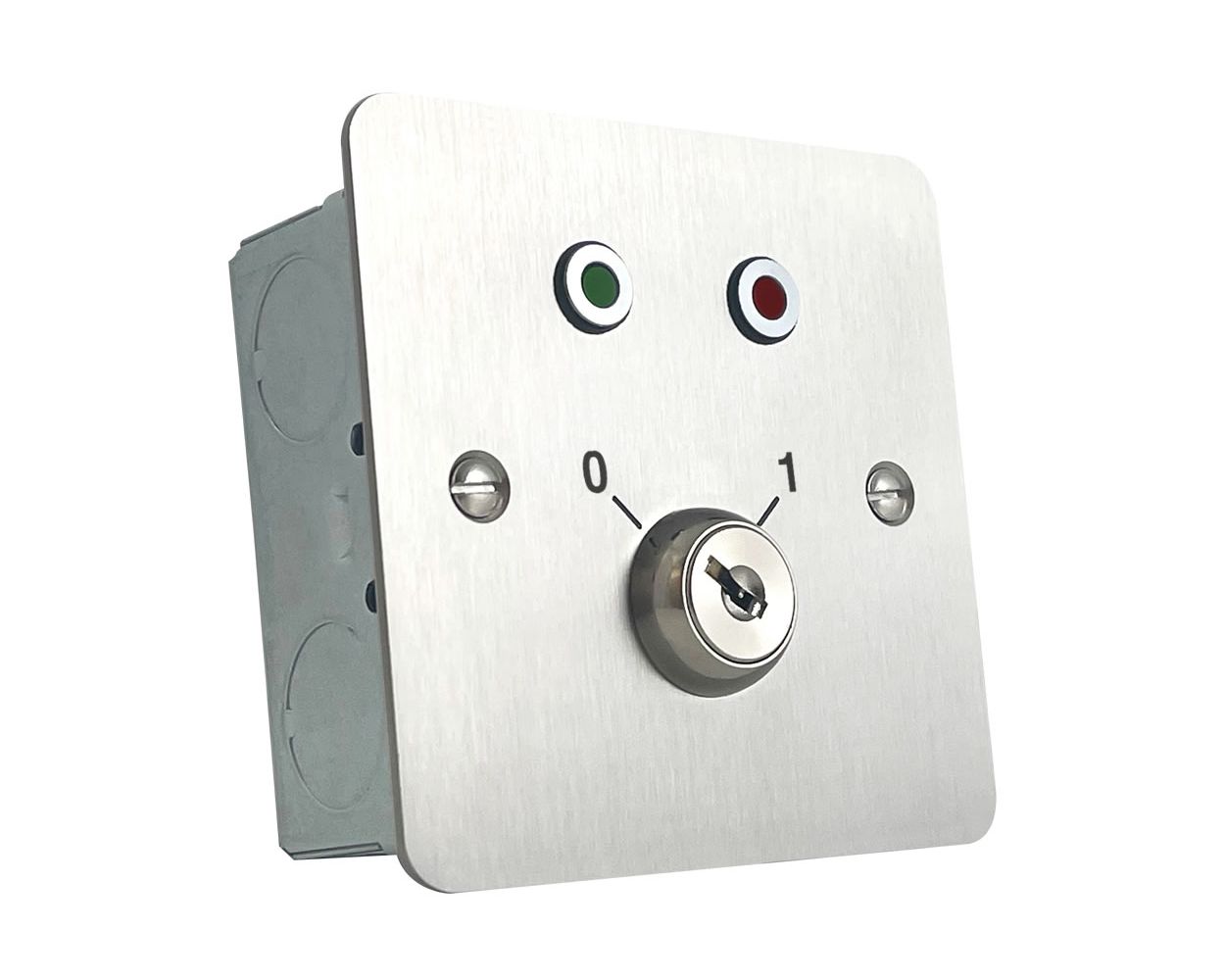

Flush fitting stainless steel engraved two position keyswitch with one red and one green flat LED in chrome bezels. This is a double pole unit with change over contacts. The keyswitch on this version can be removed in both positions. Separate terminals are provided for the LEDs. The LED current limit resistor is provided for 12 vdc operation.

Specification:
  • Led Current - 20mA per LED @12vdc
  • Switch Contacts - DPCO 2A @30vdc
  • Sounder Current - N/A
  • Visual Indication -1 x red LED 1 X green LED
  • Integral Sounder Level - N/A
  • Tamper - N/A
  • Material - 316 Grade Stainless Steel
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mount using S0610-38
  • Weight - 0.28kg
  • IP Rating - IP65 front side contact area
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1729S
Associated Product Codes S1729S
Warranty 3 Years
- Installation Instructions for S1729S
- Product Information Sheet for S1729S
