Green Overdoor Light and sounder Stainless steel

£62.84 Ex Vat
In stock
Product code
S1778SG
Green Overdoor Light and sounder Stainless steel

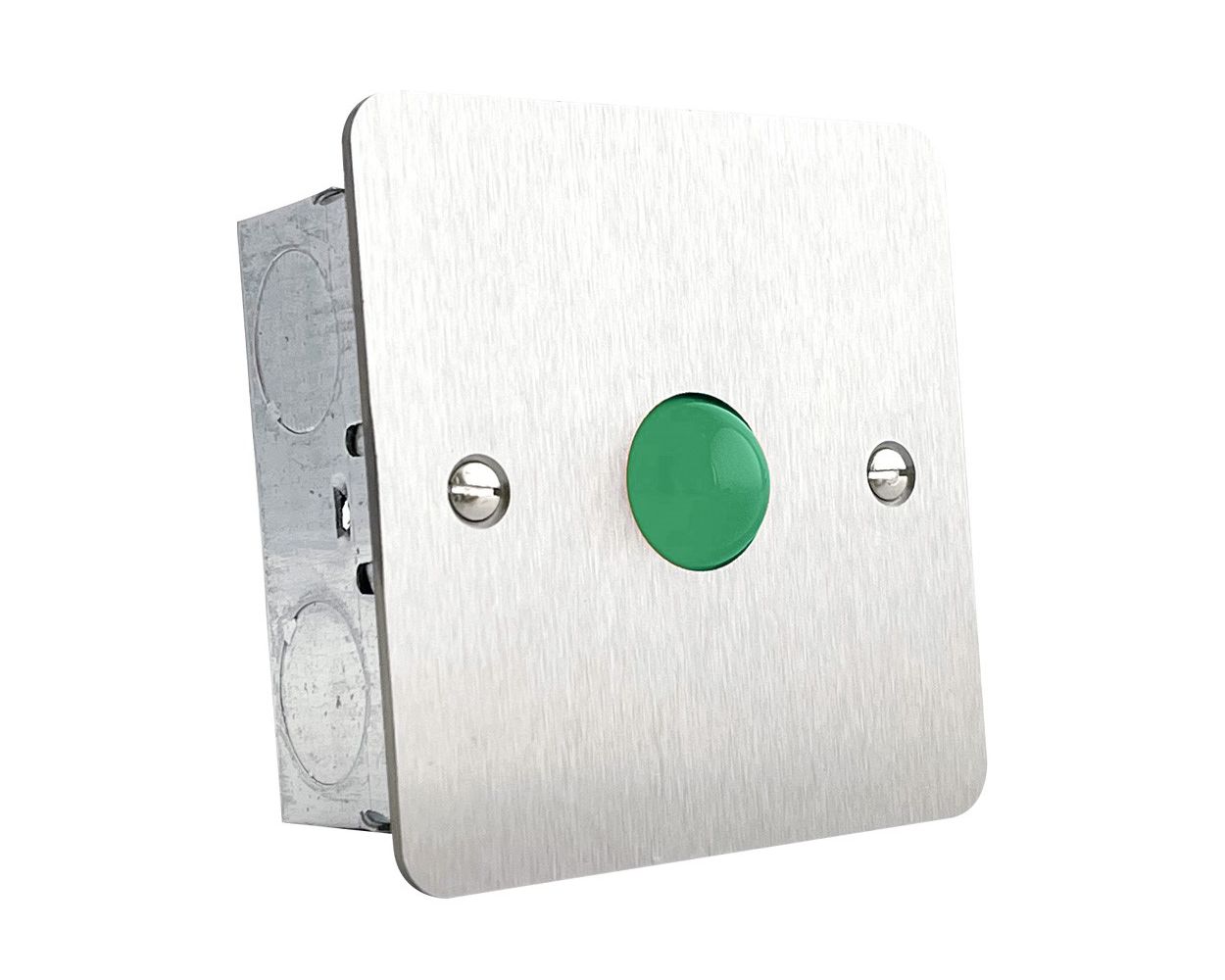

Stainless Steel flush fitting overdoor light and sounder with 16mm Green Jumbo LED. There are separate terminals provided for the LED. The LED and sounder current limit resistor is provided for 12 vdc operation.

Specification
  • Led Current - 50mA @12vdc
  • Switch Contacts - N/A
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x Green Jumbo LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
  • Material - 316 Stainless Steel
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mount using S0610-38
  • Weight - 0.26kg
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1778SG
Associated Product Codes S1778SG
Warranty 3 Years
- Installation Instructions for S1778SG
- Product Information Sheet for S1778SG
