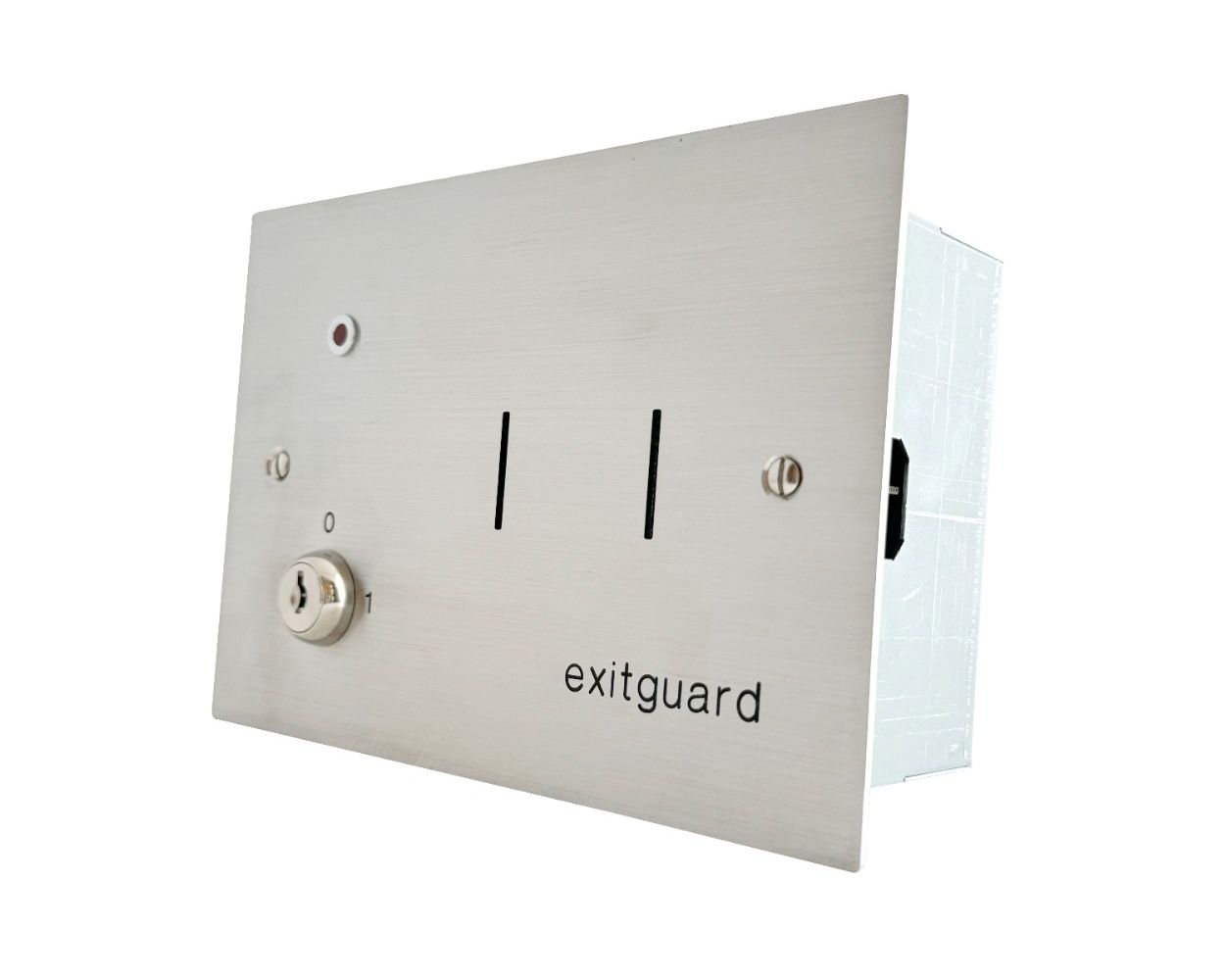

Exitguard 12vdc Stainless Door Alarm c/w integral keyswitch
Stainless Steel Flush mount emergency exit door alarm keyswitch control
Flush mount 12vdc powered Stainless Steel Exitguard Ideally suited for more prestigious buildings or anywhere where flush mount equipment is required. Use where the protected door may be opened frequently or the sounder may need to sound for a long time. This version can also be used as part of a system where it is necessary to interface with other equipment such as intruder alarms or access control systems. There is an alarm output relay for connection to remote systems.
Please note: This version cannot be powered by batteries. Requires a separate 12vdc PSU minimum of 250mA , see PSU-12/2AB, if battery backup is required see BAT12V3300LA
- Keyswitch Control
- 12vdc Powered
- Alarm Relay Output
- High Power Piezo Sounder
- Auto Re-arm & Reset Delay (variable)
- Door Open Too Long Default delay 0 OR 15 seconds
- Visual Alarm Indication
- Tamper Switch
- Separate Tamper Tone with Manual Reduction
- Chime Facility
- Selectable Alarm Tones
- Simple Function Change by Internal Jumpers
- Door contact supplied

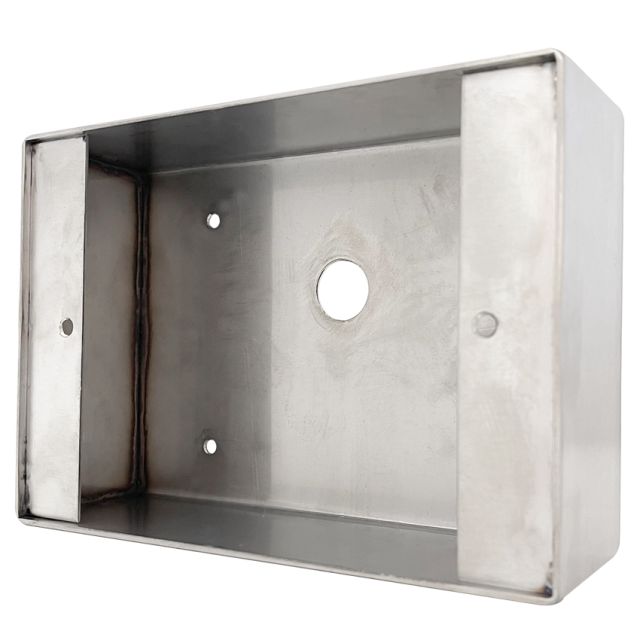

- Surface mount using S0610-SB
- Facia Dimensions 180 x 125 x 2mm - Back Box Dimensions 165 x 100 x 55mm
Exitguard 100 Series model comparison table
| Feature | EX104GEX104GT | EX105GEX105GKMEX105GTKM | EX105SFStainless steel | EX106G |
|---|---|---|---|---|
| Best suited for | Doors opened infrequently | Frequently opened doors | Frequently opened doors | Frequently opened doors |
| Supply voltage | 6 x AA batteries | 11–14VDC | 11–14VDC | 230VAC mains + battery backup |
| Supply current | 35μA quiescent80mA max in alarm | 45mA quiescent 155mA max in alarm | 45mA quiescent 155mA max in alarm | <0.5A |
| Manual key reset | Yes | Yes | Yes | Yes |
| Optional auto reset timer adjustable0–90 seconds | Yes | Yes | Yes | Yes |
| Visual indication - 1 x Red LED (alarm & fault) | Yes | Yes | Yes | Yes |
| Optional 15 second Door Open Too Long Delay | Yes | Yes | Yes | Yes |
| Auxiliary power output | No | No | No | 12vdc @ 200mA |
| Sounder - 105dB @ 1 metre | Yes | Yes | Yes | Yes |
| Optional chime function | Yes | Yes | Yes | Yes |
| Two selectable alarm tones | Yes | Yes | Yes | Yes |
| Batteries supplied | 6 x AA Alkaline 3 years battery life dependent on usage |
N/A | N/A | 6 x AA Alkaline - Back up |
| Battery fault monitor | Yes | N/A | N/A | Yes |
| Safe set feature | Yes | Yes | Yes | Yes |
| Annoyance reduction - Alarm reduces after 2 minutes | Yes | Yes | Yes | Yes |
| Alarm relay contacts | No | SPCO 1A/30VDC volt free | SPCO 1A/30VDC volt free | SPCO 1A/30VDC volt free |
| Inputs - Door contact & tamper loop | Yes | Yes | Yes | Yes |
| Independent N/C lid tamper | Yes | Yes | Yes | Yes |
| Enclosure material | Surface mount box. ABS plastic with mark-resistant coating | Surface mount box. ABS plastic with mark-resistant coating | Flush mount with Stainless facia | Surface mount box. ABS plastic with mark-resistant coating |
| Dimensions | 175 x 125 x 60mm (tapering to 50mm) | 175 x 125 x 60mm (tapering to 50mm) | Facia Dimensions 180 x 125 x 2mm - Back Box Dimensions 165 x 100 x 55mm | 175 x 125 x 60mm (tapering to 50mm) |
| Weight | 0.64kg | 0.49kg | 1.25kg | 0.83kg |
| Surface door contact, 1m 4-core cable, warning sign, fixings & batteries (where applicable) | Yes | Yes | Yes | Yes |
| Approvals - UKCA & CE marked, ROHS compliant | Yes | Yes | Yes | Yes |
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | EX105SF |
| Associated Product Codes | EX105SF |
| Warranty | 3 Years |
| - |  Installation Instructions for EX105SF |
| - |  Product Information Sheet for EX105SF |
