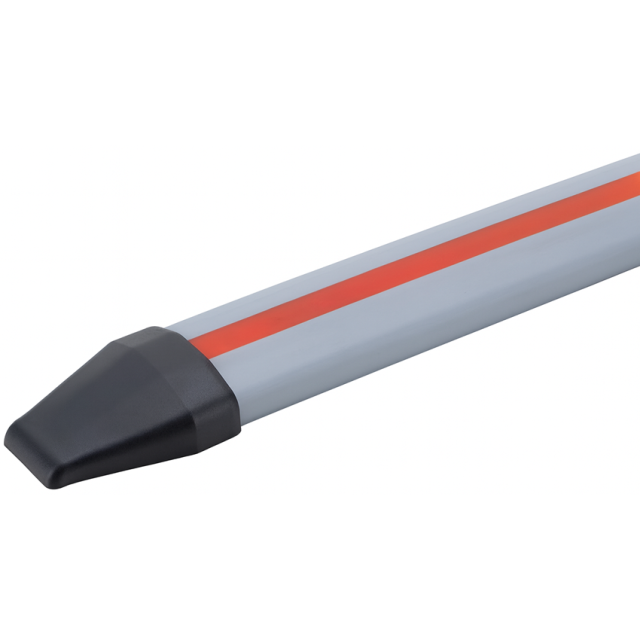

Dado Panic and Affray Switch Strip with LED Illumination

Once supplied LED Dado panic strip cannot be altered in length. It is critical that sizes are correct when ordering, see Ordering Information below.

By default Dado Painc Strip is supplied in Red and Grey, please contact us if you require Dado in Blue.

Standard lengths are available to ordered by selecting your required option from the drop down list above, non standard lengths are available to special order, please call for a quotation.

DaDo Panic Strip is a switch strip en-cased in a high-durability housing for use as a panic or affray alarm. Ideal where people may need to signal for help or assistance, it can be operated along its entire length. Our Panic Strip comprises of four main components, the switch strip, tamper-resistant top cover, aluminium mounting rail and a set of end-caps.

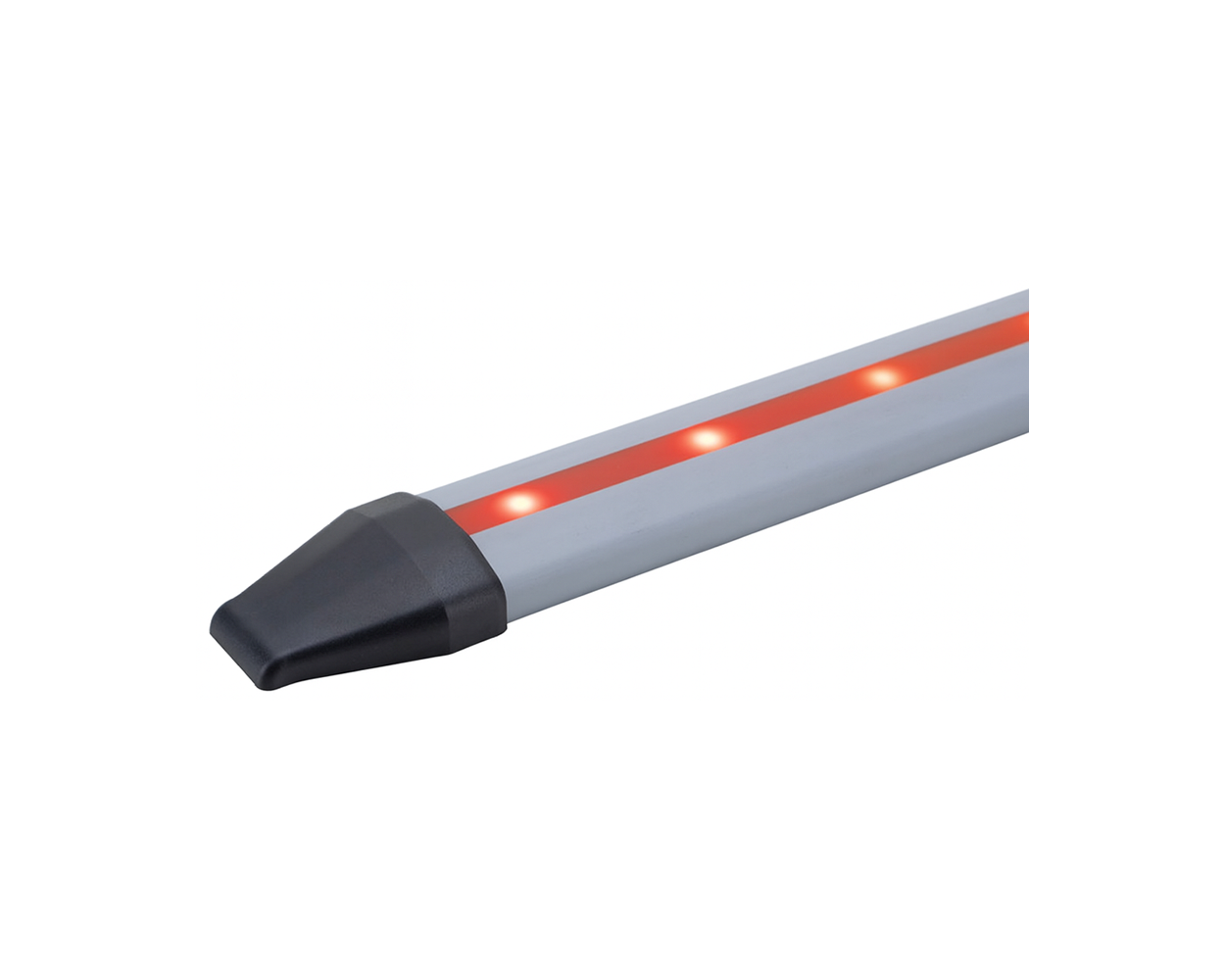

LEDs are evenly distributed along the complete length of the strip and require a 12vdc power source which is not included. The switch itself is a normally open switch and has flying leads on both ends for connection. Dado can be connected to a variety of Hoyles products including the Aidalarm disabled toilet alarm and the Multiguard indicator range to create a more comprehensive system. We recommend the use of our Redimon monitor unit which will monitor panic strip for both alarms and faults and provide relay outputs for both conditions.

• Available in long lengths
• Tamper resistant Press at any point LED Dado Panic Strip
• Waterproof
• Supplied with 100mm flying leads at each end of strip
• Tried and tested technology
• Easy to install
• Channel pre-drilled and countersunk
• Available in Grey/Red & Blue

REDIMON5 - We recommend the use of our Redimon monitor unit which will monitor panic strip for both alarms and faults and provide relay outputs for both conditions, see related products below.

End-caps - Each Dado Strip is supplied with 2 x Trunking end-caps designed to fit 25 x 15mm trunking for installations where cables are run externally and 2 x Closed end-caps for installations where cables have been embedded. If you require additional end-caps they can be ordered using Part No - RPDEC.

Flexible corners - Flexible corners allow the Dado Panic Strip to flow around internal and external corners without a break. If your require Flexible corners they can be ordered using Part No - RPDFC.
