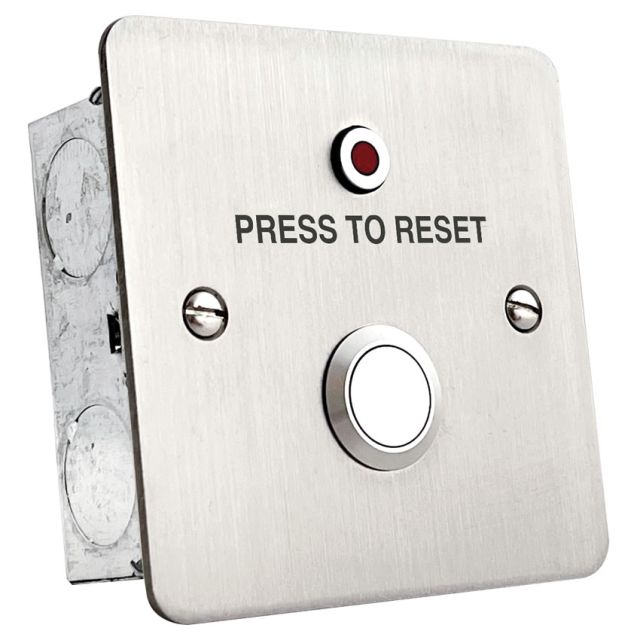

Customisable button with re-assurance LED and sounder

Flush fitting stainless steel unit with a vandal resistant button, re-assurance LED and sounder. This is a non-latching (momentary) button with single pole normally open contacts. Separate terminals are provided for the LED, sounder and button. The LED and sounder are 12 vdc operation.
Permanently lasered with your own choice of text, please specify text required - 45 characters maximum..

• Led Current - 20mA@12vdc
• Switch Contacts - Single pole normally open 2A@ 30vdc
• Sounder Current - 40mA @12vdc
• Visual Indication - 1 x Red LED
• Integral Sounder Level - 70db @ 10cm
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Permanently laser marked
• Ideal for hygienic environments
• Dimensions - 86 x 86 x 2mm - Facia
• 38mm galvanised back box supplied
• Surface mount using S0610-38
• Weight - 0.25kg
• IP Rating - IP65 front side contact area
• Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
