Brushed Brass Press to Call button with LED and sounder
£86.31
Ex Vat
In stock
Product code
S1705BR
Please Note: Contact us for stock availability, lead time can be up to 2-3 weeks.

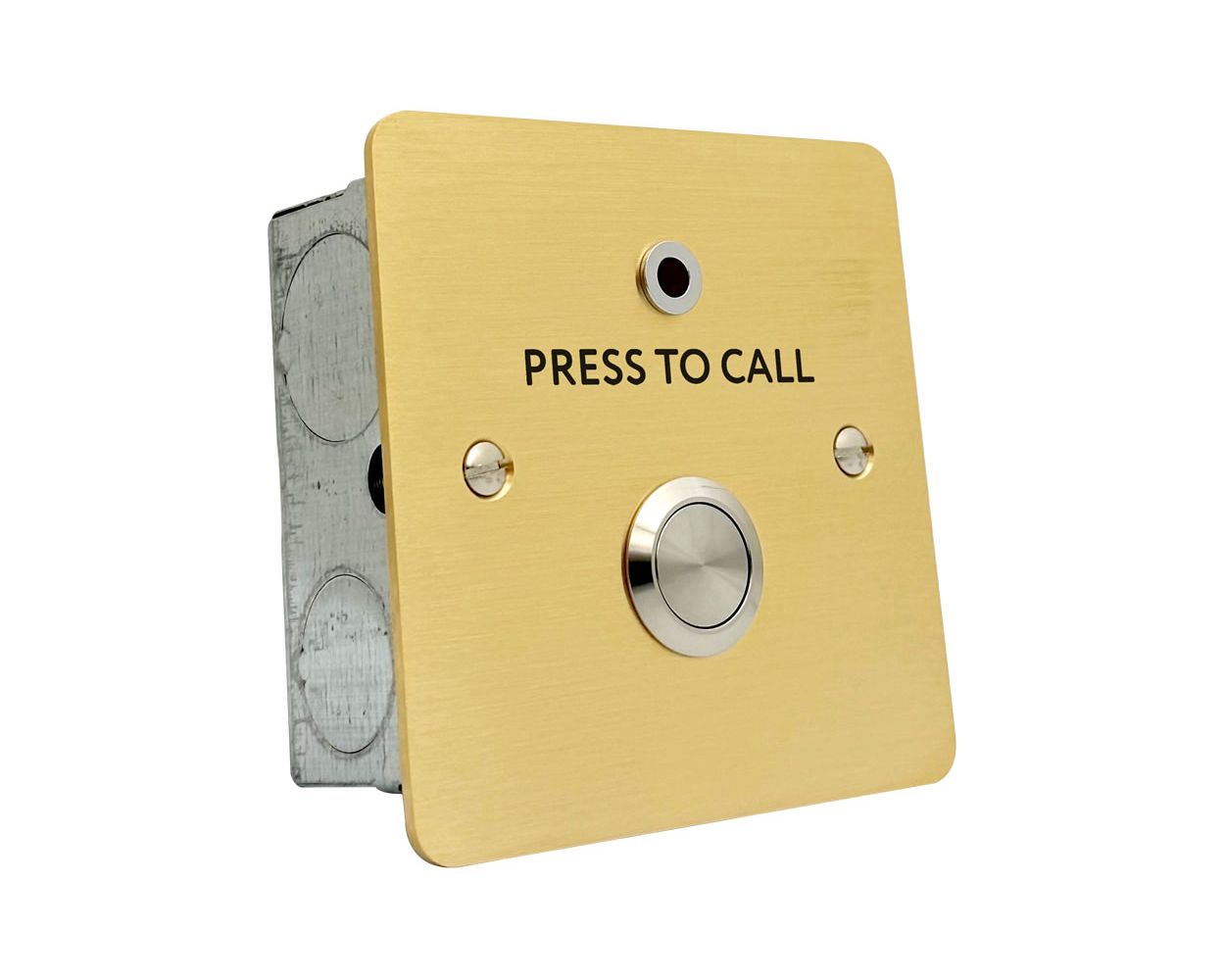

Brushed brass flush fitting PRESS TO CALL unit with vandal resistant button, re-assurance Red LED and sounder. This is a non-latching momentary button with single pole normally open contact. Separate terminals are provided for the LED, sounder and button. The LED current limit resistor is provided for 12vdc operation.
Specification- Led Current - 20mA@12vdc
- Sounder Current - 40mA@12vdc
- Switch Contacts - Single pole normally open 2A@ 30vdc
- Visual Indication - 1 x Red LED
- Integral Sounder Level - 70db @10cm
- Tamper - N/A
- Material - Brushed Brass
- Dimensions - 86mm x 86mm x 2mm - Facia
- Customised versions available on request
- 38mm galvanised back box supplied
- Weight - 0.27kg
- IP Rating - IP44 front side contact area
- Approvals - CE and RoHs compliant
Weather gaskets for the rear of plates, anti tamper screws are available, see related products below.
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1705BR |
| Associated Product Codes | S1705BR |
| Warranty | 3 Years |
| - |  Installation Instructions for S1705BR |
| - |  Product Information Sheet for S1705BR |
