8 way indicator Red/Green LEDs & sounder
£78.93
Ex Vat
In stock
Product code
S1782PRG

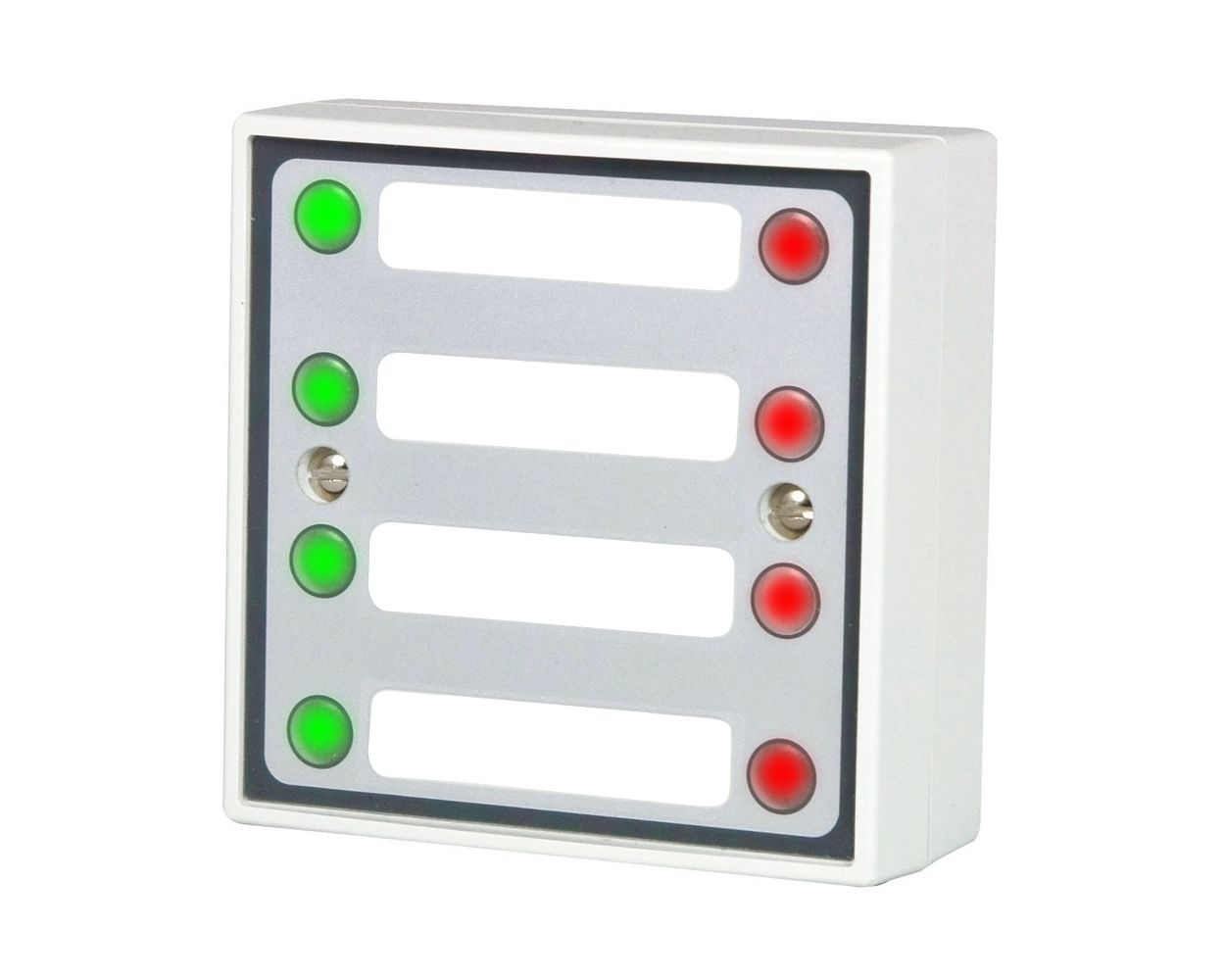

8 way indicator Red/Green LEDs & sounder
A wall mounted 8 way Indicator unit with sounder in white ABS complete with a single gang low profile mounting box and a scratch resistant decal. There are separate drive inputs for both the individual lights and the sounder. There are 4off red and 4off green LEDs. The LEDs and sounder current limit resister is provided for operation at 12vdc.
We will label the facia with words of your choice or supply it blank. Please see More Information tab for "Text Requirements" download sheet.
Specification
Specification
- Led Current - 17.5mA@12vdc
- Sounder Current - 25mA@12vdc
- Switch Contacts - N/A
- Visual Indication - 8 x High brightness LEDs 4 x green 4 x red
- Integral Sounder Level - 70db @10cm
- Tamper - N/A
- Material - White ABS
- Weight - 0.13kg
- 87mm x 87mm x 36mm (Surface mount)
- Back box supplied for surface mount
- Approvals - CE and RoHs compliant
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Mark resistant decal
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1782PRG |
Associated Product Codes | S1782PRG |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
- | ![]() |
