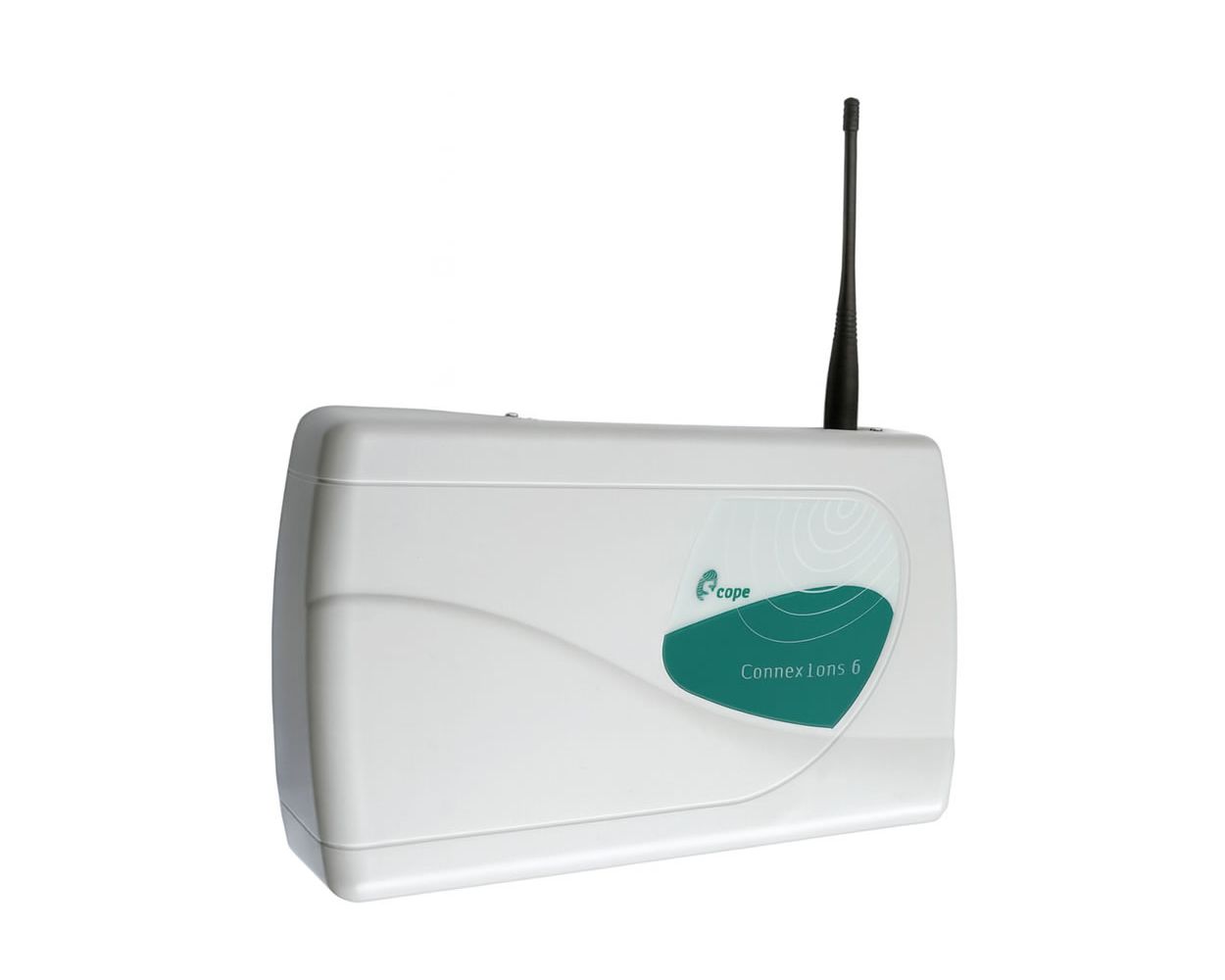

240vac Transmitter, two serial inputs 1W output

This mains powered transmitter is ideally suited to large multizone systems that require alpha numeric pagers.Its modular high-performance interfaces enable robust connectivity to many different types of host device, including: internal telephone, PC network – Ethernet (optional), RS232, RS485, USB serial interfaces, and dry-contacts and voltage triggers.
There is also an internal protocol conversion option, which enables the translation of incoming RS232 data from host hardware into paging data, providing paging from various fire, intruder, nurse call, building management systems etc.
The basic unit comes with two RS232 ports and eight dry contact inputs, which enables the system to be hard wired to anything ranging from an alarm control panel to a doorbell.
We supply Connexions systems configured with default settings and which can support up to 4-digit pager numbers as standard (9999), enabling future expansion.

Features

• Working at UHF frequencies gives an extraordinarily high degree of reliability for transmissions in commercial environments, whilst using very small and unobtrusive antennas
• Standard model has two RS232 ports and 8 volt-free trigger inputs
• Optional telephone interface with voice prompts and programmable text messaging (programming pack required)
• Connex Page PC paging option which can access multiple Connexions transmitters over LAN or VPN
• Optional Internal Protocol Conversion module to enable data from third party panels to be paged. Most major fire panels, security panels and nurse-call systems are supported (phone for more details)
• High quality transmitter modules provide rock-solid RF performance
• Ranges of up to a mile are possible with the basic antenna supplied, external antennas and transponders can be added to improve coverage on difficult sites
• UHF POCSAG signaling format ensures excellent propagation even in difficult environments
• Frequency Range: 446.000MHz - 469.700MHz
• RF Output Power: 1 watt maximum
• Power requirement: 90-240vac <0.5A 50/60Hz
• Dimensions: 190 x 335 x 70mm (H) 355mm with 1/4 wave antenna
