Weatherproof flame detector voice Sounder 8-28Vdc

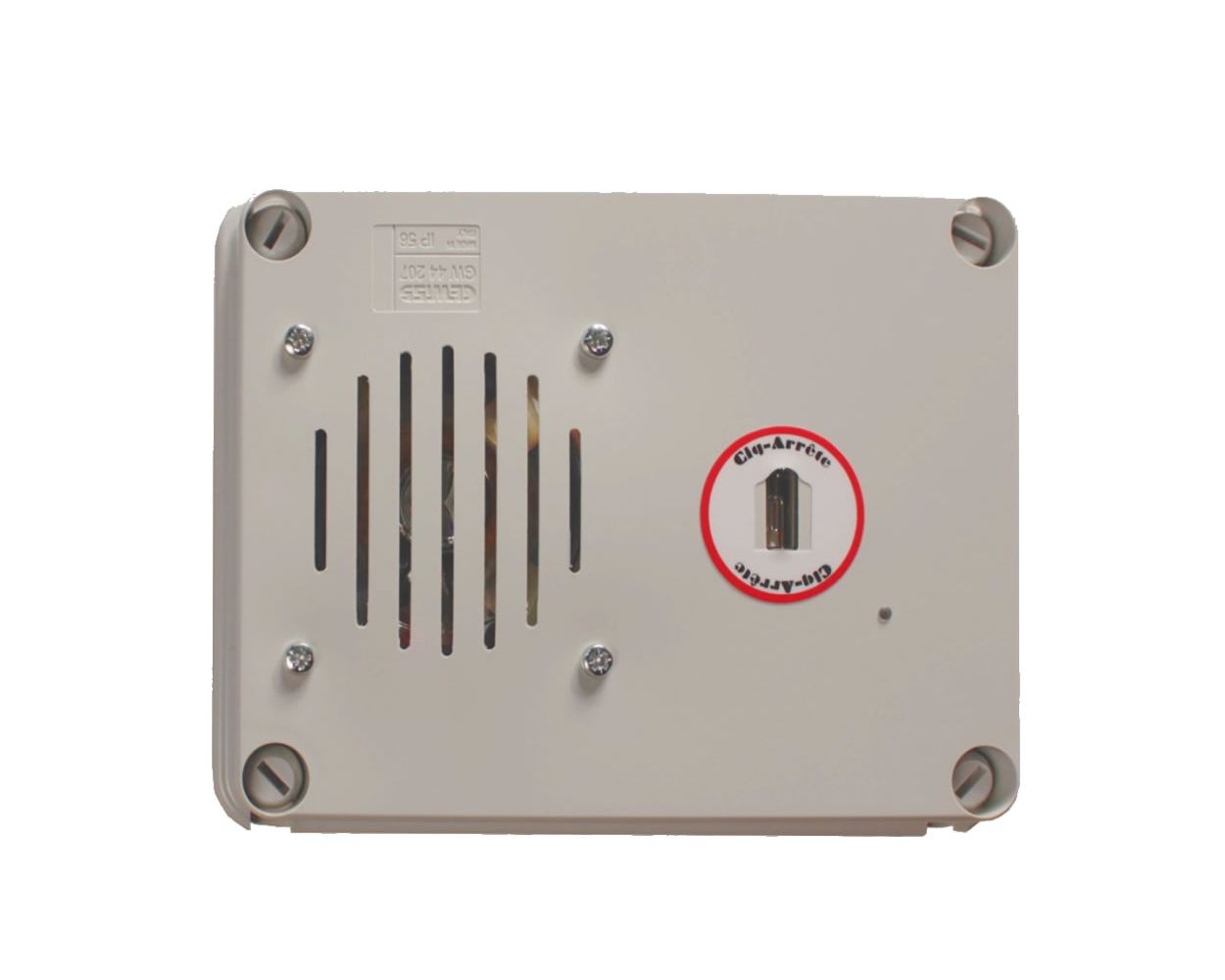

The weatherproof CSA-FDW24 SD Evolution is designed for the detection of unauthorised smoking in external areas and will detect a flame lighting a cigarette with 120 degree field of view. The module is designed for single applications, and will detect a 25mm cigarette lighter flame at 6 metres within 1 second. This system is specifically designed to be installed outdoors and carries a IP54 rating.
Typical applications include open areas, building entry / exit points, used in hospital entrances, ambulance bays, factory gates, reception areas, school shelters and many more public places. Fully programmable with a simple hand held remote CSA-IR2.

• Powered by 8-28Vdc or by 4 x AA batteries (not supplied)
• Plays pre-programmed voice files
• Housed in a IP54 weatherproof box
• Up to 100 messages can be programmed
• Selectable time delays between messages
• Hi-Resolution voice playback
• Cleaners Mode preset message feature
• Dimensions 198L x 152.5W x 76.2H mm
• Weight 0.73kg

Please note: You will require a remote control part number CSA-IR2 to operate this product. The remote control must be purchased separately. One CSA-IR2 can control multiple units. You do not need one remote per unit.

If you want to put your own message onto the CSA-FDW24 SD the file needs to be: PCM signed, 16 bit, 16000Hz, 256kbps.
