Two position momentary action keyswitch, Random key numbers
£72.24
In stock
Product code
S1709SMR

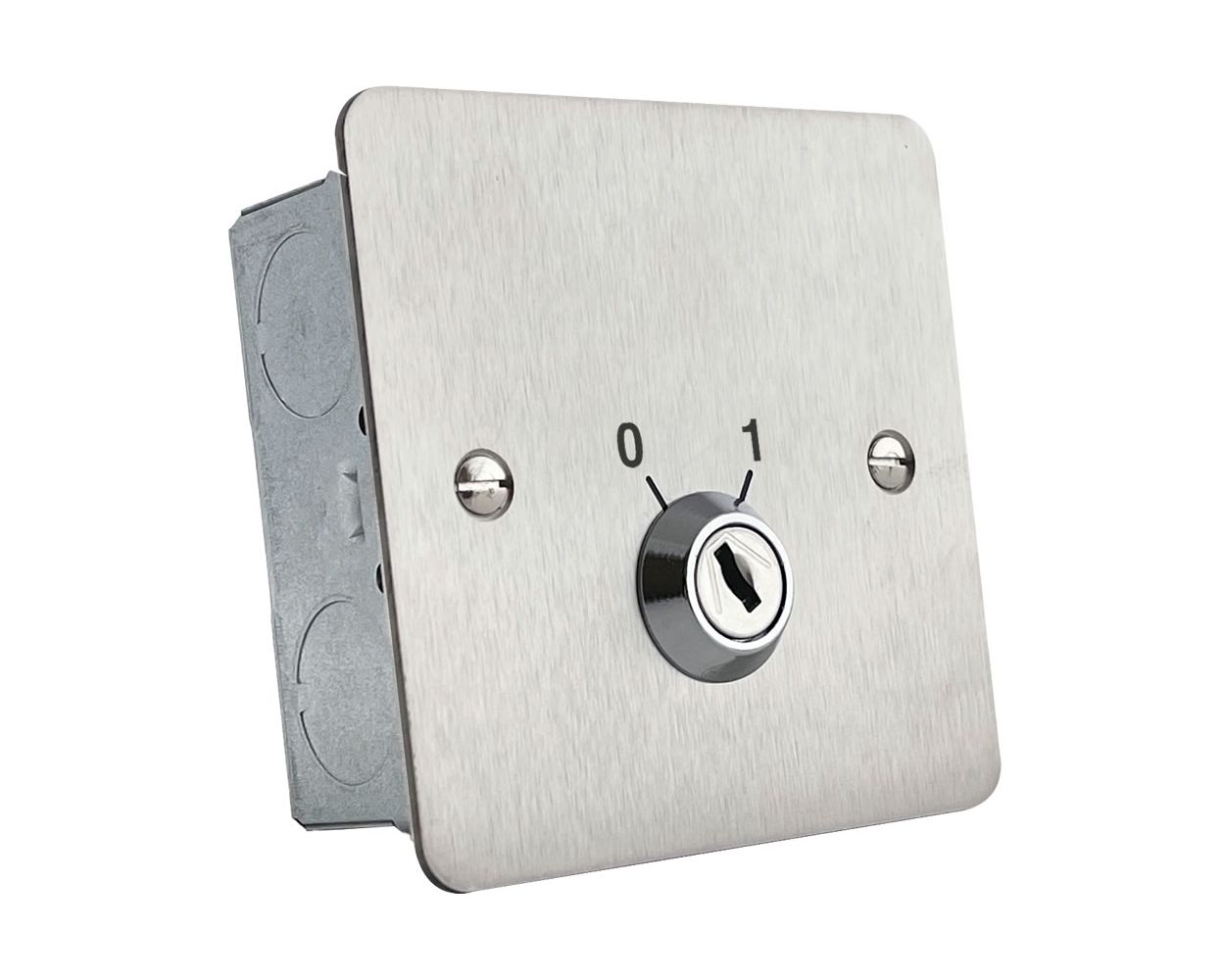

Two position momentary action keyswitch with random keys Stainless steel
Flush fitting stainless steel two position keyswitch with Random key numbers. This is a double pole unit with change over contacts. The keyswitch on this version is of the spring bias momentary action type.
Specification- Led Current - N/A
- Switch Contacts - 1 x N/O 1 x N/C both 500mA @30vdc
- Sounder Current - N/A
- Visual Indication - N/A
- Integral Sounder Level - N/A
- Tamper - N/A
- Two keys supplied with random key numbers
- Material - 316 Grade Stainless Steel
- Text - Permanently laser marked
- Dimensions - 86 x 86 x 2mm - Facia
- 38mm galvanised back box supplied
- Weight - 0.28kg
- IP Rating - IP65 front side contact area
- Approvals - UKCA and CE marked, ROHS compliant
Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1709SMR |
| Associated Product Codes | S1709SMR |
| Warranty | 3 Years |
| - |  Installation Instructions for S1709SMR |
| - |  Product Information Sheet for S1709SMR |
