Triple Double Pole Relay Modules
From
£36.48
In stock
Product code
S342-3-CF
Models available:
S342-3 - 12vdc powered
S342-3-24 - 24vdc powered
Select your required option from the drop down above.

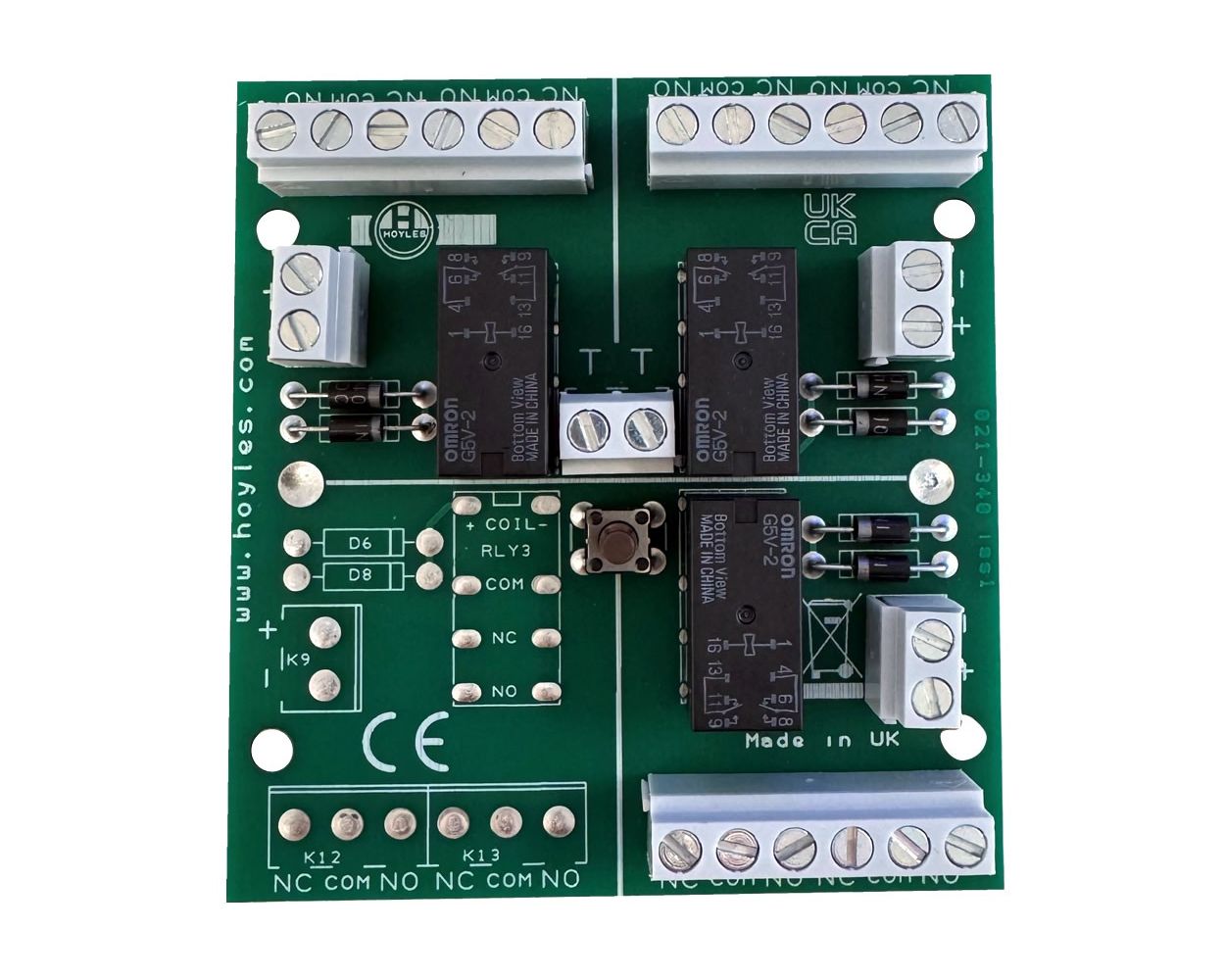

Three completely separate double pole change over relays on a single PCB.
- S342-3 Requires 12vdc supply at 20mA per relay
- S342-3-24 Requires 24vdc supply at 20mA per relay
- Contacts Rated at 2amp
- Volt free DPCO contacts
- Four mounting holes provided for more permanent fixing
- Screw terminals for easy connection
- Diode protection for polarity and coil back emf
Relay Dimensions - L80 x W74 x D16mm
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S342-3-CF |
| Associated Product Codes | S342-3, S342-3-24 |
| Warranty | 3 Years |
| - |  Installation Instructions for S342-3-CF |
| - | Product Information Sheet for S342-3-CF |
