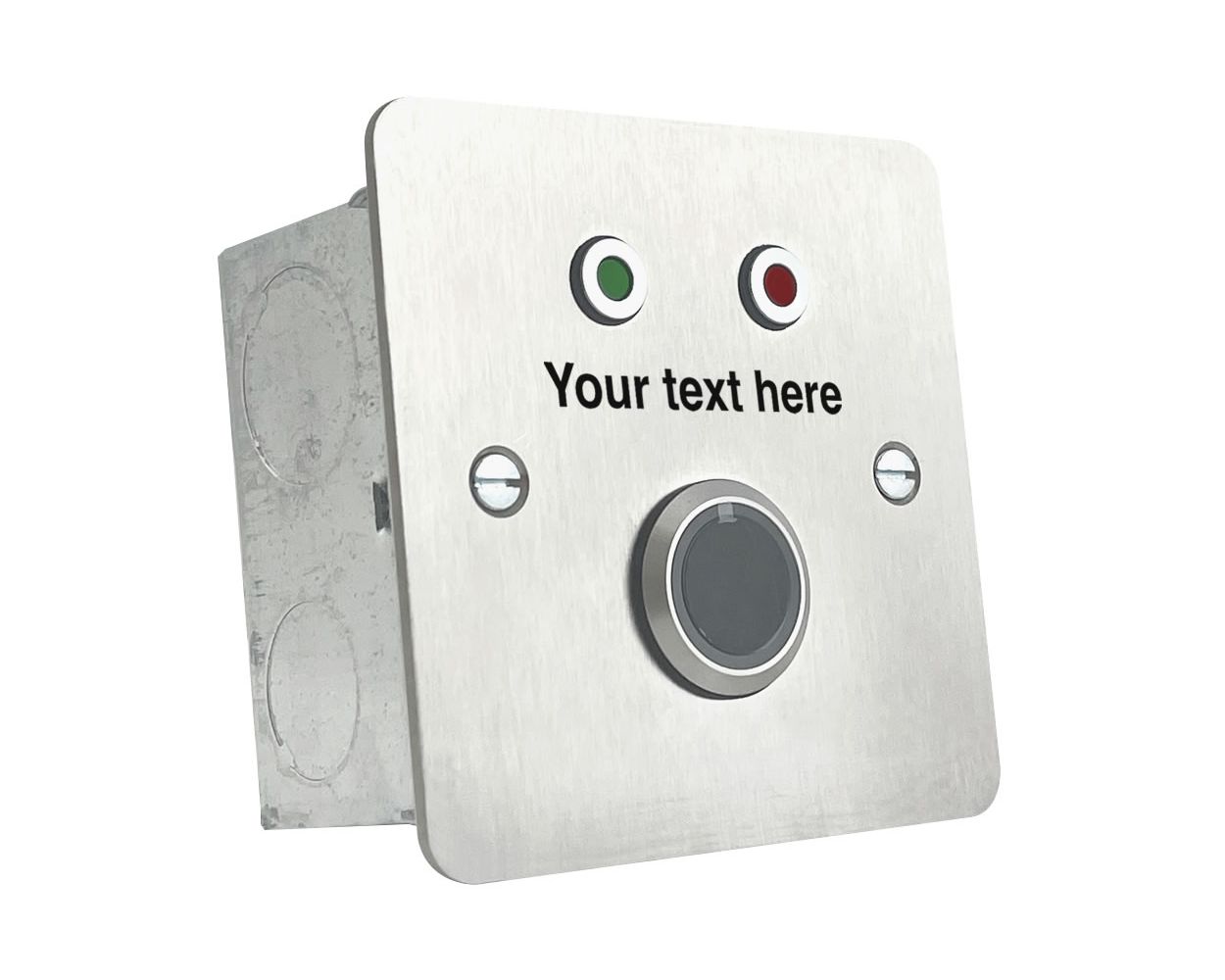

Touchless RTR with Red/Green LEDs and sounder custom text

Door Status indicator with sounder, Touchless Infra Red request to release sensor together with one red and one green LED on a single gang stainless steel plate. Specifically designed for use with our range of Interguard door interlock controllers. When used with an Interguard, the LEDs indicate the status of the relevant door. The touchless sensor is a hygienic alternative to the traditional push button.
Permanently laser marked with text of your choice. Specify text required when ordering - 45 characters maximum.

Specification

• Led Current - 20mA per LED@ 12vdc
• Switch Contacts - Momentary N.O. 200mA @24vdc
• Sounder Current - 40mA @ 12vdc
• Visual Indication - 1 x red LED 1 x green LED
• Integral Sounder Level - 90dB@10cm
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Text - Permanently laser marked
• Dimensions - 86mm x 86mm x 2mm - Facia
• 47mm galvanised back box supplied
• Surface mounted using part no. S0610-50 listed below
• Weight - 0.26kg
• IP Rating - IP65 front side contact area
• Approvals - CE and RoHs compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
