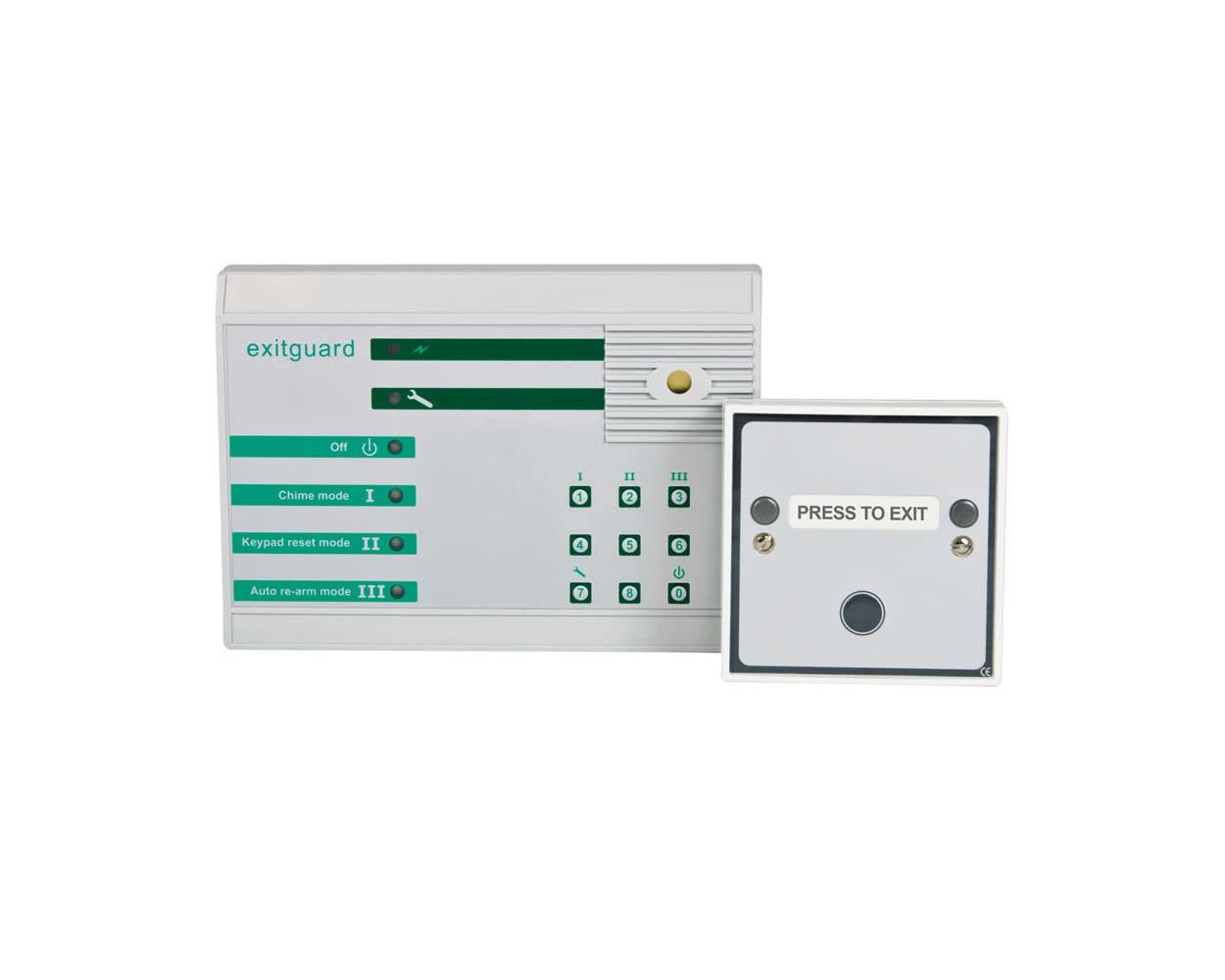

Staff Pass Door Alarm Kit
Staff Pass Door Alarm kit for frequently used doors
The 'Floor to Store' door alarm kit provides an alarm for a door where staff need to frequently pass though. Ideal where the door cannot be locked but needs to be alarmed. E.g. a store room door which is on a public fire exit route or a retail shop floor needing access to a stock room. Staff simply enter a 4 digit code which temporarily isolates the alarm to allow the member of staff to pass though. Pressing the 'Push to Exit' button on the secure side of the door allows the member of staff to pass back through the door without triggering the alarm. If the door is opened without entering a correct code, or pushing the button, the integral 108db sounder will be heard.
The door alarm kit uses the 'Staff Pass' feature of our standard EX200 Series Exitguard door alarm and comes complete with a 'Push to Exit' button.
- Keypad control
- Dimensions - Controller 175 x 125 x 60 tapering to 50mm
- Dimensions - Push button 87 x 87 x 36mm
- Sounder 108db maximum
- Six selectable alarm tones to suit your environment
- Front and back acting tamper switch
- Manager code restricting users from changing various features
- User pass / reset code
- Bleep in off option reminds users that Kit is switched off
- Alarm strobe for visual alarm indication
- Alarm relay outputs on EXF2S-DK and EXF2S-MK
- Battery condition monitor on EXF2S-BK
- On - off monitor relay on EXF2S-DK
- Output for Multiguard connection
- Robust ABS enclosure
Supplied with installation instructions, wall fixings, door contact with 1 metre of cable and door warning label.
Staff Pass Door Alarm Kit Series Model Comparison
Code | EXF2S-BK | EXF2S-DK | EXF2S-MK |
Battery Monitor | Yes | No | Yes |
On/Off Monitoring Relay | No | SPCO 1A 30vdc | No |
Supply Voltage | Battery or 7v -14vdc | 12vdc -14vdc | 220/240vac |
Supply Current | 35?A quiescent 80mA max | 45mA quiescent 155mA max | < 0.5A |
Batteries(supplied) | 6 x AA alkaline | No | 6 x AA alkaline |
108db Sounder | Yes | Yes | Yes |
Alarm Relay Contacts | No | SPCO 1A 30vdc | SPCO 1A 30vdc |
Auxiliary Power O/P | No | No | 200mA @12vdc |
Country of Origin | UK |
---|---|
Condition | New |
SKU | EXF2S |
Associated Product Codes | EXF2S-BK, EXF2S-DK EXF2S-MK |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
- | ![]() |
