Six Zone Assistance Call Panel for Toilet, Pool or Sauna Alarm

£376.96 Ex Vat
In stock
Product code
AA31110D

Multizone Toilet, Pool or Sauna Alarm



Please note: For orders of AA31110D being shipped outside of the UK, the back up battery will not be supplied due to shipping restrictions.

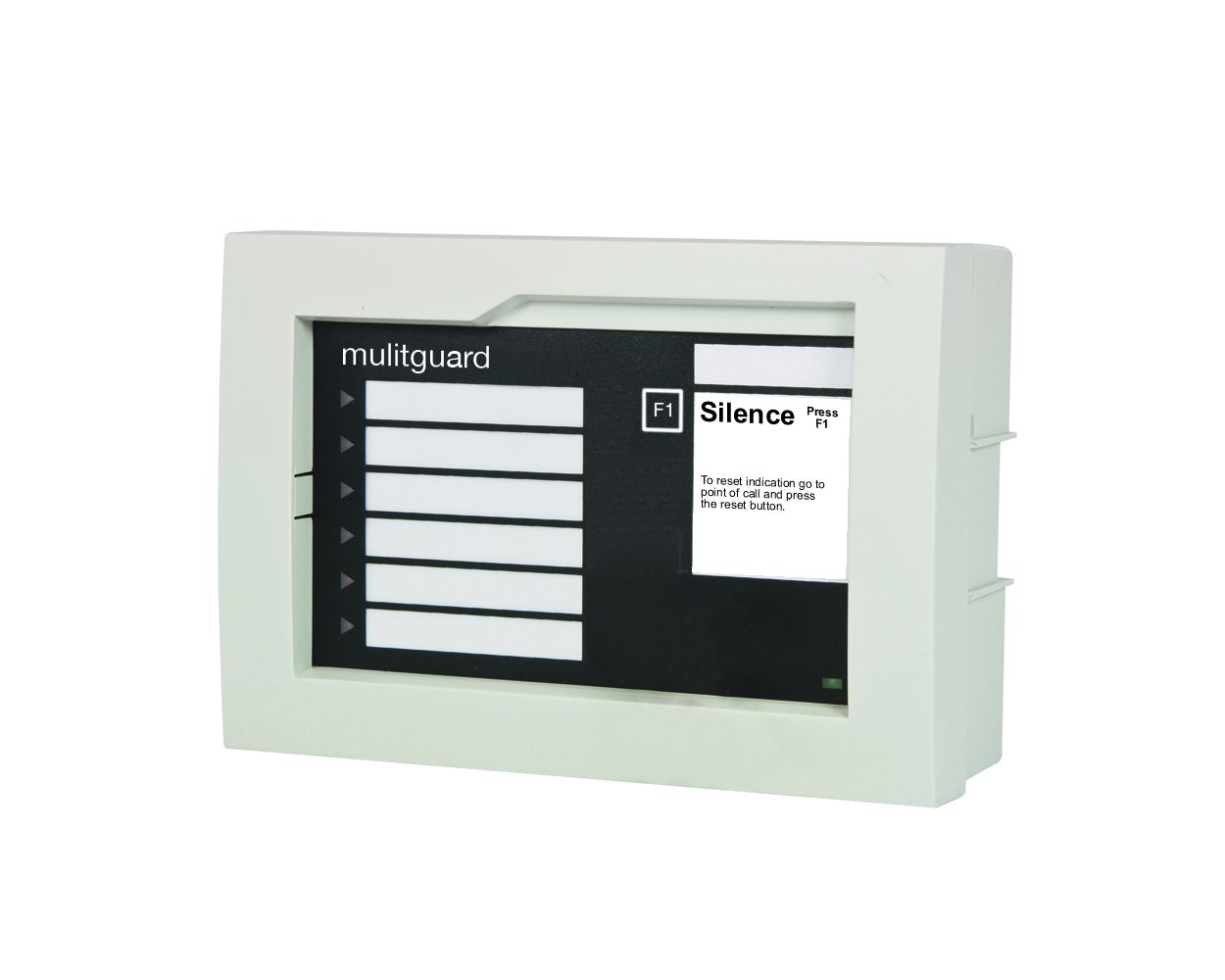

The Multiguard Assistance Call Panel AA31110D is designed for larger premises that require central indication of alarm calls from toilets, swimming pools, sauna or steam rooms. The system caters for up to 6 zones and is designed to give dual re-assurance at the point of operation. If you require a system with more than 6 zones, simply stack systems together or call us for further options.


The Multizone controller should be sited where staff are located who can respond to an emergency call. An integral PSU and standby battery are included.

How the Multi Zone Pool / Toilet Alarm system works:
  • To generate a call the user simply operates the poolside call point
  • An audible/visual warning is given by the controller and sounder beacons connected to the system identifying the relevant zone
  • Sounder beacons are silenced by pressing the silence button on the controller
  • Panel bleeps every 60 seconds and beacons continue to flash until both the activated call point controller are reset
  • The controller will then reset automatically

  • Components required to build a multi zone TOILET system
    1 x AA31110D Controller

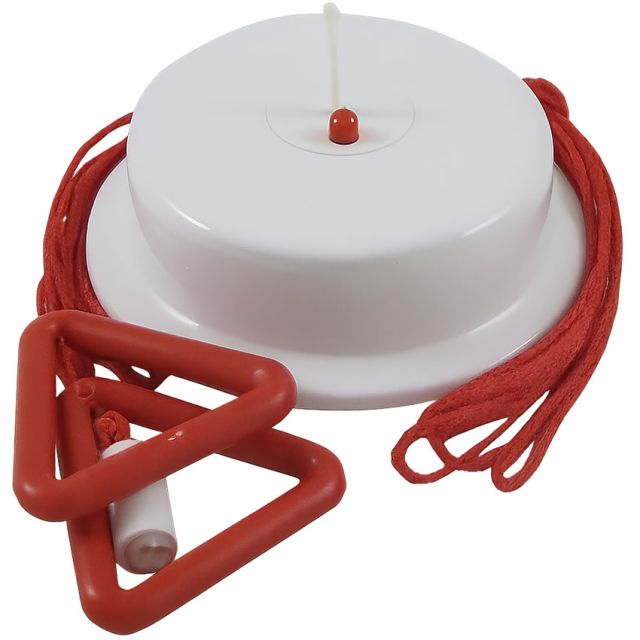

    at least 1 x S1600-R Non-latching Pull Cord with LED or S1703P Non-latching Call buttons with LEDs
    at least 1 x S1708PR Plastic Reset buttons or S1708S Stainless Steel Reset Buttons
    at least 1 x S1778PR Plastic Overdoor Light and sounder or S1778SR Stainless Steel Overdoor Light and sounder

    Components required to build a multi zone POOL ALARM system
    1 x AA31110D Controller
    at least 1 x WRP2-B-11 Latching waterproof call points or S1711WGB Latching twist to reset call buttons
    at least 1 x958CHX1701 Sounder beacon Amber lens with deep white base

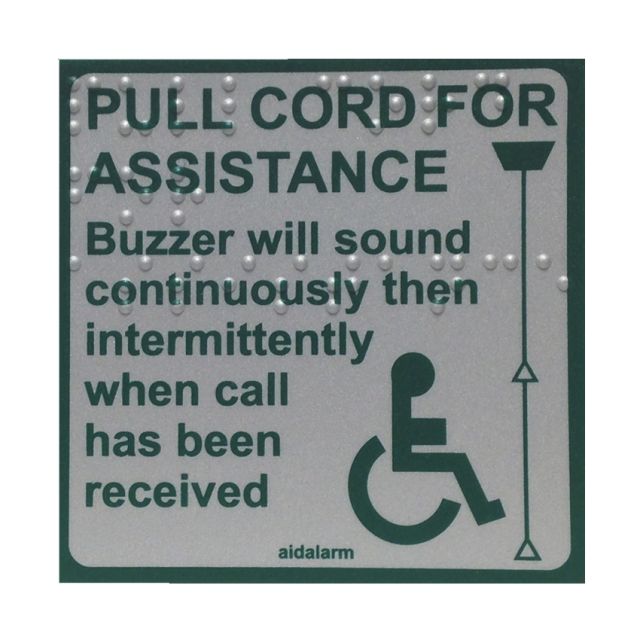

    1 x LAB35200 Call point signs

    Approvals - UKCA and CE marked, ROHS compliant. Dimensions 197 x 137 x 72mm

More Information
Country of Origin UK
Condition New
SKU AA31110D
Associated Product Codes AA31110D
Warranty 3 Years
- Installation Instructions for AA31110D
- Product Information Sheet for AA31110D
