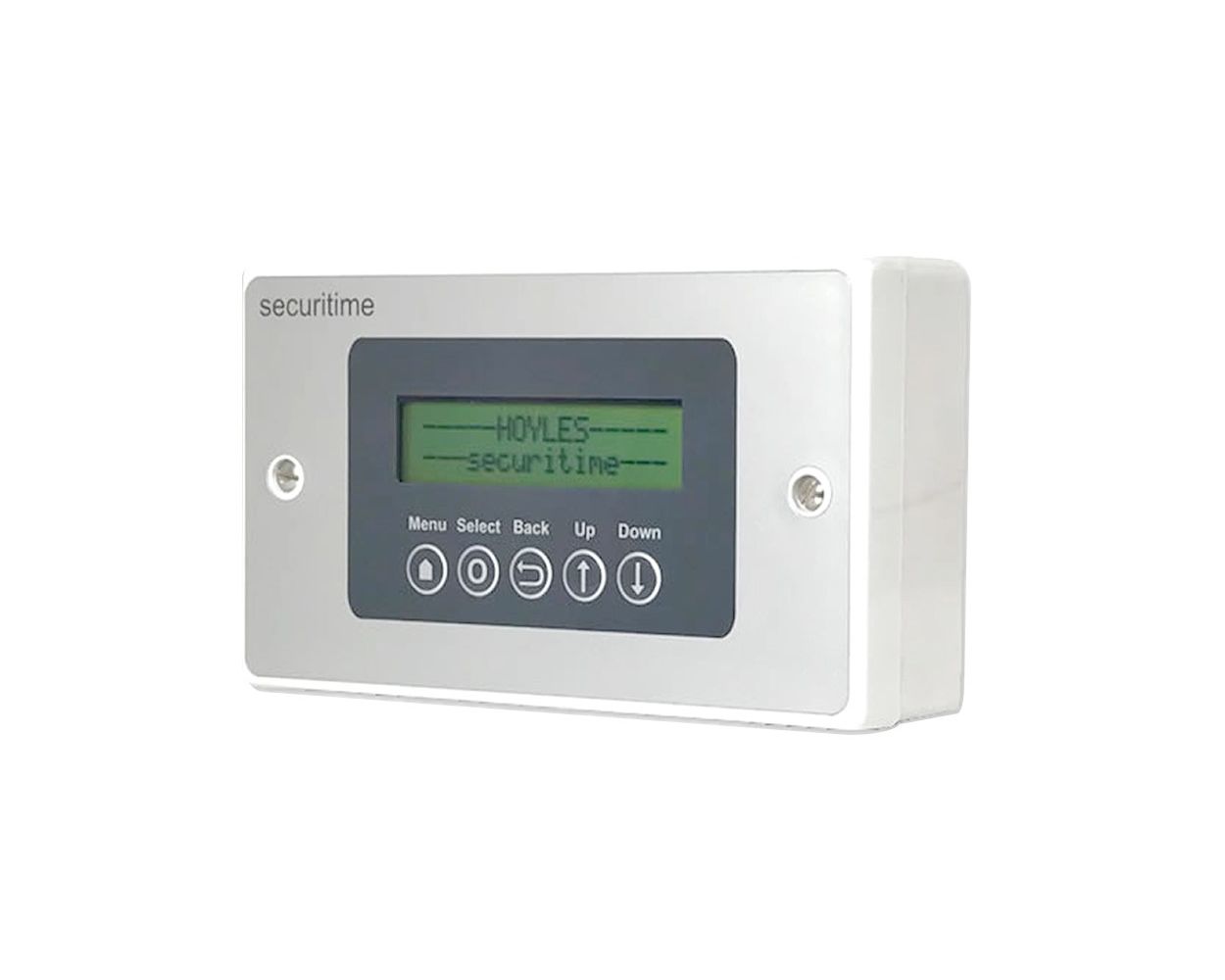

Securitime 12/24vdc time clock and timer
12/24vdc Multi-function programmable time clock and timer
The Securitime is a versatile, secure programmable timer that switches a 12/24 vdc 2A clean contact output relay. With a simple to use interface and a clear LCD display it is ideal for use with access control or any other applications that have time sensitive elements. The timer has a back up battery so even if there is a power cut it will retain the time, date and all the programmed settings. For added reliability the timer automatically calculates the day of the week from the date, adjusts for leap years and automatically updates for summer and winter time.
Specification- 12/24vdc powered
- 2A rated double pole relay output
- 7 programmable timers
- 20 times per programme
- Momentary action or latched relay output
- Timed or switched override function
- Timed I/O function
- Easy to read 16x2 LCD display
- Convenient size, double gang plate
- Accurate to within 2 minutes per year
- Back up battery
- User programme stored in EEPROM, no need to reprogram due to power loss
- Secure code option to prevent tampering
- Automatically adjusts for summer/winter time and leap years
- Dimensions 147mm x 86mm x 22mm with back box total depth is 45mm
Operation: The main operation of the Securitime timer allows the user to programme up to 7 different timers independently of each other so a different programme can be running each day of the week. The timers can be programmed to switch the output relay with up to 20 times per programme, each time can either latch the relay on/off or cause the relay to momentarily switch for up to 1 minute.
Country of Origin | UK |
---|---|
Condition | New |
SKU | TMR100 |
Associated Product Codes | TMR100 |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
- | ![]() |
