Request to Release keyswitch, door status LEDs and Tamper

£82.49 Ex Vat
In stock
Product code
S1718KSW

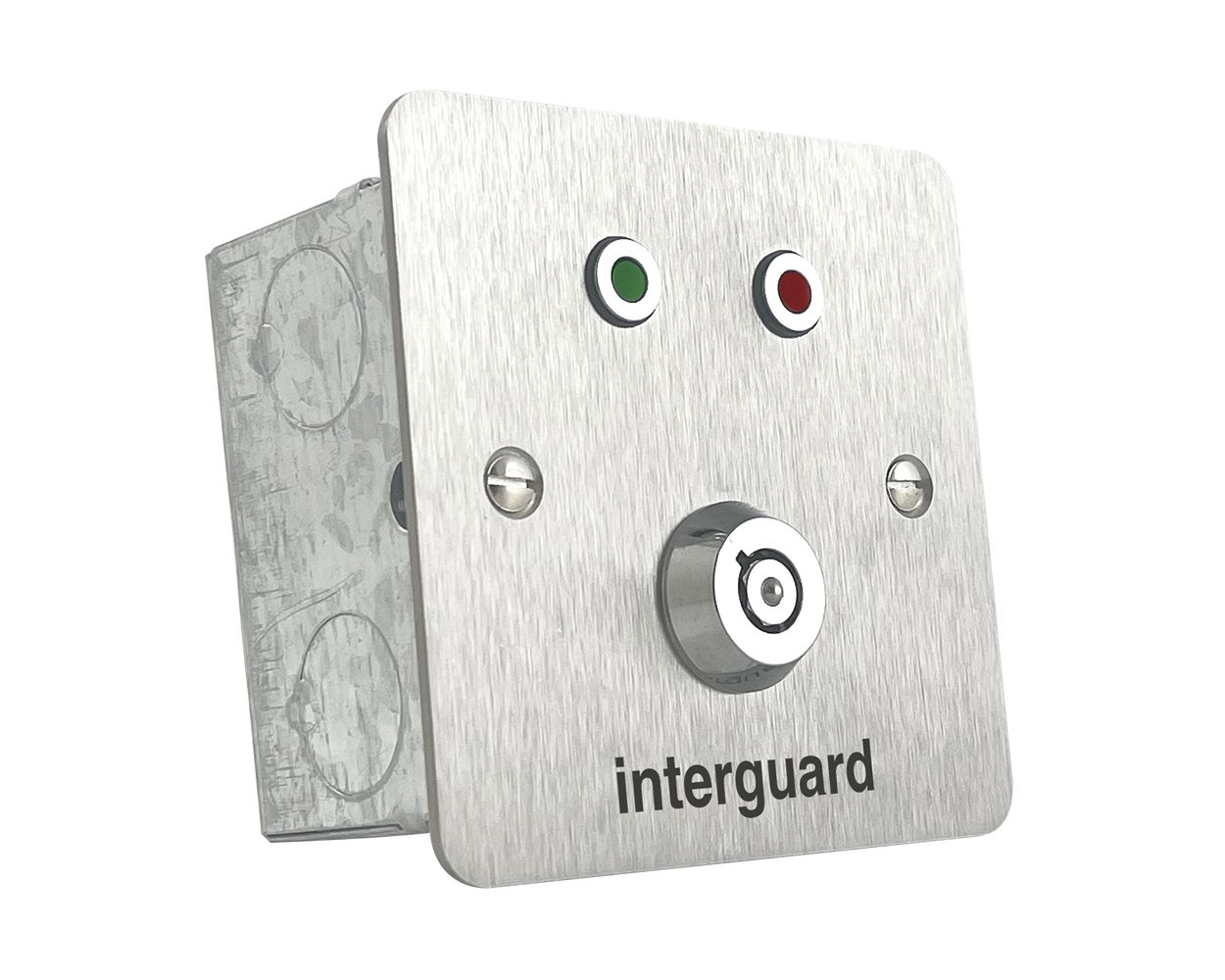

Request to Release high security keyswitch with door status LEDs Stainless Steel

A high security momentary action keyswitch together with one red and one green LED on a single gang stainless steel plate. Designed for use with our range of Interguard door interlock controllers but usable in many other applications. The keyswitch has single pole contacts which are open going closed when the key is turned. The LEDs are terminated for 12vdc operation. High security keyswitch 50,000+ differs.

Specification
  • Led Current - 20mA per LED@ 12vdc
  • Momentary switched +ve
  • High security keyswitch 50,000+ differs
  • Sounder Current - N/A
  • Visual Indication - 1 x red LED 1 x green LED
  • Integral Sounder Level - N/A
  • Tamper - Yes
  • Material - 316 Grade Stainless Steel
  • Ideal for hygienic environments
  • Text - Permanently laser marked
  • Dimensions - 86 x 86 x 2mm - Facia
  • 47mm galvanised back box supplied
  • Weight - 0.30kg
  • IP Rating - IP65 front side contact area
  • Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.


More Information
Country of Origin UK
Condition New
SKU S1718KSW
Associated Product Codes S1718KSW
Warranty 3 Years
- Installation Instructions for S1718KSW
- Product Information Sheet for S1718KSW
