Quad Double Pole Relay Module
From
£45.02
Ex Vat
In stock
Product code
S342-4-CF
Models available:
S342-4 - 12vdc powered
S342-4-24 - 24vdc powered
Select your required option from the drop down above.

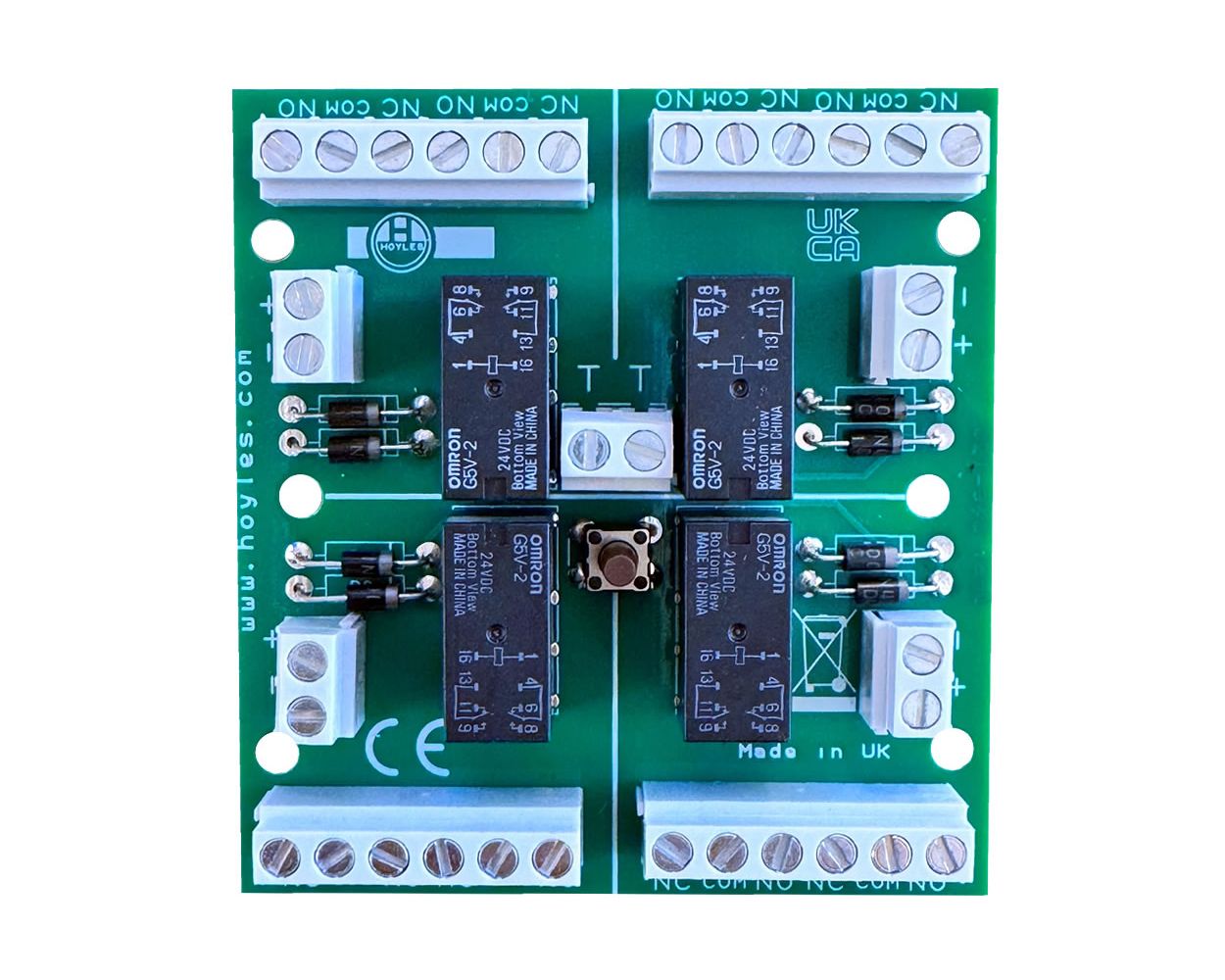

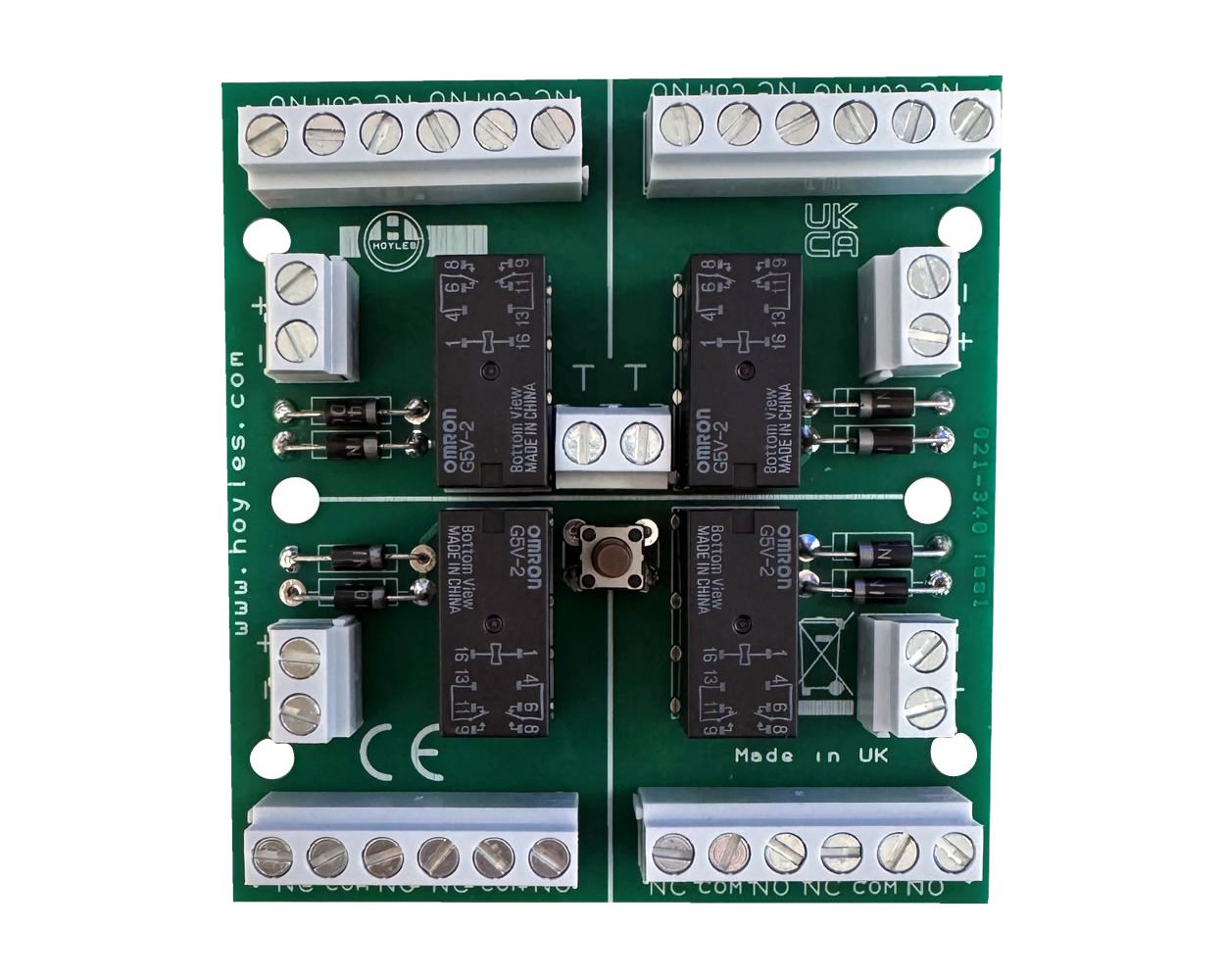

Four completely separate double pole change over relays on a single PCB.
- S342-4 Requires 12vdc supply at 20mA
- S342-4-24 Requires 24vdc supply at 20mA
- Contacts Rated at 2amp
- Volt free DPCO contacts
- Four mounting holes provided for more permanent fixing
- Screw terminals for easy connection
- Diode protection for polarity and coil back emf
Relay Dimensions - L80 x W74 x D16mm
Country of Origin | UK |
---|---|
Condition | New |
SKU | S342-4-CF |
Associated Product Codes | S342-4, S342-4-24 |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
