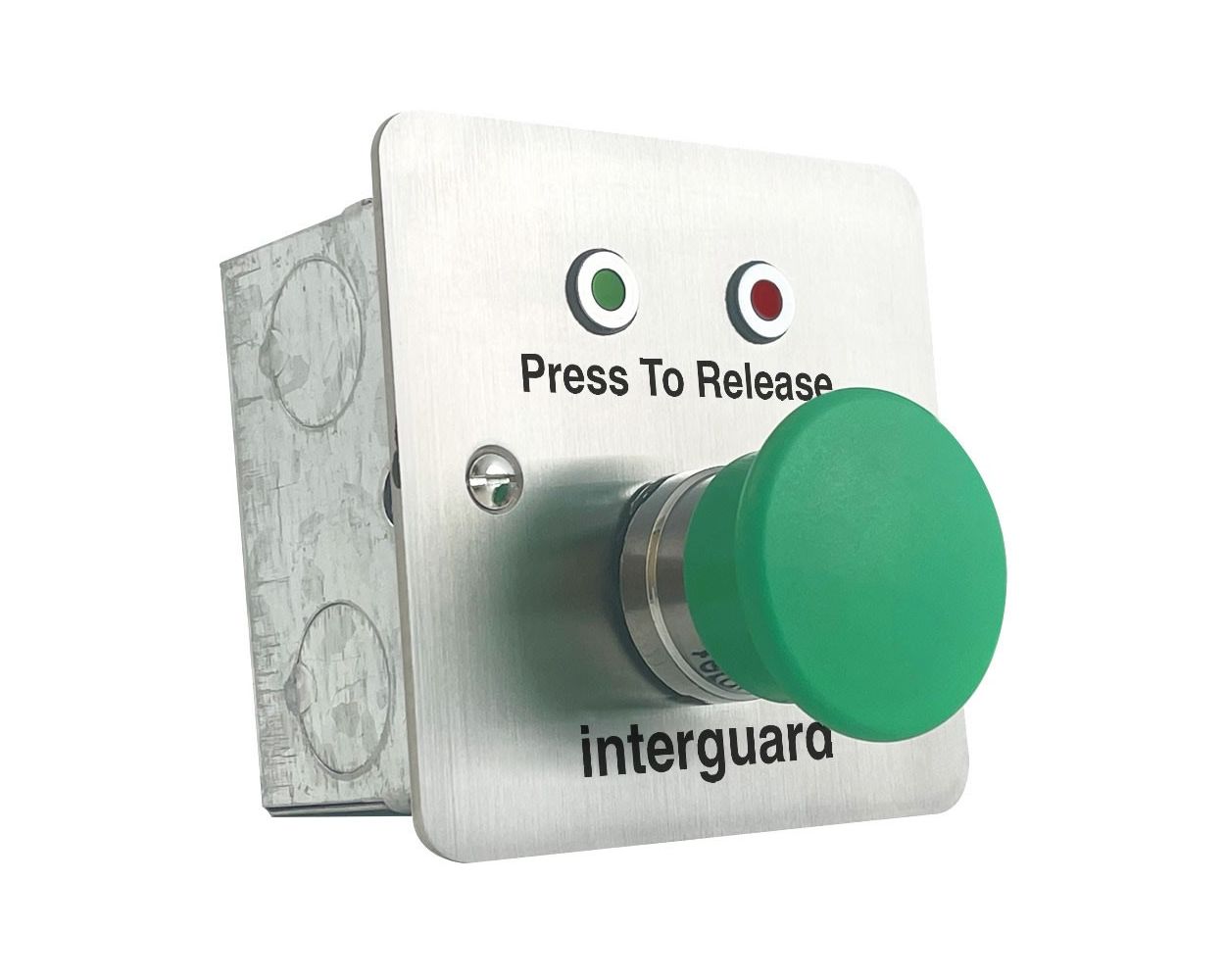

Press to Release mushroom button with LEDs & sounder

A large momentary action mushroom headed push button together with one red and one green LED and sounder on a single gang stainless steel plate. Designed for use with our range of Interguard door interlock controllers but usable in many other applications. The push button has double pole change over contacts.

• Led Current - 20mA per LED @ 12 or 24vdc
• Switch Contacts - 1 x N/O 1 x N/C both 1A @30vdc
• Sounder Current - 40mA @ 12 or 24vdc
• Visual Indication - 1 x green LED 1 x red LED
• Integral Sounder Level - 90db @10cm
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Text - Permanently laser marked
• Dimensions - 86 x 86 x 2mm - Facia
• 47mm galvanised back box supplied
• Weight - 0.44kg
• IP Rating - IP65 front side contact area
• Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
