Press to release button Red/Green LEDs & sounder
£25.68
Ex Vat
Contact us for stock availability
Product code
S1718PRG

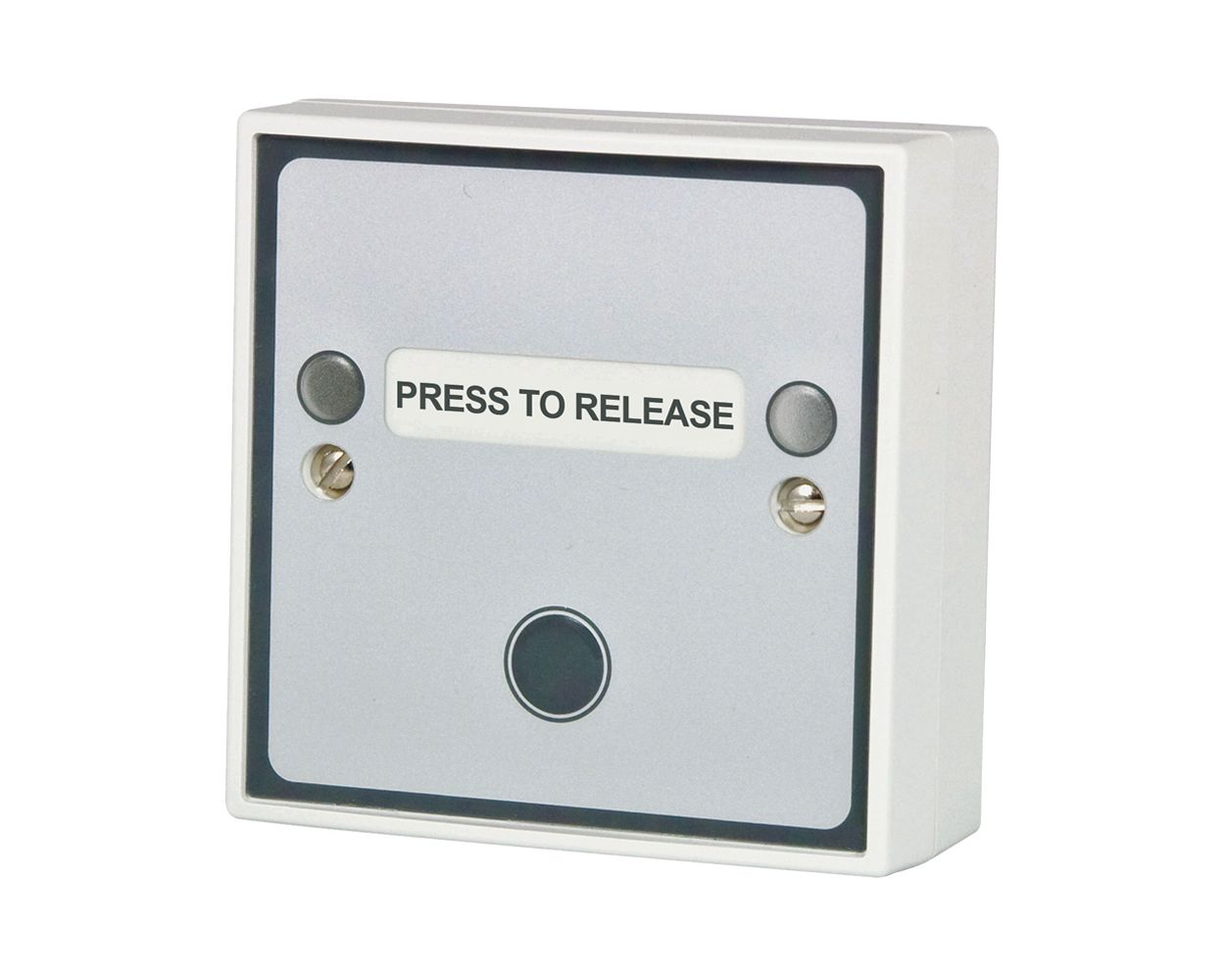

Press to Release button with Red and Green door status LEDs
Press to release button for use with access control systems. This button has two high brightness LEDs, one red and one green. Both are current limited for 12vdc operation.
The pushbutton is rated at 30 vdc 50ma and is therefore not generally suitable for directly releasing door strike or maglocks.
-
Specification
- Led Current - 17.5mA@12vdc
- Sounder Current - N/A
- Switch Contacts - 50mA@12vdc
- Visual Indication - 2 x LEDs one red one green
- Integral Sounder Level - N/A
- Tamper - N/A
- Material - White ABS
- Weight - 0.12kg
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
- Approvals - CE and RoHs compliant
- Dimensions 87 x 87 x 36mm (Surface mount)
- Back box supplied for surface mount
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Mark resistant decal
- Tactile button
- Two high brightness LEDs
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1718PRG |
Associated Product Codes | S1718PRG |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
