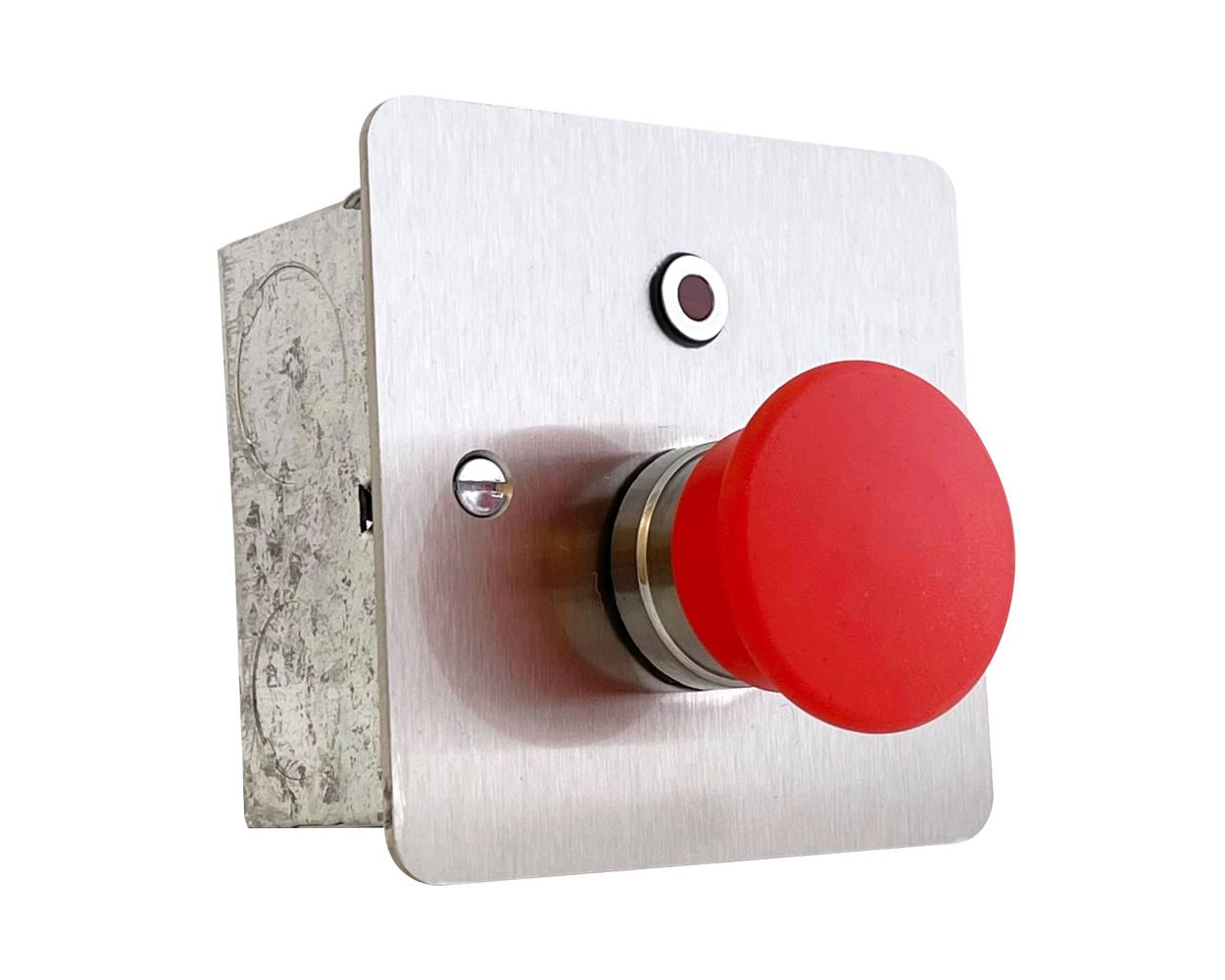

Mushroom headed momentary action button with LED

Mushroom headed momentary action button with LED. Supplied with normally closed and normally open contacts.

• Led Current - 20mA@12vdc
• Switch Contacts - 1 x N/O 1 x N/C both 500mA @30vdc
• Sounder Current - N/A
• Visual Indication - 1 x Red LED
• Integral Sounder Level - N/A
• Tamper - N/A
• Material - 316 Grade Stainless Steel
• Permanently laser marked
• Ideal for hygienic environments
• Dimensions - 86 x 86 x 2mm - Facia
• 47mm galvanised back box supplied
• Weight - 0.34kg
• IP Rating - IP65 front side contact area
• Approvals - UKCA and CE marked, ROHS compliant

Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
