Interguard Programmable Interlock System

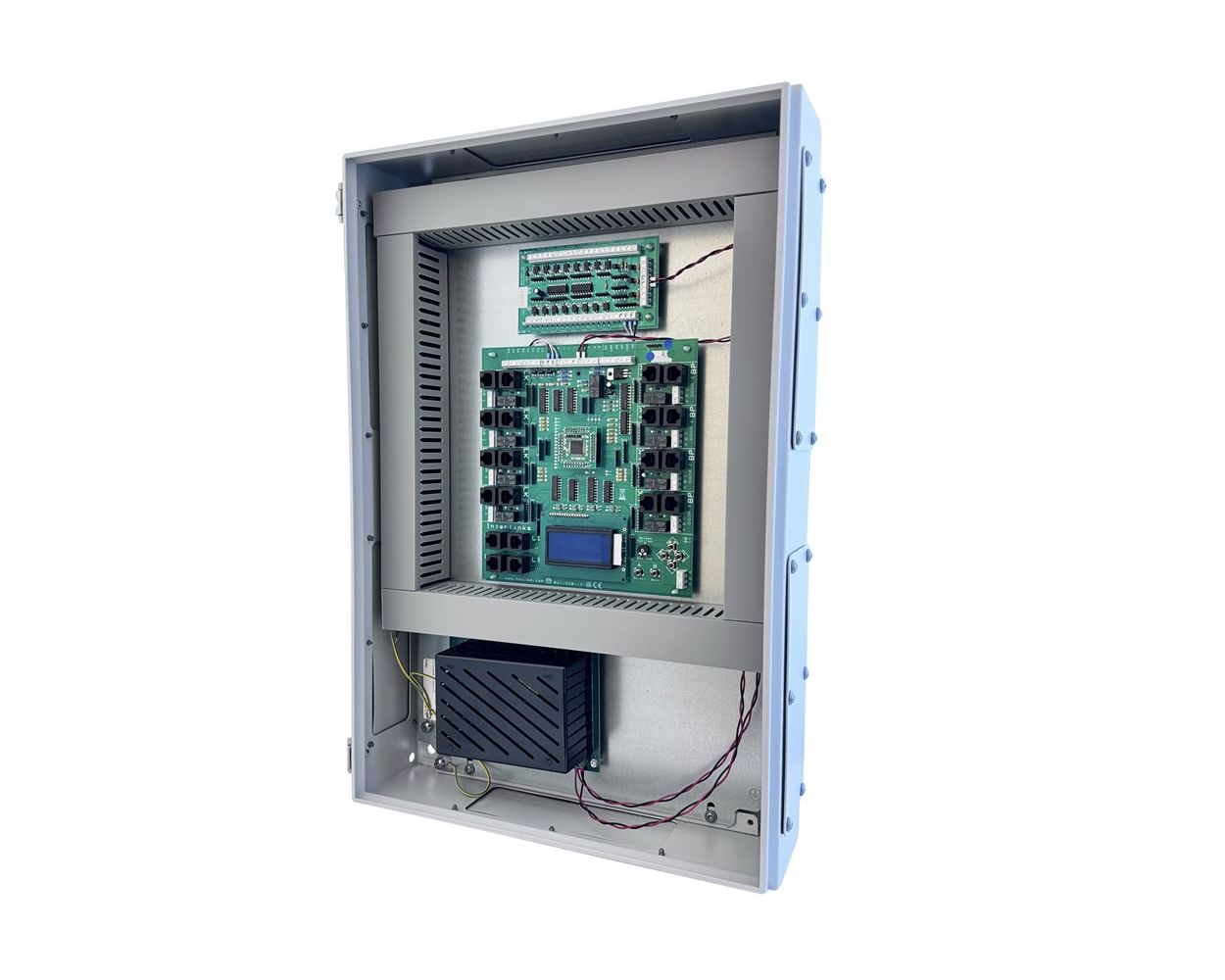

INTERGUARD IGUIC is a fully programmable door-interlock controller available in 4-door and 8-door models. Any combination of doors can be interlocked, and each controller can be linked with up to four additional units to create large or complex systems.

An onboard LCD screen allows quick setup of interlock logic, controller links, timers, and individual door settings such as normally locked or unlocked. The system also integrates easily with third-party equipment including access control, automated doors, and rapid-roller doors.

Each controller connects to a door interface box at each door via two RJ45 cables. Door devices, maglocks, buttons, LEDs, access readers, etc. terminate to the interface using screw terminals. Interface modules can also be supplied in combined enclosures for centralised installation.

Integrated door-status relays enable simple connection to BMS and HVAC systems. Fire-alarm inputs can override operation, either releasing all doors or allowing multiple doors to release while remaining locked. Red and green indicators at each door provide clear user feedback.

A built-in PSU powers the controller, indicators, and door locks.

Please note: For standard IGUIC controllers, one door interface is required for each connected door. The interfaces may be installed individually or grouped in combined four-way or eight-way enclosures, depending on the number of doors and the preferred wiring arrangement.

Specification

• Programmable interlock controller
• Up to 8 doors per controller - depending on model
• Each controller can connect to 4 controllers
• LCD screen for easy programming
• Integral 12vdc or 24vdc PSU - depending on model
• Secure and non-secure interlocking
• Status indication at each door
• Programmable fire alarm input
• Breach indications
• Relay outputs for door status and breach indications
• Programmable global relay
• Fully programmable timers for
- Door open too long - Dwell - Lockdown - Lockdown after use - Privacy


• UKCA and CE marked, ROHS compliant
• Manufactured in the UK

Box Dimensions
IGUIC8-12 or 24 - 600 x 400 x 120mm
IGUIC4-12 or 24 - 600 x 400 x 120mm
IGUICJ-12JB or 24 - 200 x 155 x 80mm
IGUIC-124WJB or 24 - 400 x 400 x 120mm
IGUIC-128WJB or 24 - 400 x 400 x 120mm

A full range of accessories are available
S1718BS - Press to release button c/w LEDs and sounder
S1717S - LED indicators and sounder
MCP-GS-11 - Emergency release call point

Magnetic locks and door contacts available on request

IGUIC Product Compatibility Guide
