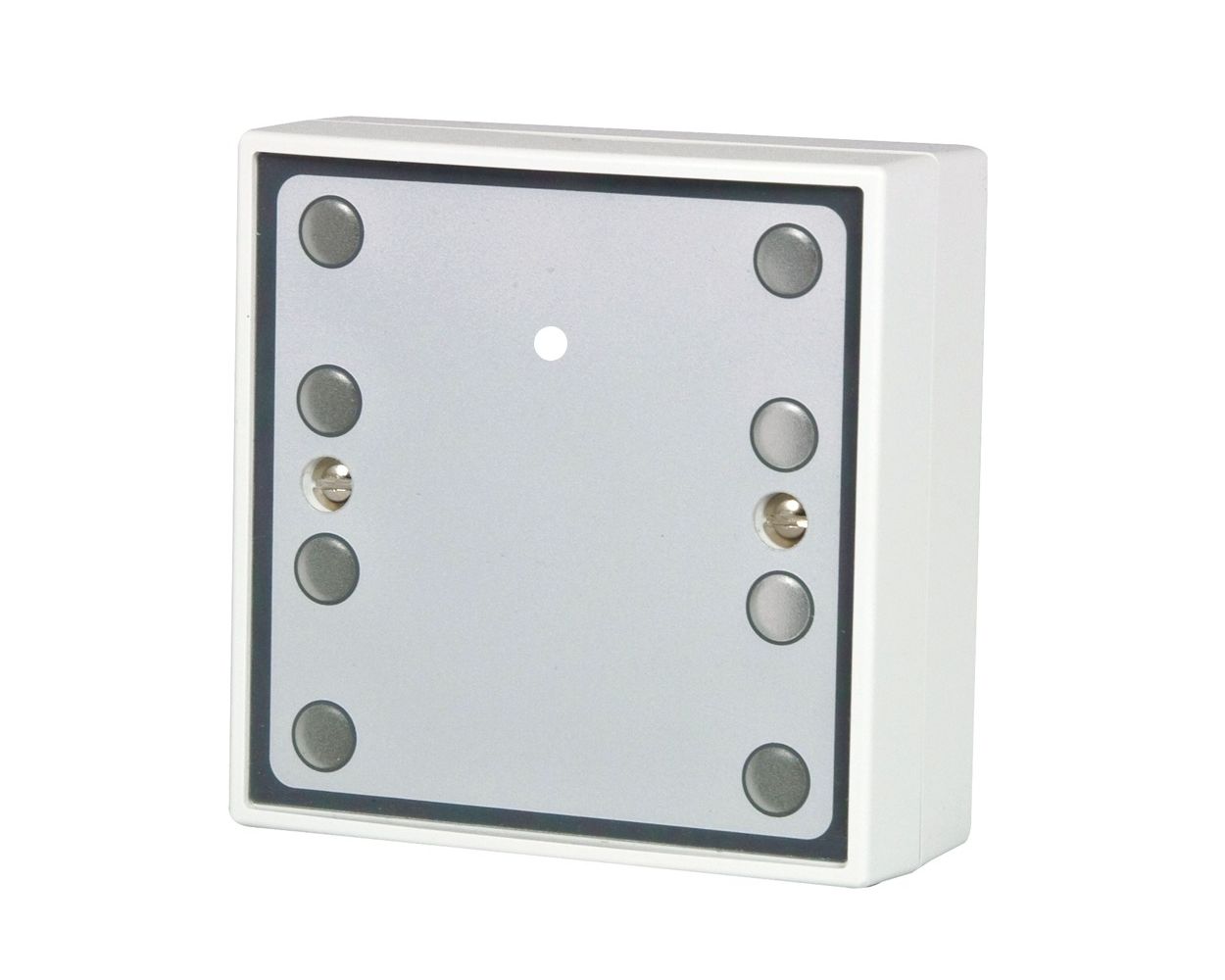

High Power (108dB) sounder with 8 ultra bright LEDs
£46.92
Ex Vat
In stock
Product code
S1788P
High Power (108dB) sounder with 8 ultra bright LEDs
High Power Overdoor Light/Sounder unit. There are separate drive inputs for both the light and the sounder. Housed in a low profile ABS ecnlosure with a scratch resistant decal. Four adjustable tones giving a sounder output at 12vdc up to 108db. LEDs are linked to sounder and strobe in sympathy. Ultra bright LEDs available as Red, Green or Yellow. The LED current limit resistor is provided for 12 vdc operation.
- Specification
- Led Current - 30mA @12vdc
- Sounder Current - 70mA @12vdc
- Switch Contacts - N/A
- Visual Indication - 8 x ultra bright LEDs
- Integral Sounder Level - 108dB @1m
- Tamper - N/A
- Material - White ABS
- Weight - 0.12kg
- 87 x 87 x 36mm (Surface mount)
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
- Approvals - CE and RoHs compliant
- Back box supplied for surface mount
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Mark resistant decal
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1788P |
Associated Product Codes | S1788PR, S1788PG S1788PY |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
