Green Dome Push Button Surface Mount IP66 Rated
£60.85
Ex Vat
In stock
Product code
S1712WGB

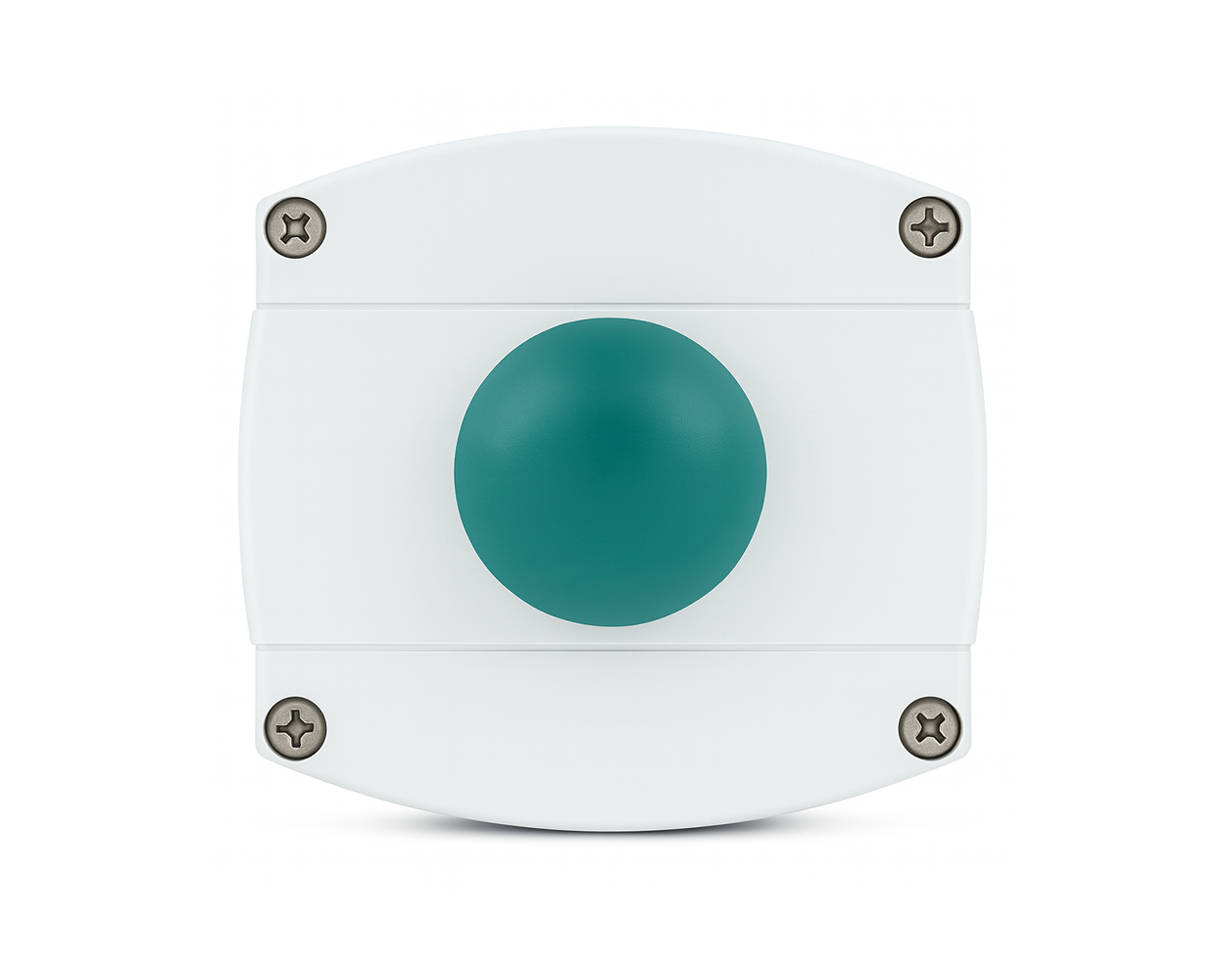

Momentory Action Green Dome Push Button
A momentary action domed green push button mounted in an IP66 rated enclosure. Ideal for use outdoor or in other damp environments, perhaps as a 'Press to Exit' button.
Engraved disc 'PRESS TO EXIT' available, order using code DISC-PA DISC-PTE
- Push button diameter 35mm
- Current rating 2A max resistive at 12/24Vdc
- Contact resistance 25mΩ
- Button IP66 Ingress protection
- Operating Temperature Range -40 degrees C + 125 degrees C
- Momentary contact
- M16/20 Pre-moulded conduit knockouts
- Dimensions L90 x W85 x D60mm (Including push button depth is 85mm)
- UKCA and CE marked, ROHS compliant, UL Listed, CSA approved
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1712WGB |
| Associated Product Codes | S1712WGB |
| Warranty | 1 Year |
| - |  Installation Instructions for S1712WGB |
| - |  Product Information Sheet for S1712WGB |
Write Your Own Review
Check items to add to the basket or

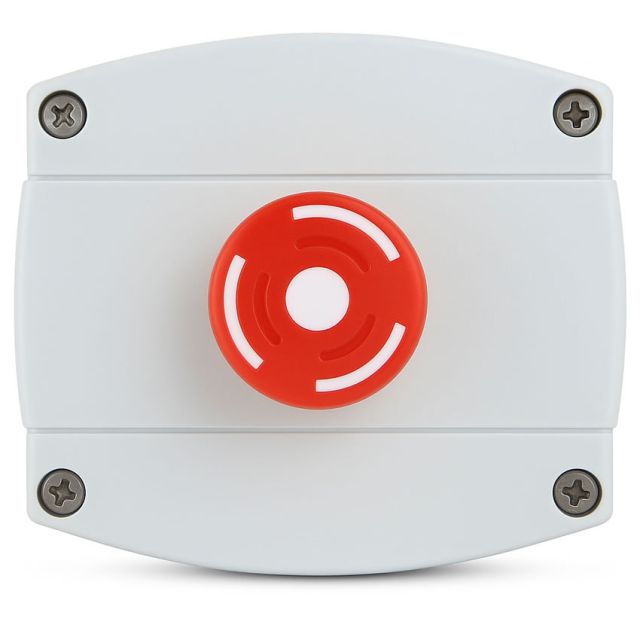

Mushroom Headed Push Button Twist Release IP66 Rated
£66.55
Ex Vat

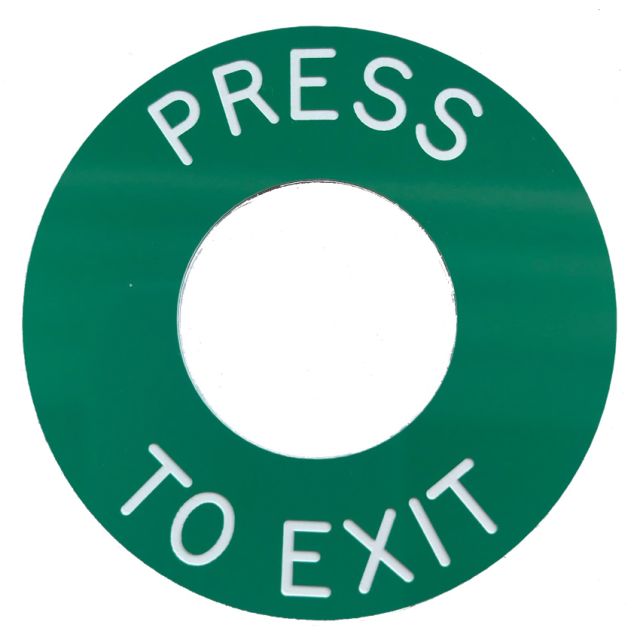

Press to Exit engraved GREEN disc use with S1712WGB
£12.75
Ex Vat

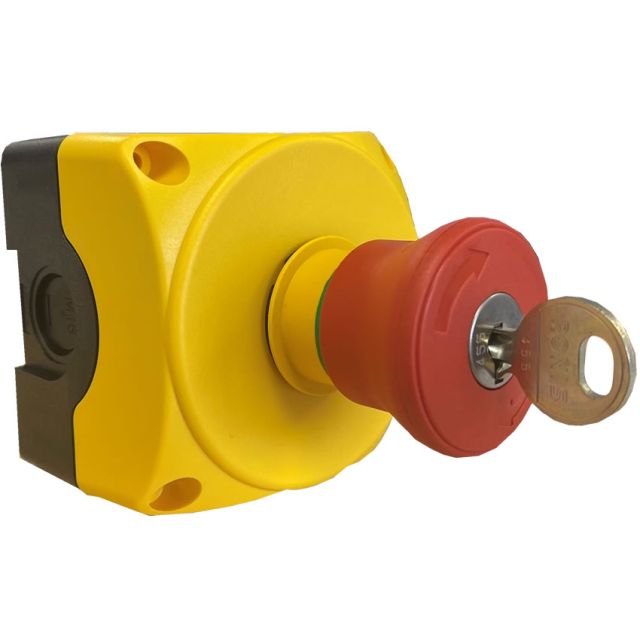

Push on/key reset push button Surface Mount IP69K Rated
