GEMINI Battery powered fire alarm control panel

Please note the GX32CIE Controller must be used with at least 1 x GX32MCP. It CANNOT be used on its own.

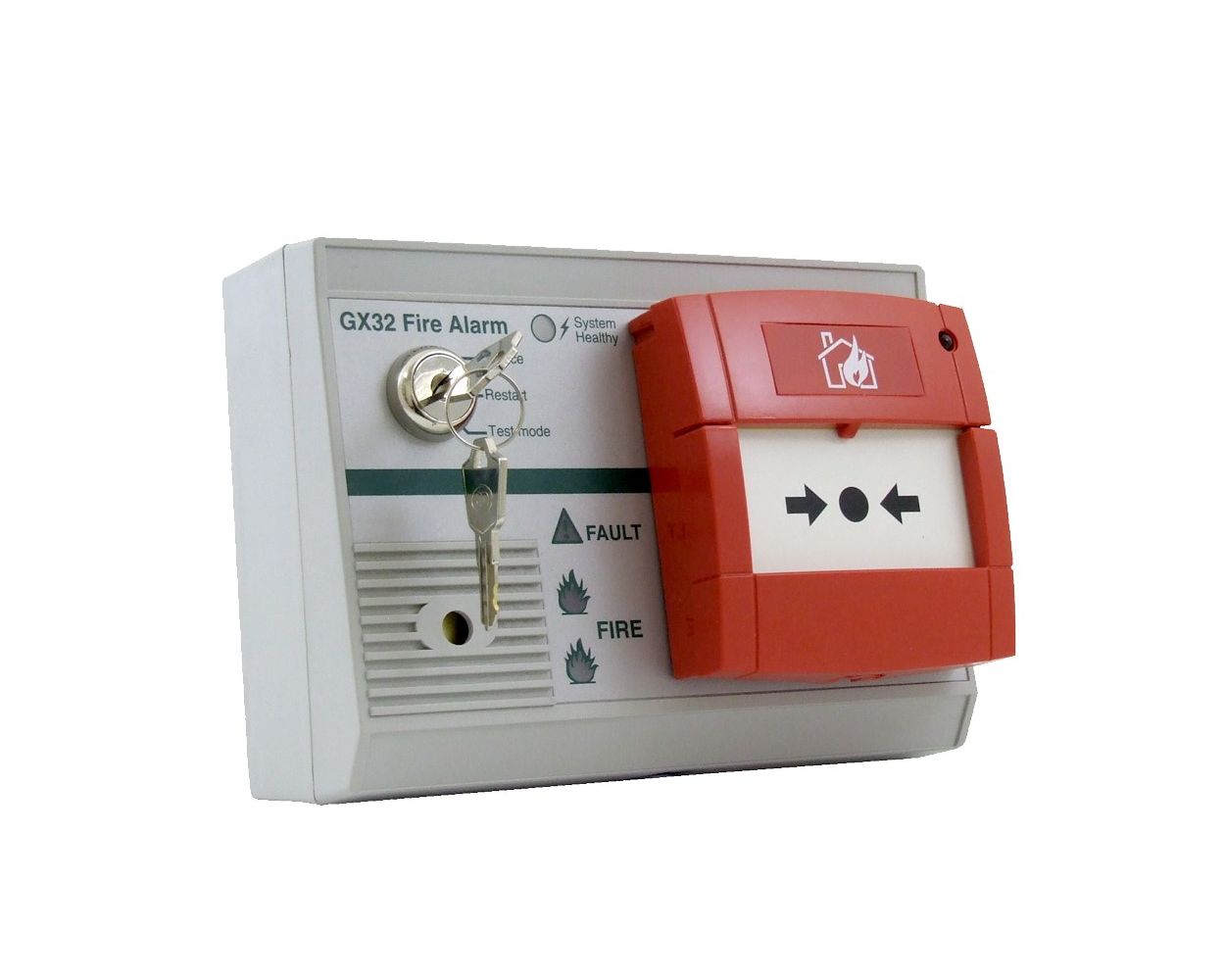

GEMINI GX32CIE is a battery powered fire alarm control panel with an integral manual call point. It is designed for use with the GX32MCP call points to form a manual fire alarm system and fitted with a keyswitch for silencing and restarting the alarm. A trace mode is incorporated to enable a system to be walk tested or faults to be traced.

Up to 32 Callpoint / Sounder units can be connected to the GX32CIE controller. The GX32 is designed in such a way that even if the cables are cut or short circuited in several places the individual system components will continue to function.

• Integral Call Point, Battery and Sounder
• Battery Fault Monitor
• Keyswitch to Silence & Restart Alarm
• Twin LED Fire Indication
• LED Fault Indication
• Simple to install
• System Healthy LED
• Robust Construction
• Fault Trace Facility
• Two wire connection
• Sound level of at least 100db at 1m
• 175 x 125 x 60 tapering to 50mm

Installation Considerations
GX32 system sounders give a sound level of at approximately 100db(A) at 1 metre to ensure that 70db(A) is available at 30m in a normal environment. GEMINI fire alarms are the ideal choice for fire alarms in small buildings and temporary accommodation etc…
