External PIR sensor

£55.34 Ex Vat
In stock
Product code
PIR18MWP

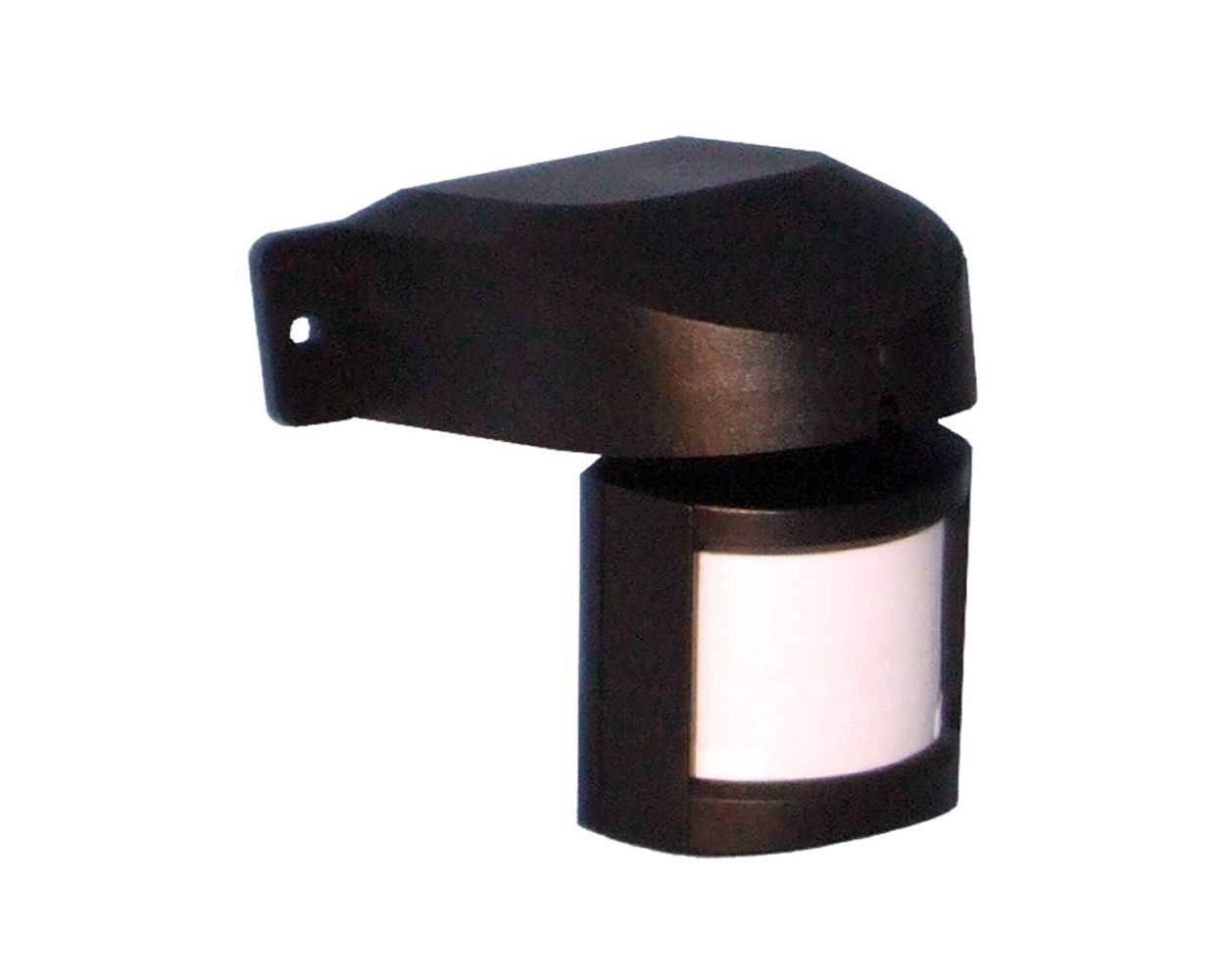

External PIR sensor 90 degree with 18m detection range

The PIR sensor is a single sensor, giving up to 90° of coverage. Designed to automatically switch when presence is detected. High quality Passive Infra-Red detector using double element, high density, precision optics, providing you with a very responsive and reliable sensor.

PIR sensors work best when a person’s movement is across the face of the sensor, and not towards the sensor. This is because the person would cross more detection beams, this often means that the best place for the sensor is on the corner, looking down the side of the building.

The sensor should be mounted at a height of between 2.5 to 3 metres on a rigid, vibration free vertical surface.

Do not locate the sensor near heater flues, air conditioning equipment, etc. this will emit warm moving air and will probably cause a false activation.

Do not locate the sensor close to trees, plants or other shrubbery, as they will emit infrared energy and could possibly cause a false activation.


Specification
  • 90° with 18m detection Range
  • Operating voltage 12V dc
  • Alarm current consumption 12mA (LED enabled) 6mA (LED disabled)
  • Standby current consumption 3mA
  • Sensor Dual element, thermally stabilised
  • Signal output Standby - 12V through a 22K resistor
  • Alarm - 0V through a 100R resistor
  • Operating Temperature -10°C to +40°C
  • Weatherproofing IP55
  • Dimensions - 90W x 113H x 84D mm
  • Package weight - 0.17Kg
  • Approvals CE directive 93/68/EEC
  • EMC directive 89/336/EEC
  • BS EN 50081-1 : 1992, BS EN 50082-1

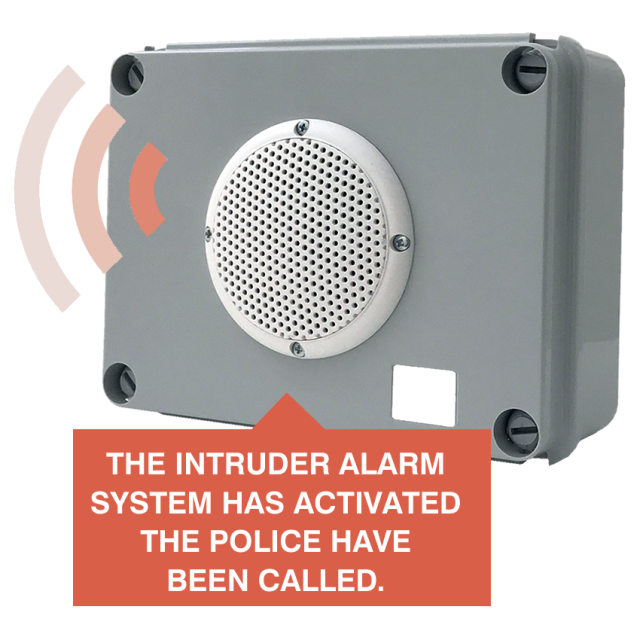

Works in conjunction with the Chatterbox TAM401WP. The TAM401WP allows eight different voice messages to be played by activating one of the eight inputs. Multiple sensors could be installed to enable different voice messages to be played on the Chatterbox TAM401WP.

More Information
Country of Origin UK
Condition New
SKU PIR18MWP
Associated Product Codes PIR18MWP
Warranty 1 Year
- Installation Instructions for PIR18MWP
- Product Information Sheet for PIR18MWP
