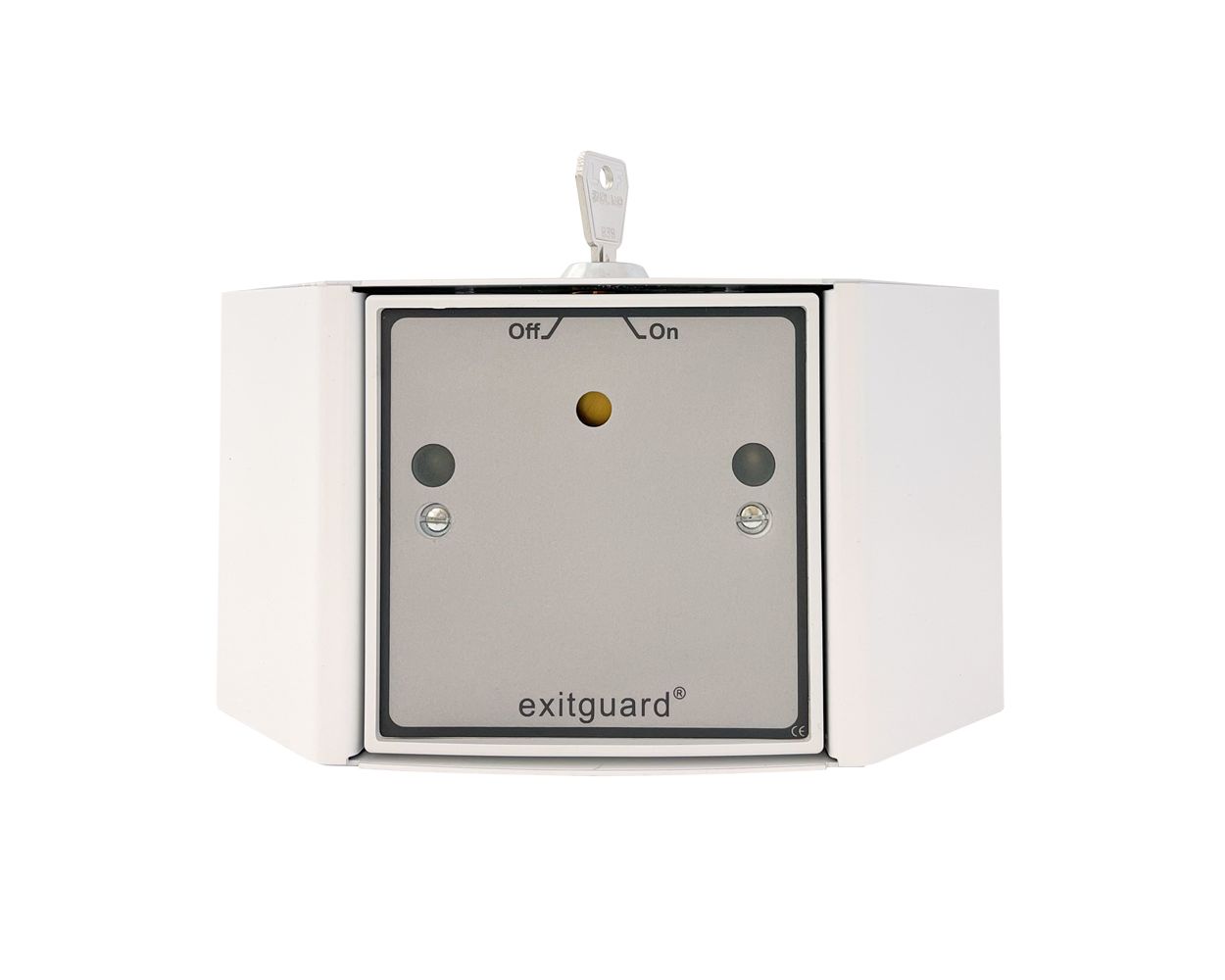

Exitguard 12vdc Steel Suited Key - use with intruder panels

The Exitguard EX125iS-SK is designed specifically for integration with Grade 2 EN50131 intruder alarm systems. Its steel enclosure with chamfered edges allows the unit to deflects side impacts while the location of the keyswitch ensures that any potential damage to keys or the key barrel is minimised making it ideal to withstand accidental damage in hash environments or areas prone to physical damage.

Selectable resistors (1k + 1k or 4k7/4k7) ensure compatibility with intruder alarm panels such as Honeywell and Aritech. The unit communicates alarms and faults to the main system via a supervised loop with separate alarm output. It also features auto sounder reduction to minimise noise after a preset period, with the sounder only restarting if the door is reopened.

The Bleep In Off (BIO) function provides an audible and visual alert when the unit is turned off, reducing the chances of it being forgotten.

The Exitguard EX125iS-SK is a suited key version of EX125iS-H.

• Designed for intruder systems
• High Power Piezo Sounder 108dB @1m
• Visual Alarm Indication
• Keyswitch Control with suited keys
• Audible/visual warning when turned off (BIO)
• Supervised loop for On/Off monitor & separate Alarm output
• Safe Set to minimises false alarms
• Tamper Switch
• Simple Function Change by Internal Jumpers
• Compatible with key intruder panel manufacturers
• Selectable resistor values for alarm output
