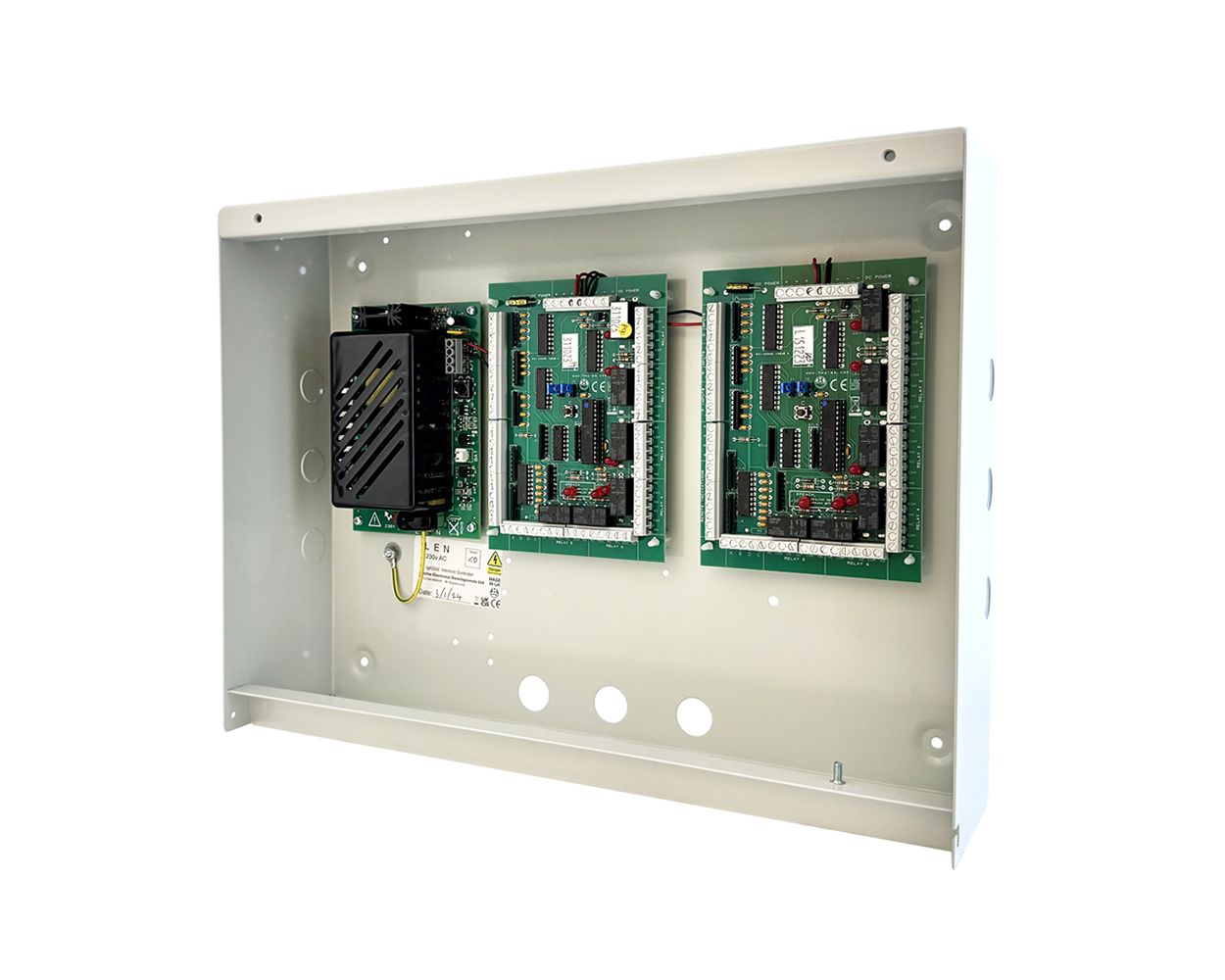

Enclosure containing two IG432 control boards & power supply

£1,144.17 Ex Vat
In stock
Product code
IG432x2

Enclosure containing two IG432 control boards & power supply

The IG432x2 houses two IG432 control boards within the one enclosure. Offering two independent door interlocks systems and space saving advantages.

INTERGUARD IG432 allows 2, 3 or 4 doors to be interlocked to restrict or control entry to and from areas that need to be secured against two or more doors being open simultaneously. Any kind of door, roller shutter, traffic bollard or gate can be interlocked using the IG432. Use any type of electronic lock is catered for, as is integration with other systems including access control and fire alarms.
Two fundamental operational modes are available:
Mode 1 Keep all doors closed but unlocked, when a door is opened all other doors are locked.
Mode 2 Keep all doors closed and locked, unlock a door upon request.

New features include the ability to configure the system in a 2 door / 3 door combination which effectively creates two separate interlocks sharing a common door, plus a privacy facility which allows two doors within the system to be locked at the press of a button preventing either of the two doors being opened again until the privacy button is pressed again - ideal for controlled change rooms.

Key features:

  • Two Interlocking systems for 2, 3 or 4 doors
  • Space saving advantage
  • Enclosure dimensions 400 x 300 x 100mm
  • Integral 12vdc 5A power supply
  • Secure or non secure interlocking
  • Status indication at each door
  • Updated Fire alarm input functions
  • Breach indications
  • Breach relay outputs
  • Maintenance door release facility
  • Adjustable dwell time
  • Adjustable Door Open Too Long time
  • Privacy facility
  • 2 / 3 door combination with common door
  • Comprehensive kits available
  • UKCA and CE marked, ROHS compliant
  • Manufactured in the Uk


Hoyles have a huge amount of experience in solving interlocking problems across many industries, from high security applications, cash handling, jewellers and police stations to critical applications in pharmaceutical, medical and food production.

Call us now for no obligation advice on your door interlocking requirement.
Tel. +44(0)1744 886600


More Information
Country of Origin UK
Condition New
SKU IG432x2
Associated Product Codes IG432x2
Warranty 3 Years
- Installation Instructions for IG432x2
- Product Information Sheet for IG432x2
