Door status indicator Red/Green LEDs & sounder
£28.09
Ex Vat
In stock
Product code
S1717PRG

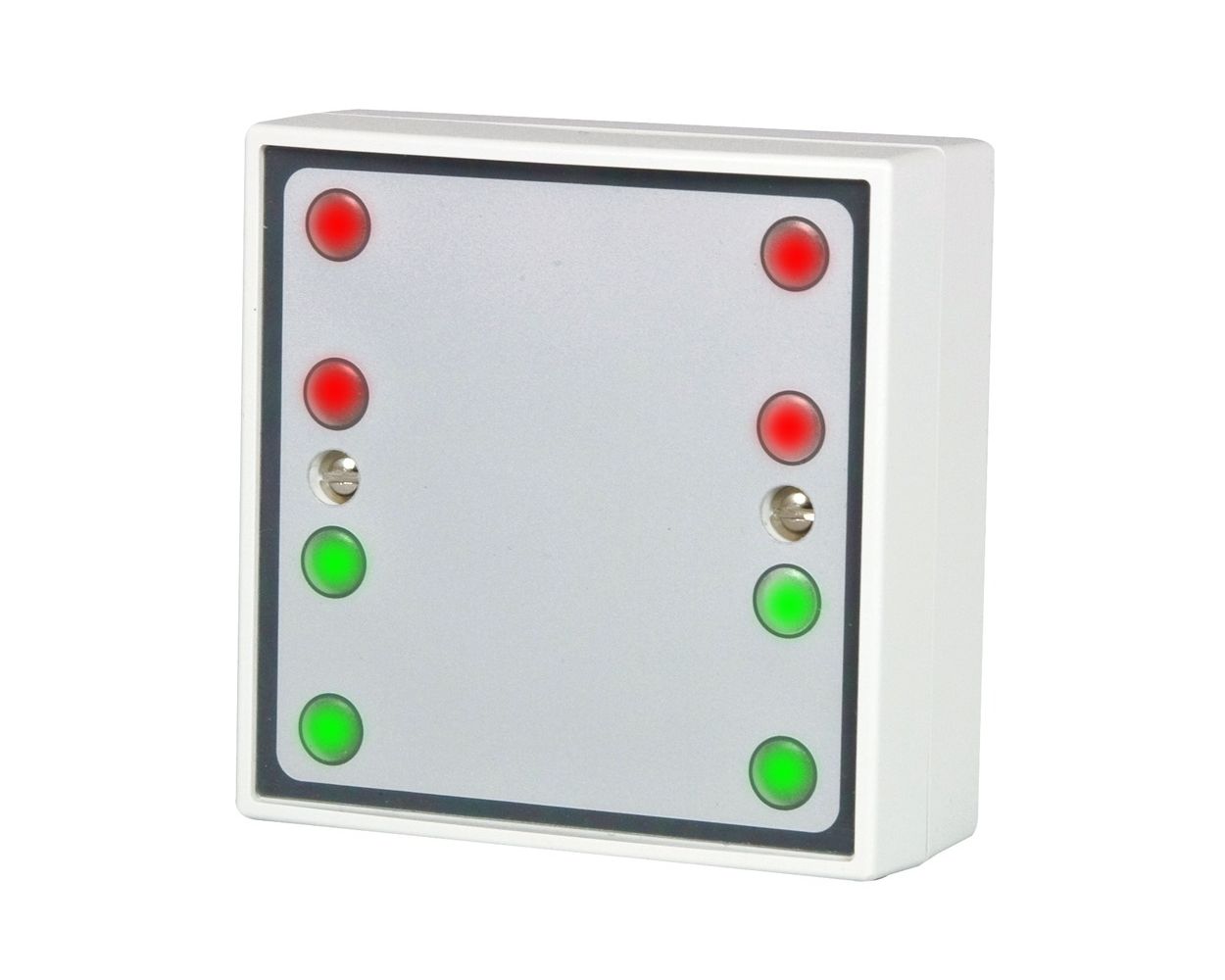

Door status indicator with Red and Green LEDs
A wall mounted Door status indicator in white ABS complete with a single gang mounting box. Eight high brightness LEDs, four red and four green. Ideal for use with our door interlock systems INTERGUARD. The LED current limit resistor is provided for 12 vdc operation
- Specification
- Led Current - 40mA@12vdc
- Sounder Current - N/A
- Switch Contacts - N/A
- Visual Indication - 8 x High brightness LEDs 4 x red, 4 x green
- Integral Sounder Level - N/A
- Tamper - N/A
- Material - White ABS
- Weight - 0.12kg
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
- 87 x 87 x 36mm (Surface mount)
- Back box supplied for surface mount
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Approvals - CE and RoHs compliant
- Mark resistant decal
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1717PRG |
Associated Product Codes | S1717PRG |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
