Disabled Person Toilet Alarm Kit in Brushed Brass, c/w Panic Strip

The Brushed Brass, flush mount Disabled Person Toilet Alarm has been designed for more prestigious locations. It is fully compliant with BS8300 and meets the requirements of the Disability Discrimination Act. Everything is provided in the kit to deliver an effective, fully compliant, simple to install and simple to use system.

Requires a separate 12vdc PSU minimum of 250mA , see PSU-12/2AB, if battery backup is required see BAT12V3300LA

• BS 8300 Compliant
• High power piezo sounder
• 12vdc powered with integral power on LED
• Four selectable warning tones
• Audible visual signaling and indication
• Volt free changeover relay contacts enable remote signaling output
• Control panel configurable functions - Silence, Reset or Disabled
• Material - Brushed Brass
• Controller Dimensions - 180 x 125 x 2mm
• Bespoke Back Box Dimensions - 164 x 100 x 55mm

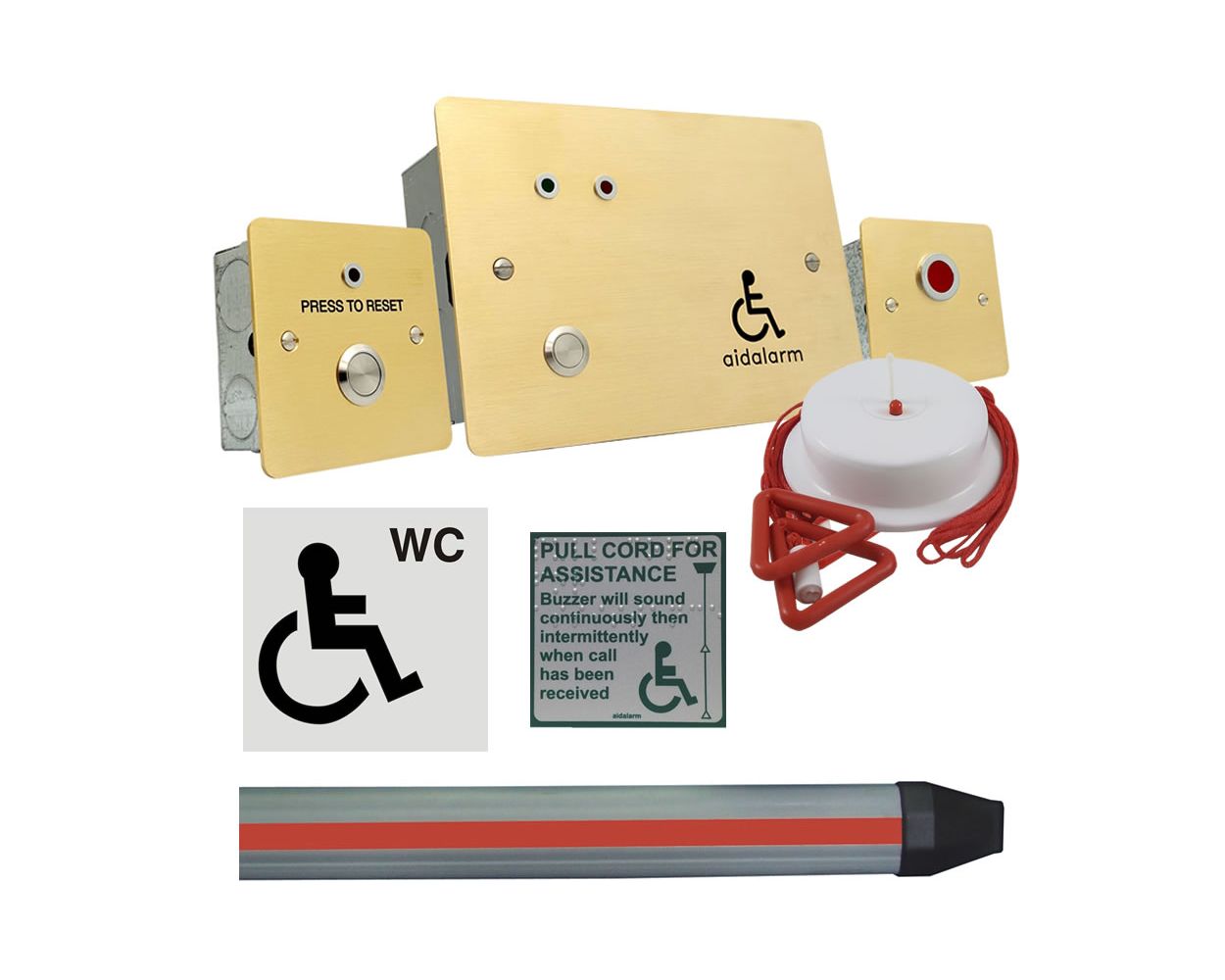

Kit includes:
1 x A600FBR Aidalarm controller
1 x S1600-R RED pull cord
1 x S1708BR Press to Reset button with re-assurance LED
1 x S1778BR Overdoor light & sounder
1 x RPD01000 1m waterproof Dado panic strip
1 x Self adhesive disabled toilet sign
1 x Self adhesive pull cord instruction label with braille text

How the Aidalarm works
1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.
2. A ceiling pull cord and Dado panic strip are situated in the toilet or other area where assistance may be required.
3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.
4. The call can be silenced by pressing the button on the front of the control panel.
5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.
6. Should the cord be pulled again while in the silenced state, the system will call again.
7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.
8. The system can only be reset by the Press to Reset button located at or near the point of call.
