Customisable button with LEDs and sounder
Customisable button with LED's and Sounder

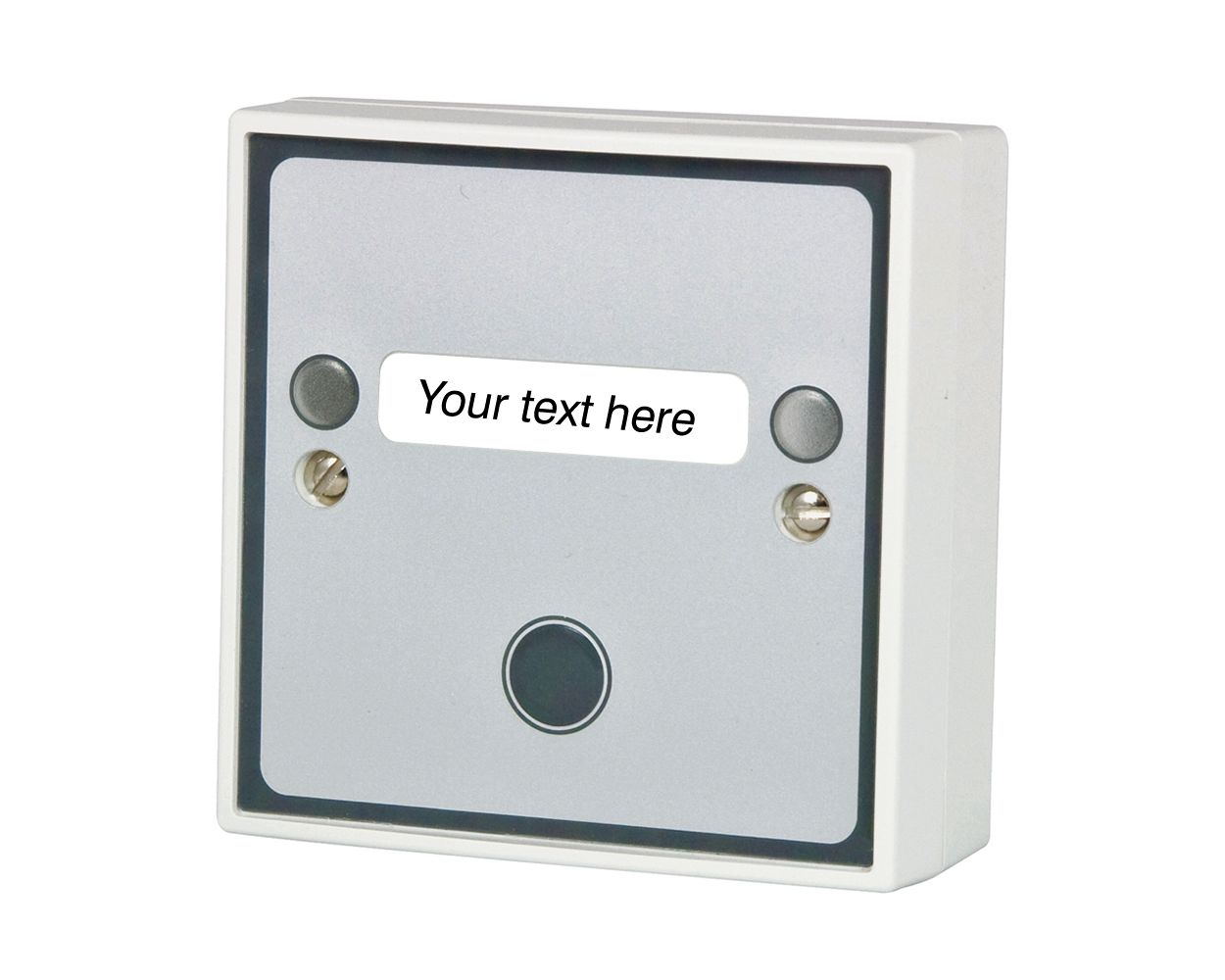

Wall mounted general purpose button in white ABS complete with a single gang mounting box. This is a non-latching unit with A N/O contact. The LEDs are available in RED, BLUE, GREEN or YELLOW. the LEDs and sounder have separate terminals for acknowledge purposes. The LED and sounder current limit resistor is provided for 12 vdc operation. They should NOT be used for switch feeds to door strikes or mag locks etc.
This CUSTOMISABLE button comes supplied with a selection of pre-printed paper labels ready to fit, such as PRESS TO CALL, PRESS TO ENTER, PRESS TO EXIT, PRESS TO RESET. See installation instructions for all options. A plain label is also supplied, customisation is simple with a labelling machine.
- Led Current - 35mA @12vdc
- Sounder Current - 25mA @12vdc
- Switch Contacts - 50mA 12vdc
- Visual Indication - 2 x LEDs
- Integral Sounder Level - 70db @10cm
- Tamper - N/A
- Material - White ABS
- Weight - 0.12kg
- 87 x 87 x 36mm (Surface mount)
- IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
- Back box supplied for surface mount
- Approvals - CE and RoHs compliant
- Can be Semi Flushed onto standard flush back box (Not supplied)
- Tactile button
- Unique on site labelling system
- Mark resistant decal
Anti tamper screws available, see related products below
Country of Origin | UK |
---|---|
Condition | New |
SKU | S1703PTC |
Associated Product Codes | S1703PRTC, S1703PGTC S1703PYTC, S1703PBTC |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
