Customisable 24v indicator jumbo LEDs & sounder SS

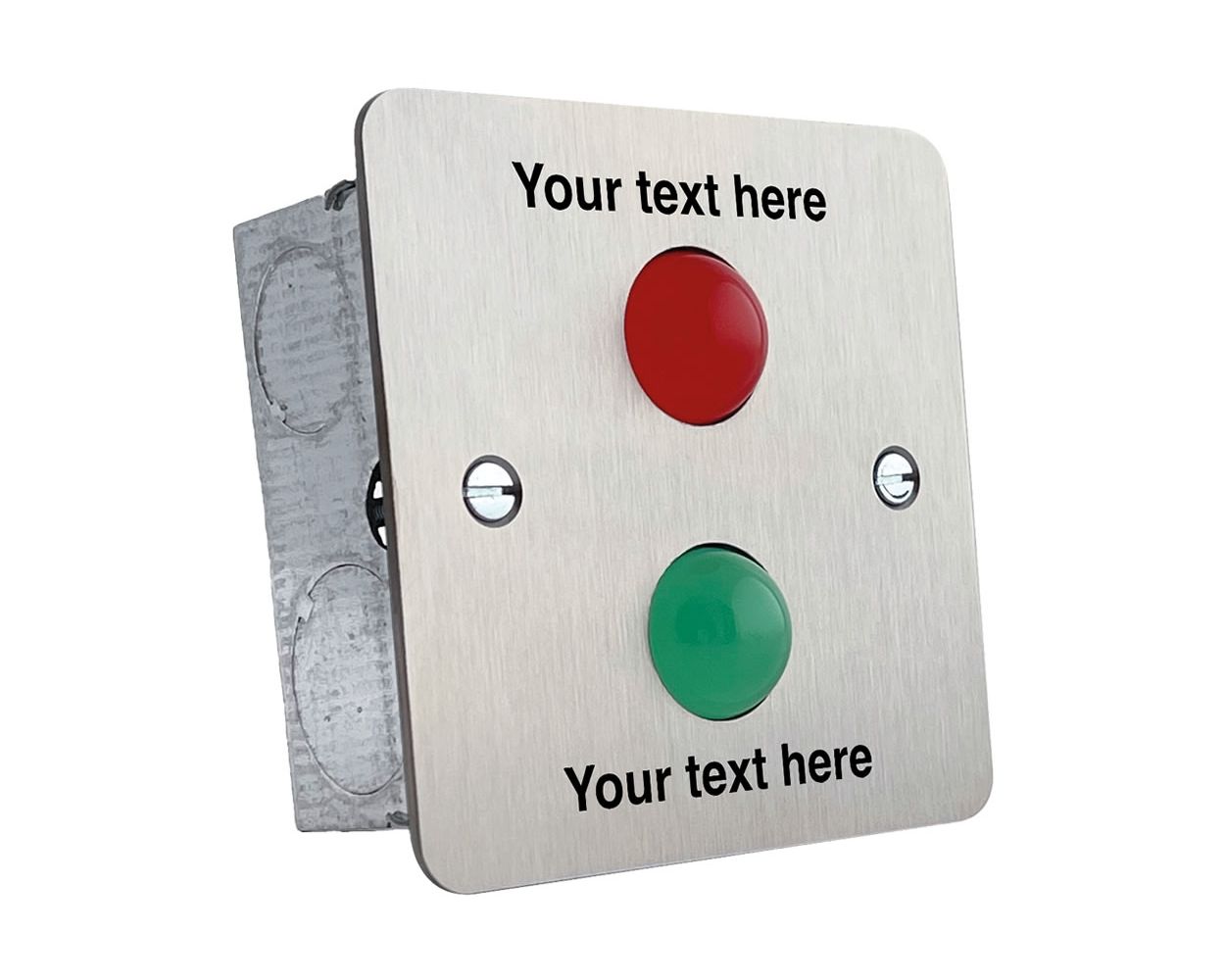

Stainless Steel 24vdc door status indicator and sounder with Red and Green jumbo LEDs with custom text
Stainless Steel door status indicator and sounder with red and green 20mm jumbo LED’s. The LED’s and sounder are configured for operation at 24vdc. Can be used with our Interguard range of door interlock controllers as well as any other general application. When used with an Interguard, the LEDs indicate the status of the relevant door. Useful as traffic light indications for doors etc. The connections for the LED’s and sounder are configured with a common positive and individual switched negatives, see installation instructions for further details. We can manufacture this item with common negative on request.
Permanently laser marked with text of your choice. Specify text required when ordering - 45 characters maximum. Specification- Led Current - 50mA per LED @24vdc
- Switch Contacts - N/A
- Sounder Current - 40mA @ 24vdc
- Visual Indication - 1 x red jumbo LED 1 x green jumbo LED (20mm)
- Integral Sounder Level - 90dB@10cm
- Tamper - N/A
- Material - 316 Grade Stainless Steel
- Dimensions - 86 x 86 x 2mm - Facia
- 38mm galvanised back box supplied
- Weight - 0.29kg
- IP Rating - IP65 front side contact area
- Approvals - UKCA and CE marked, ROHS compliant
Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available, see related products below.
| Country of Origin | UK |
|---|---|
| Condition | New |
| SKU | S1717SJM24TC |
| Associated Product Codes | S1717SJM24TC |
| Warranty | 3 Years |
