Customisable 2 position KSW Red/Green LEDs & sounder 12-24vdc

£44.30 Ex Vat
Despatched within 2-3 days
Product code
S1709PRGTC

Maximum 25 characters

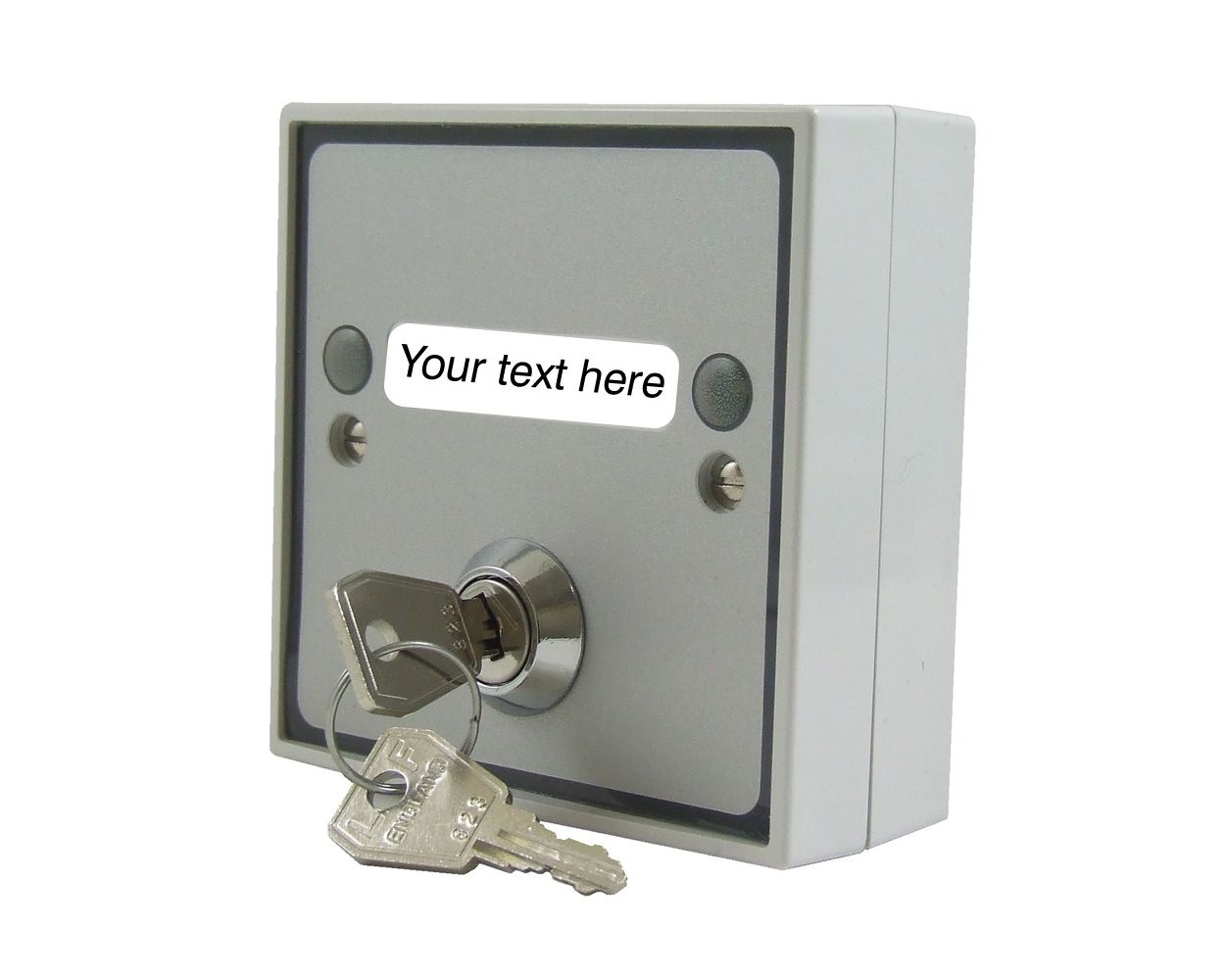

Customisable 2 position KSW Red/Green LEDs & sounder

Two position keyswitch mounted on a single gang white ABS plate. Two LEDs are provided, one red and one green, current limited for 12-24vdc operation. Labelled with text of your choice, please specify when ordering. The keyswitch has DPCO contacts rated at 1A 30vdc. Suitable for maglocks and door strikes.

Specification
  • Led Current - 18mA per LED @12-24vdc
  • Sounder Current - 20mA @12-24vdc
  • Switch Contacts - DPCO 1A 30vdc
  • Visual Indication - 2 x LEDs one red one green
  • Integral Sounder Level - 70bD@10cm
  • Tamper - N/A
  • Material - White ABS
  • Weight - 0.17kg
  • IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
  • Approvals - CE and RoHs compliant
  • Back box supplied for surface mount
  • 87mm x 87mm x 36mm (Surface mount)
  • Can be Semi Flushed onto standard flush back box (Not supplied)
  • Labelled with text of your choice
  • Mark resistant decal
  • Two position keyswitch - removeable in both positions
  • Two high brightness LEDs

Anti tamper screws available, see related products below


More Information
Country of Origin UK
Condition New
SKU S1709PRGTC
Associated Product Codes S1709PRGTC
Warranty 3 Years
- Installation Instructions for S1709PRGTC
- Product Information Sheet for S1709PRGTC
