Boxed Tri Double Pole Relay Module
From
£48.54
Ex Vat
In stock
Product code
S342-3B-CF
Models available:
S342-3B - 12vdc powered
S342-3B-24 - 24vdc powered
Select your required option from the drop down above.

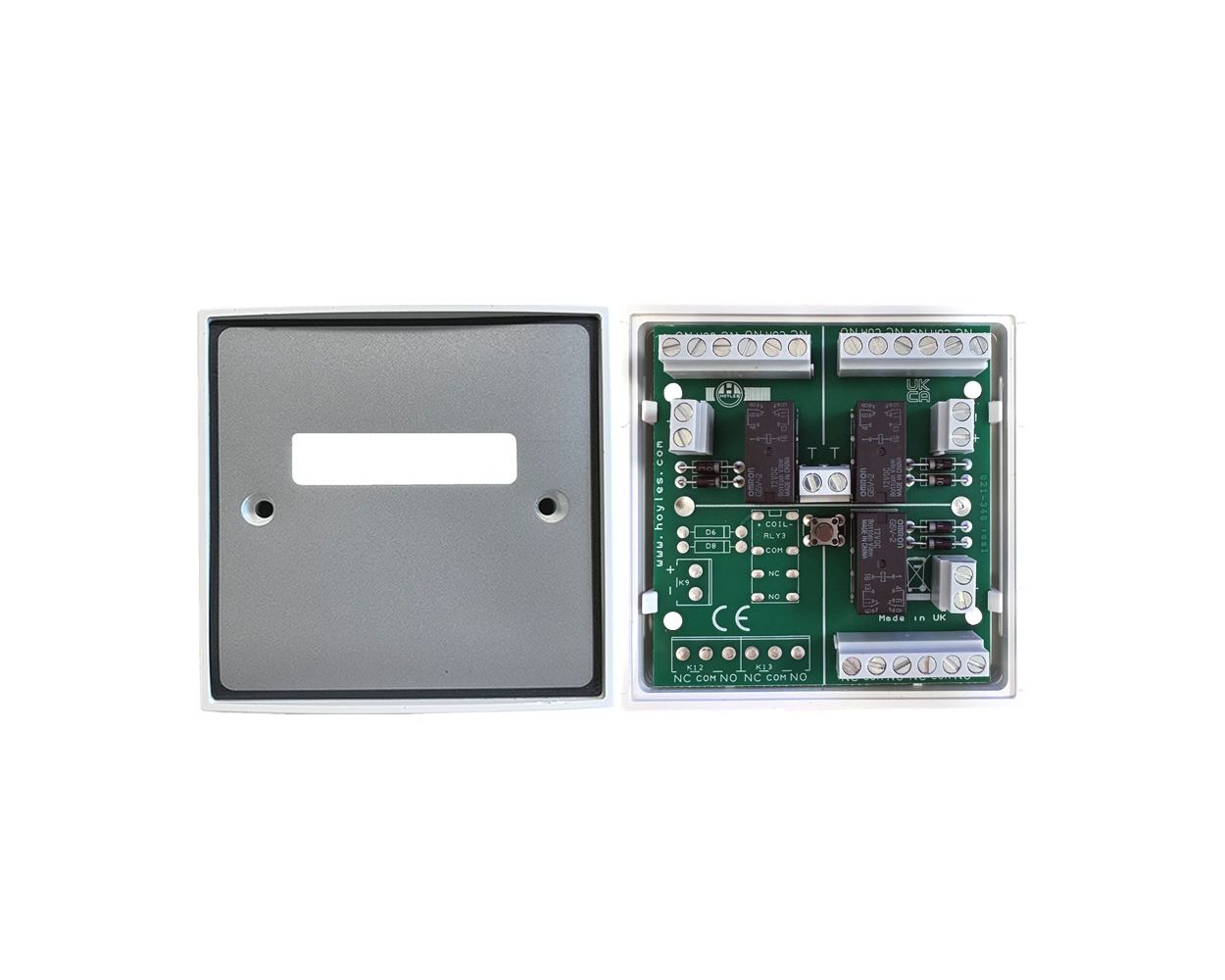

Three completely separate double pole change over relays on a single PCB mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch.
- S342-3B Requires 12vdc supply at 20mA
- S342-3B-24 Requires 24vdc supply at 20mA
- Contacts Rated at 2amp
- Four mounting holes provided for more permanent fixing
- Knock outs for cable entry
- Intended for internal use only
- Screw terminals for easy connection
This unit is provided housed in a single gang white ABS enclosure.
Relay Dimensions - L80 x W74 x D16mm
Box Dimensions - L87 x W87 x D36mm
Country of Origin | UK |
---|---|
Condition | New |
SKU | S342-3B-CF |
Associated Product Codes | S342-3B, S342-3B-24 |
Warranty | 3 Years |
- | ![]() |
- | ![]() |
