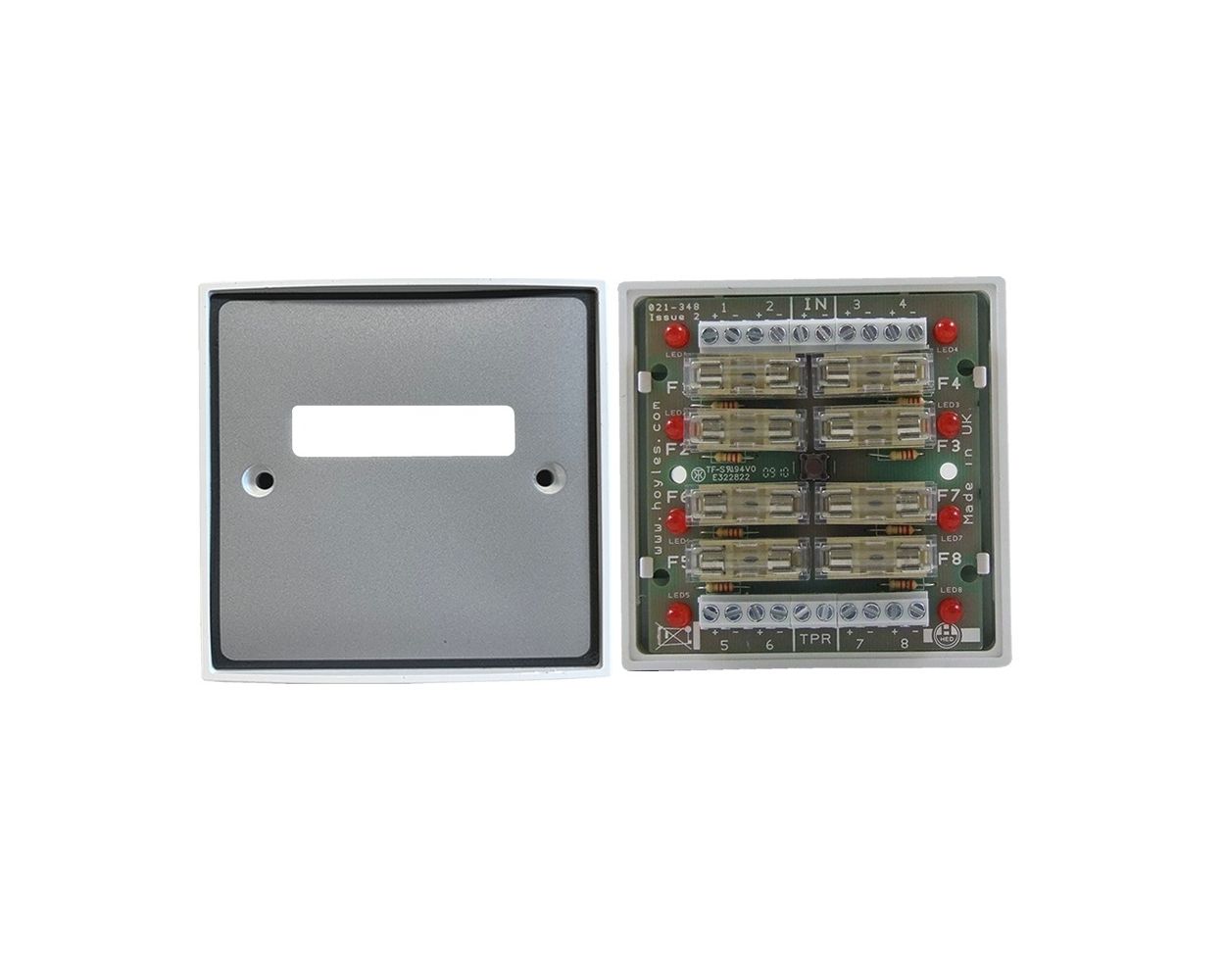

Boxed 8 way fused output module with fuse status LEDs

A boxed version of the S348 PCB fuse board module used for splitting power from a low voltage power supply (1-30v ac or dc) into 8 individually fused outputs. 500mA fuses are provided but can be changed on site as required. 8 red LEDs indicate the status of each fuse. A front and back acting tamper switch is also fitted. This unit is provided housed in a single gang white ABS enclosure.

Available as PCB only see product code S348.

Relay Dimensions - L80mm x W74mm x D16mm Box Dimensions - L87mm x W87mm x D36mm
