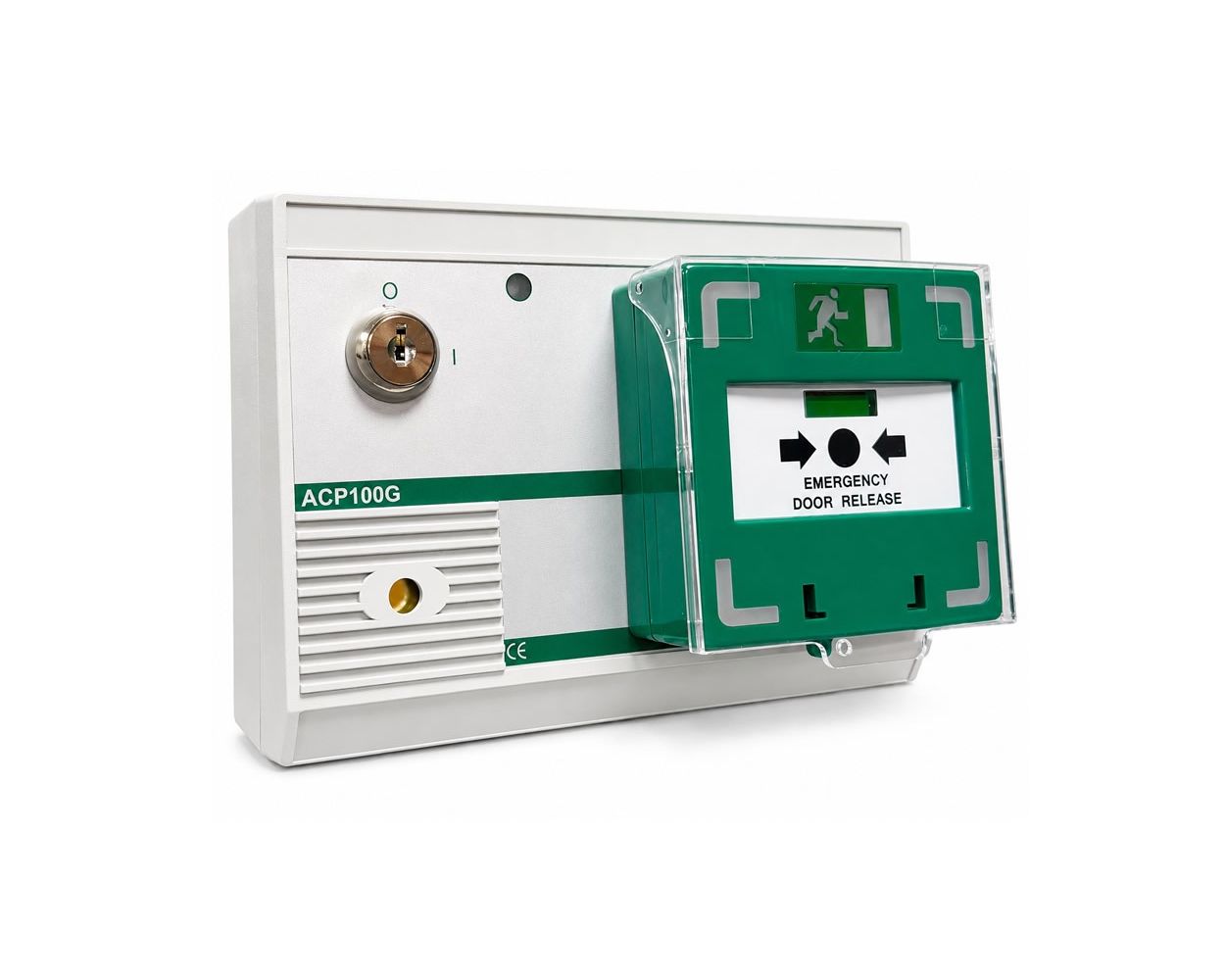

Alarmed Emergency Release Resettable call point with LED

The Hoyles ACP100G Alarmed Emergency Release Call Point combines emergency door release functionality with an integrated audible and visual alarm, providing an effective deterrent against misuse and helping prevent emergency releases from being left activated.

When operated, the ACP100G activates a powerful 105dB sounder and flashing LED indicators to alert nearby staff. Integrated volt-free changeover contacts allow power to electronic door locks to be disconnected directly, providing emergency release functionality.

The built-in keyswitch allows authorised personnel to silence the alarm. A reminder bleep sounds every 30 seconds while the unit remains isolated, and the LED indicators continue to flash until the emergency release has been reset. The alarm is only fully silenced once the call point has been reset and the keyswitch returned to the armed position.

• Resettable Call Point with highly visible misuse deterrent
• Helps prevent the Emergency Release being left activated
• Provides direct disconnection of lock power
• Selectable tones ranging from 85 - 105dB
• 12-24V DC powered
• Keyswitch allows temporary isolation of the alarm
• Audible bleep every 30 seconds when isolated
• Visual LED alarm indication
• Simple function selection via internal jumpers
• Supplied complete with protective cover, fixing screws and break seal
• Dimensions: 175mm x 125mm x 95mm
• UKCA and CE marked, RoHS compliant
• Manufactured in the UK

• Fire alarm/access control input for remote alarm isolation
• Door contact input for forced-door monitoring
• Door Open Too Long (DOTL) alarm - activates if the door remains open for more than seconds
• Programmable relay output for remote alarm signalling
• 5-second delayed egress function
