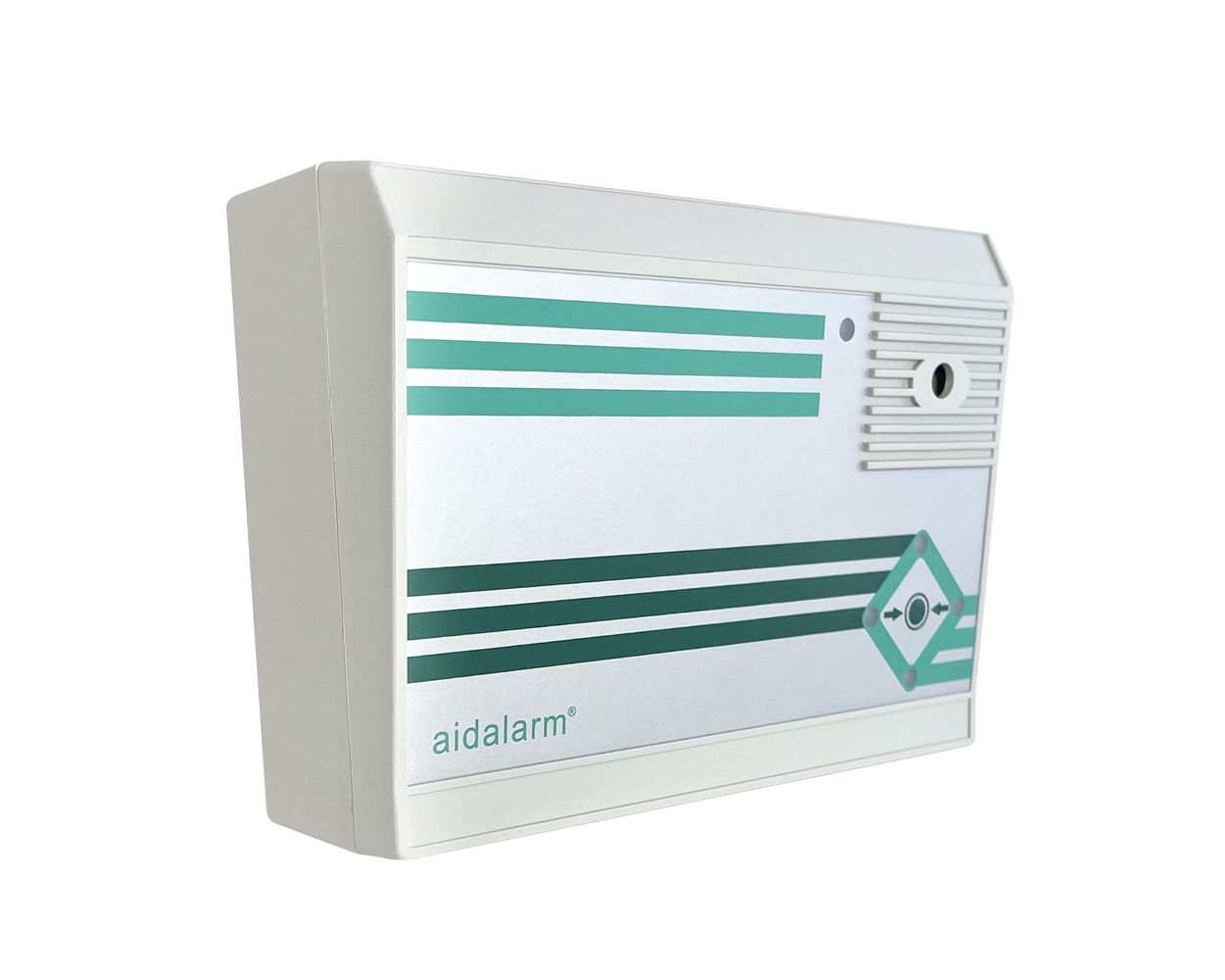

AIDALARM Disabled Toilet Alarm Controller - Mains Powered

The Aidalarm A600L Disabled Toilet Alarm Controller provides a reliable emergency assistance solution for accessible toilets and disabled facilities. The Aidalarm system is designed to meet the requirements for emergency signalling systems for disabled people, in accordance with BS 8300 and the requirements of the Disability Discrimination Act (DDA).

The A600L is a 230/240VAC mains-powered controller featuring a volt-free relay output, allowing the alarm to be connected to a Multiguard Indicator Panel, such as the MG212100, or integrated with a Building Management System for remote monitoring.

To complete the system, the A600L controller requires a method of raising the alarm. This can be provided by an S1600-R or or S1600AL-R ceiling-mounted red pull cord, with alternative activation options including the S1703PYTC wall-mounted call button or Dado Panic Strip.

An S1708A reset button must also be installed at or near the point of call, enabling the system to be reset once the call has been attended.

For additional local indication, an S1778A overdoor light and buzzer can be added to provide clear audible and visual warning in the immediate vicinity.

• BS 8300 Compliant
• High Power Piezo Sounder
• Four selectable Warning Tones
• Mains Powered with 6 x AA standby batteries
• Integral power on LED
• Low battery warning
• Audible & visual signalling and indication
• Volt free changeover relay contacts enable remote signalling output
• Control panel button configurable functions - Silence, Reset or Disabled
• Disabled WC Door Sign and Pull Cord Instruction Label with Braille text - supplied
• Dimensions - 175 x 125 x 60 tapering to 50mm
• UKCA and CE marked, ROHS compliant
• Manufactured in the UK

How the Aidalarm works
1. The Aidalarm controller should be sited where staff are located who can respond to an emergency call.
2. A ceiling pull cord, optional Dado panic strip or call buttons are situated in the toilet or other area where assistance may be required.
3. Pulling the cord or pressing the panic strip/call button generates an immediate audible/visual alarm at both the WC area and at the control panel. An LED illuminates on the pull cord giving the caller reassurance that the call has been placed.
4. The call can be silenced by pressing the button on the front of the control panel.
5. The audible indicators at the WC will bleep every 5 seconds to re-assure the caller.
6. Should the cord be pulled again while in the silenced state, the system will call again.
7. Non-attendance will cause the panel to bleep every 40 seconds as a warning.
8. The system can only be reset by the Press to Reset button located at or near the point of call.
