6 way driver interface card for MULTIGUARD indicators

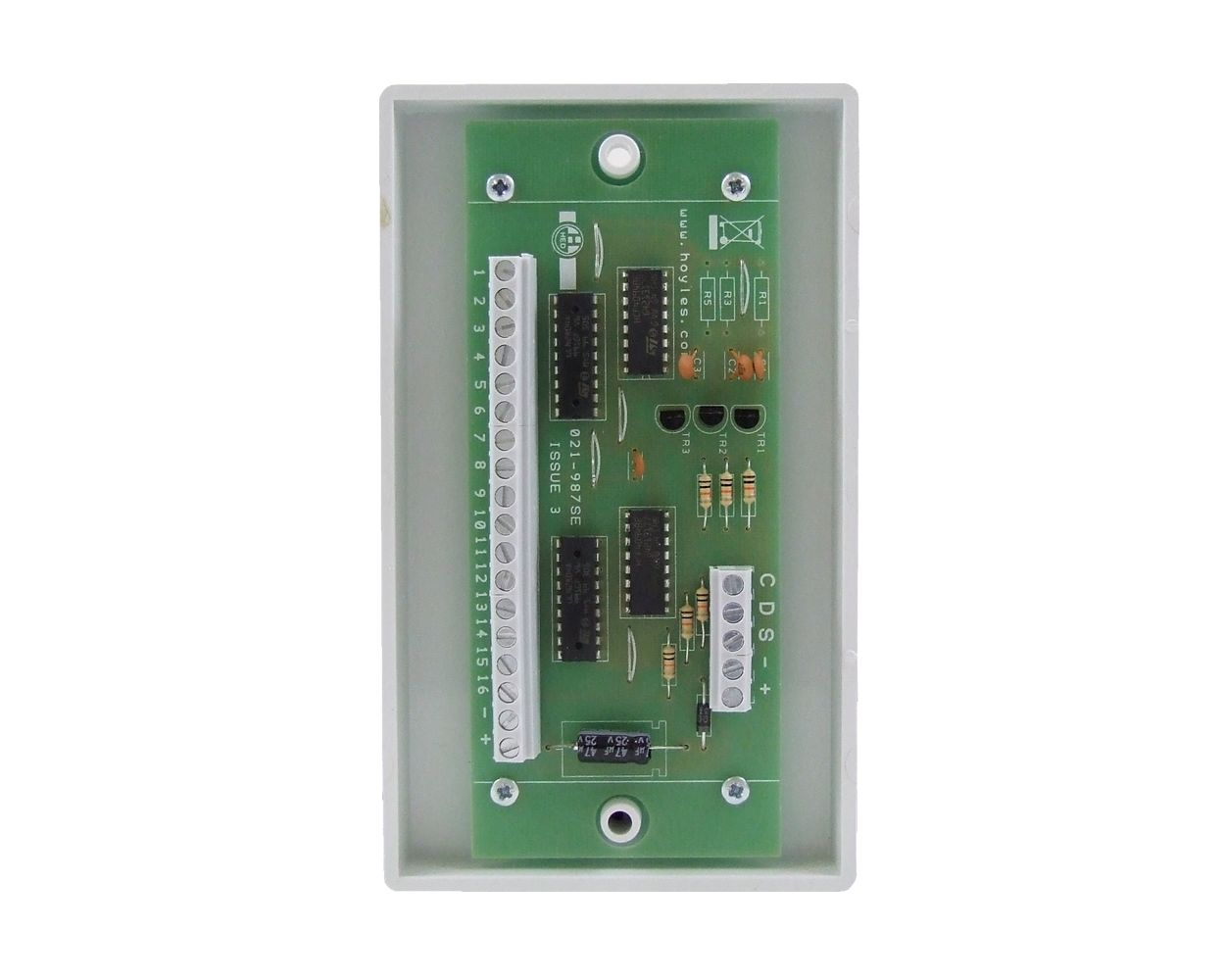

The MULTIGUARD MG02000P enables the serial output of a MG series MULTIGUARD annunciator to be used to drive remote devices such as LEDs, Overdoor lights, Low power sounders and relays etc. The MG02000P is supplied on a double gang plastic plate to enable it to be fitted externally to the annunciator at a point closer to the devices it is driving. The pcb can be removed from the plate and fitted inside the MULTIGUARD if desired.

Specification

6 Zones MULTIGUARD output driver card
16 Darlington transistor outputs 500ma per channel
Uses serial data from MULTIGUARD
Can mount into the back box of MULTIGUARD
Suitable for remote LED's or low power sounders etc..
UKCA and CE marked, ROHS compliant
Manufactured in the Uk
Dimensions 146 x 87 x 15mm

More Information
Country of Origin	UK
Condition	New
SKU	MG02000P
Associated Product Codes	MG02000P
Warranty	3 Years
-	Installation Instructions for MG02000P
