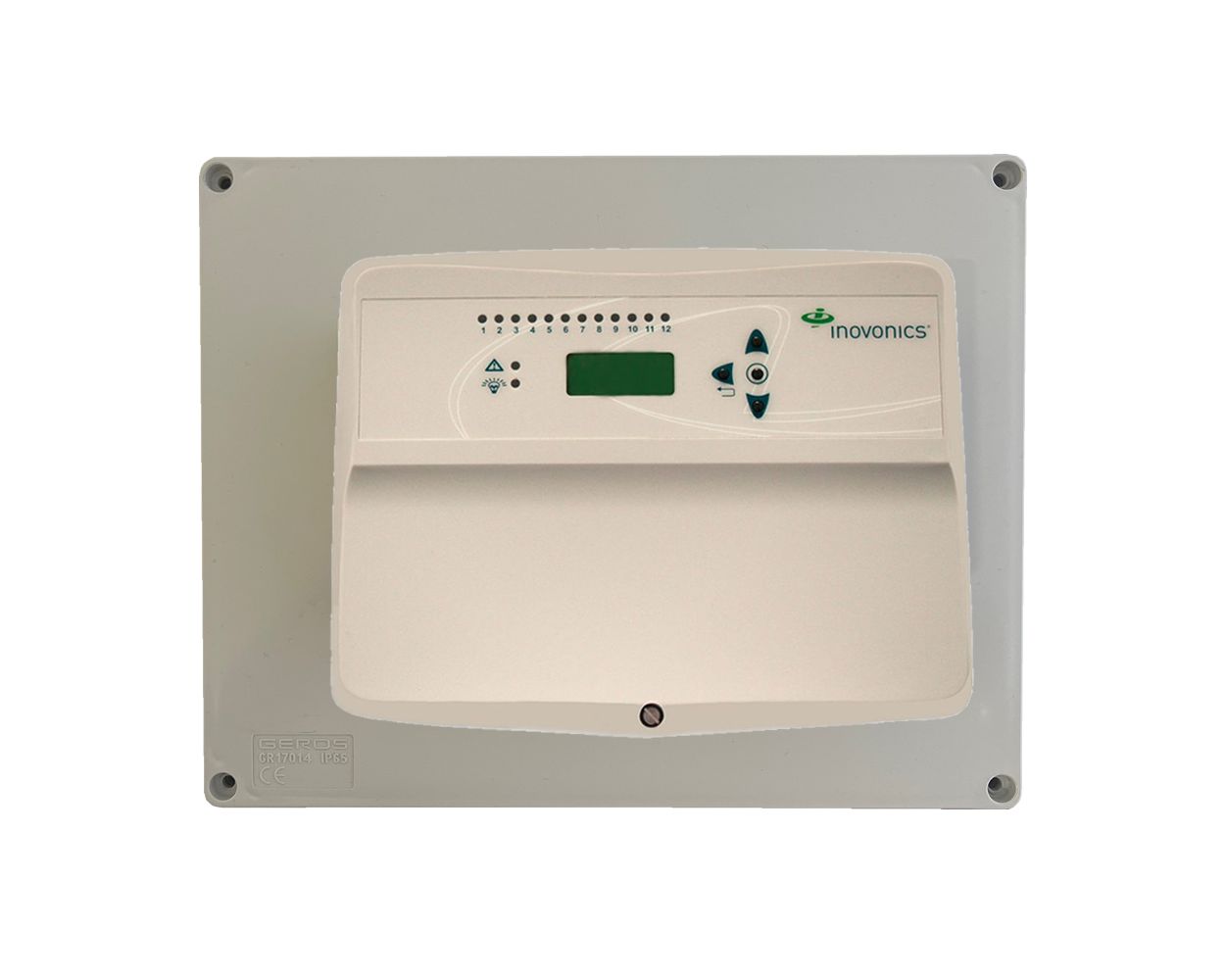

32 Zone Multi-Cdt'n Receiver Mounted on 240/12vdc PSU

£779.06 Ex Vat
Contact us for stock availability
Product code
H-EE4232MRP
32 Zone - 10 Relay Output Receiver Mounted on 240/12v dc PSU

The Inovonics H-EE4216MR 16 zone multi-condition receiver with relay outputs programs and supervises up to 16 single or multiple condition transmitters. This receiver includes Form C relays for each output, allowing connection to any hardwire panel, or stand-alone wireless application.

  • Add up to 32 high performance EchoStream wireless transmitters to any installation
  • Includes support for both single and multiple condition transmitters
  • Frequency 868 - 870 MHz Europe
  • Two line text display shows condition of each transmitter, provides log of past events, and displays signal strength
  • Six form C relays for connecting to any panel
  • Outputs can be configured in follower, latching, momentary, or toggle modes independently
  • Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
  • Wireless programming routine built into the receiver
  • Includes support for both single and multiple condition transmitters
  • Dimensions: 250 x 200 x 145
  • Weight: 0.522kg
  • Operating environment: -10- 60 degrees C
More Information
Country of Origin UK
Condition New
SKU H-EE4232MRP
Associated Product Codes H-EE4232MRP
Warranty 1 Year
- Installation Instructions for H-EE4232MRP
- Product Information Sheet for H-EE4232MRP
