16 way input to 16 way output module

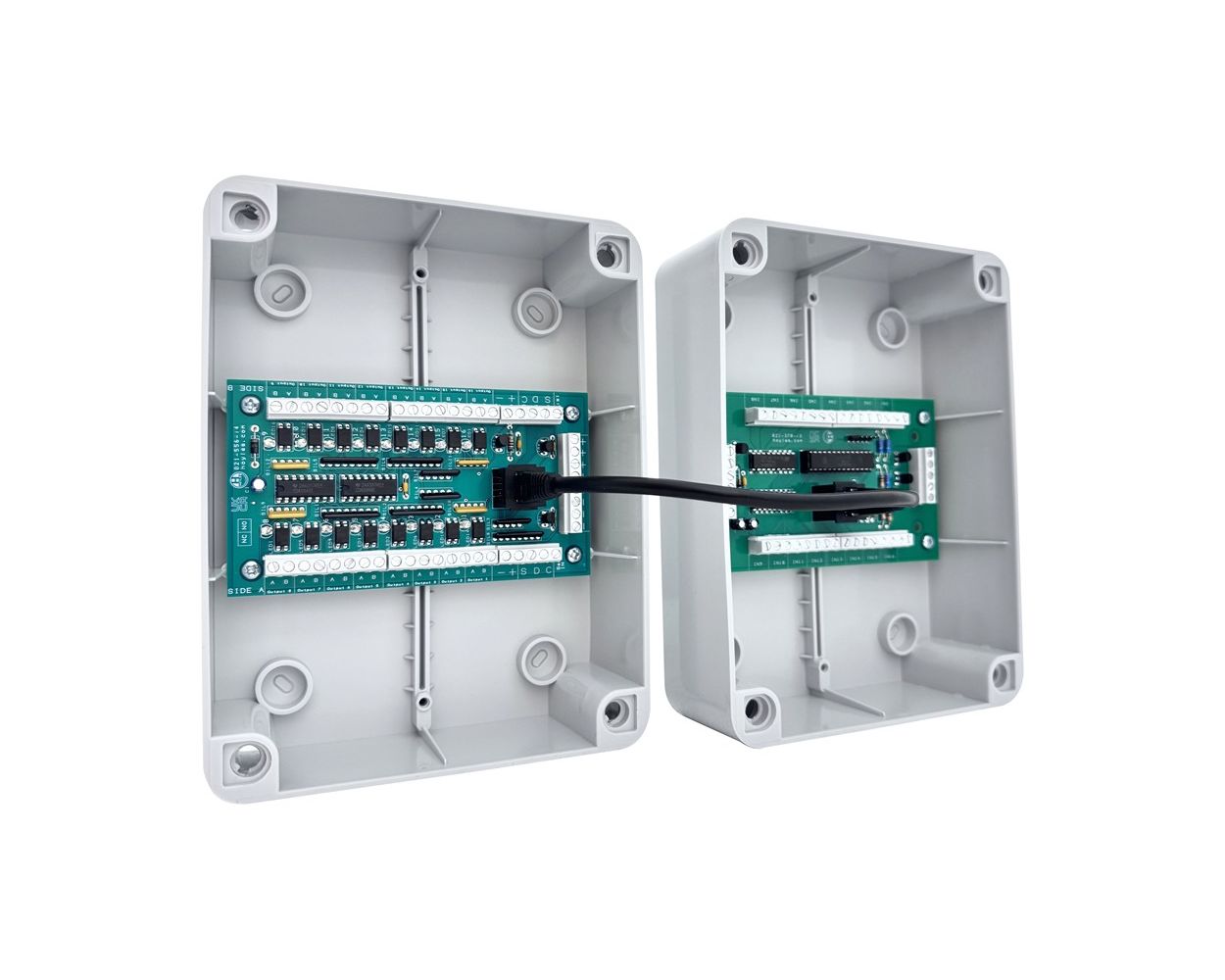

The S370 is a point-to-point remote Input Output module (I/O) comprising two PCBs a 16-channel Normally Open input board and a matching 16-channel Normally Open output board linked by a single serial-data stream over Cat5E/6. With no setup or software required, it delivers true real time switching up to 500m range and per-channel LED status indication.

Specification

• Real time switching up to 500 meter range
• Single cable plug and play connection
• Up to 400mA per output
• No setup required
• For each channel, an LED visually indicates whether that output is active
• IP67 Enclosure
• Supply Voltage 12Vdc
• Indication 1 x LED per output
• Inputs 16 Normally Open
• Outputs 16 Normally Open up to 400mA each
• Connection 1 x Cat5E/6
• Dimensions 190 x 145 x 80mm
• UKCA and CE marked, ROHS compliant Manufactured in the UK

Typical applications
Industrial control panels: Remote actuation of machinery controls, emergency stop circuits, and interlocks without complex networking.
Distributed switch matrices: Centralized monitoring and control of multiple local switch inputs, ideal for operator stations and control rooms.
Building automation: Extension of push-button inputs for lighting, HVAC, or access control panels across large facilities.
Machine safety circuits: Simple, deterministic transfer of safety interlock signals over distance with clear visual indication.
Remote signal extension: Any scenario requiring low-latency, point-to-point switching of up to 16 discrete signals e.g. conveyor line controls, remote alarm panels, or distributed sensor networks.
OEM equipment integration: Embedded within custom machinery to provide modular I/O expansion without integrating Ethernet stacks or proprietary bus systems.
Mobile and temporary installations: Trade-show booths, portable test rigs, or temporary staging setups where rapid deployment and teardown demand minimal wiring.
